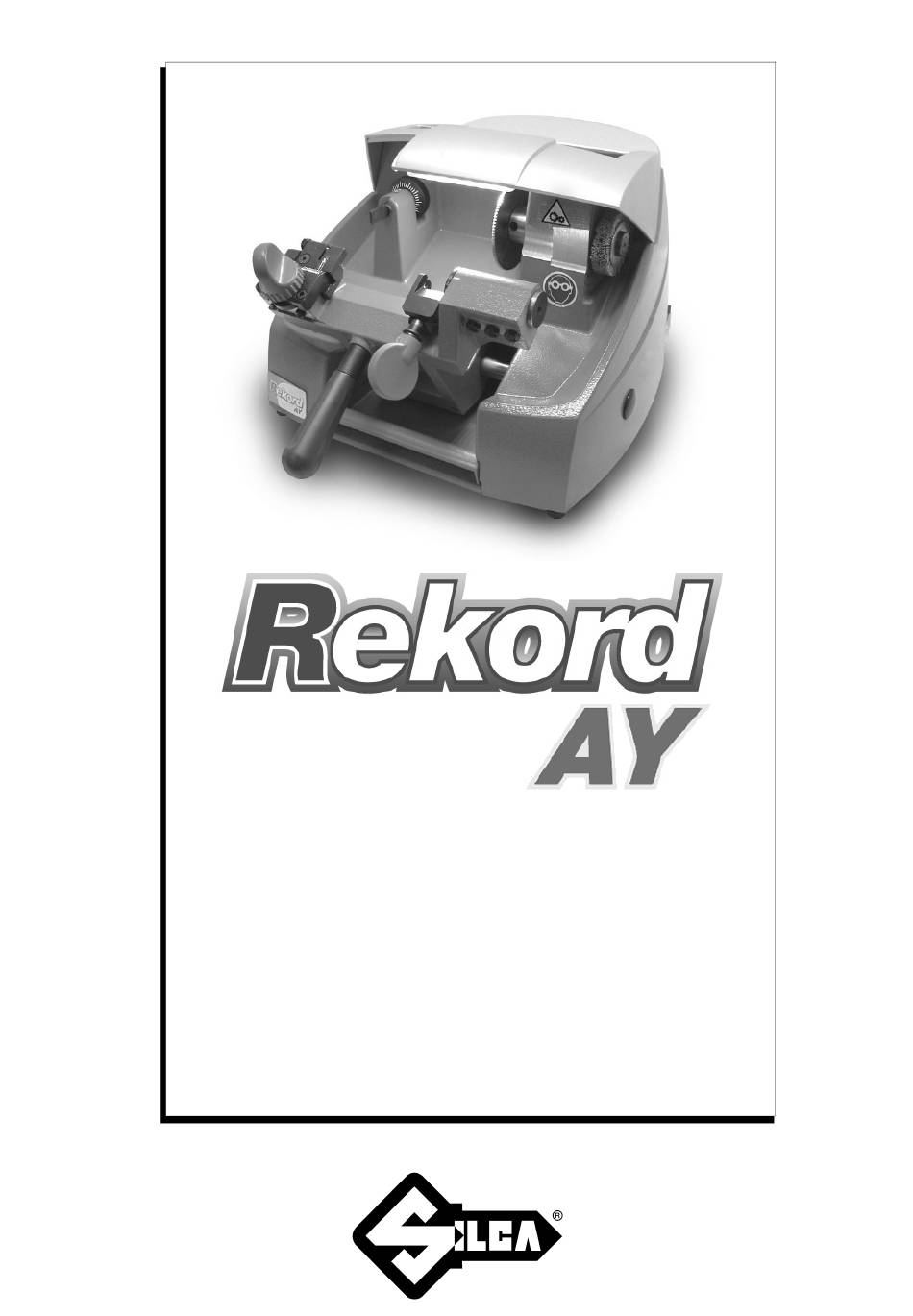

  • Page 1 Operating manual Translation of the original instructions D434249XA vers.
  • Page 2 This manual has been drawn up by SILCA S.p.A. All rights reserved. No part of this publication may be reproduced or used in any form or by any means (photocopying, microfilm or other) without the written permission of SILCA S.p.A. Edition: February 2019 Printed in Vittorio Veneto by SILCA S.p.A.

  • Page 3: Table Of Contents

    INDEX TRANSPORT ....................5 Packing ....................5 Transport ....................5 Unpacking .....................5 Handling the machine ................5 WORKING PARTS ..................6 MACHINE DESCRIPTION ................7 Further Risks ..................8 Technical Data ..................8 Electric circuit ..................8 ACCESSORIES PROVIDED ................9 MACHINE INSTALLATION and PREPARATION ........10 Checking for damage .................10 Environmental conditions ..............10 Removing the blocks ................10 Positioning ..................10...
  • Page 5 REKORD AY GUIDE TO THE MANUAL This manual has been produced to serve as a guide for users of the REKORD AY key-cutting machine. Read it carefully; it is essential if you wish to operate your machine safely and efficiently.
  • Page 6 The material used in the manufacture of this machine and the components employed during use of the machine are not dangerous and their use complies with standards. REKORD AY is a key-cutting machine and must be installed and used according to the rules and specifi cations established by the manufacturer.

  • Page 7: Transport

    Packing The REKORD AY is packed in a strong cardboard box, the dimensions of which are shown in fig. 3, sufficiently robust to be used for storing the machine for long periods. Inside the box the machine is enclosed in two expanded polymer shells. The shells and cardboard box ensure safe transportation and protect the machine and all its parts.

  • Page 8: Working Parts

    REKORD AY Operating manual - English WORKING PARTS Fig. 4 A - coded angle device A1 - rotating centring clamp (position jaw) A2 - lower jaw A3 - tip stop A4 - coded angle device indicator A5 - coded spacing device drum...

  • Page 9: Machine Description

    • Cutting tool The cutting tool (H) is the part of the REKORD AY used for cutting key blanks. The cutting tool is in HSS super rapid steel and is protected by a special cover (M) to ensure safe operation.

  • Page 10: Further Risks

    1350 rpm, consumes approximately 0.18 Kw, absorption 2A (230V/50Hz) 1620 rpm, consumes approximately 0.18 Kw, absorption 2A (230V/60Hz) The main parts of the electric circuit on the REKORD AY are listed below: 1) Main plug with fuses 2) Safety main switch 3) Illuminated switch 4) Motor: 230V a.c.

  • Page 11: Accessories Provided

    REKORD AY ACCESSORIES PROVIDED To ensure trouble-free working with the REKORD AY, it is advisable to always have certain spare parts on hand. It is advisable to always have a tool box containing: tools, cutting tools, brushes, belts and small replacement parts.

  • Page 12: Machine Installation And Preparation

    However, it is always advisable to check that the machine has not suffered any damage. Environmental conditions To ensure that the best use is made of the REKORD AY key-cutting machine, certain parameters must be borne in mind: damp, badly ventilated sites should be avoided.

  • Page 13: Separate Parts

    Operating manual - English REKORD AY Separate parts The separately packed parts must be installed on the REKORD AY key-cutting machine by the purchaser, as follows: Connection wire Connect the key-cutting machine power cable to the electricity mains (fig. 9).

  • Page 14: Connection To The Mains

    REKORD AY Operating manual - English Connection to the mains For the safety of the operator and the machine it is important to ensure that the machine is connected to the proper mains voltage by means of an earthed differential switch.

  • Page 15: Machine Regulation And Utilization

    MACHINE REGULATION AND UTILIZATION Checking and setting The cutting tool on the REKORD AY is the part used to cut the key blanks and should be periodically checked and replaced, if necessary. Every time the cutting tool is changed, and during periodical operational tests, check calibration.
  • Page 16 REKORD AY Operating manual - English Depth setting Depth setting is regulation of the cutting depth (fig. 12 - B). Usually depth setting is not necessary during normal use of the machine. However, if the tracer point is replaced or an optional carriage is used it is advisable to check the depth settings.

  • Page 17: Cutting Operations

    Operating manual - English REKORD AY CUTTING OPERATIONS ATTENTION: to work in complete safety, pay special attention to the following recommendations: • Always work with dry hands. • Check that the machine is properly earthed. • Use the protective goggles, even if the cutting tool is fitted with a protective shield.

  • Page 18: Maintenance

    Although the REKORD AY key-cutting machine does not require special maintenance, it is advisable to check and, if necessary, replace the parts subject to wear, such as: the belt, cutting tool, brush, tracer point.

  • Page 19: Replacing The Brush

    Operating manual - English REKORD AY Replacing the brush When the brush no longer cleans off the burrs it must be replaced as follows: ATTENTION: turn off the machine and disconnect the supply wire. 1) Place the locking rod (provided) in position on the motor shaft.

  • Page 20: Replacing The Tracer Point

    REKORD AY Operating manual - English Fig. 22  FOR VERSIONS WITH BELT TIGHTENERS (P1) (fig. 23) Loosen the screw (P2) and raise the belt tightener in order to remove the belt. Push the belt tightener downwards to tighten the belt.

  • Page 21: Replacing The Fuses

    Operating manual - English REKORD AY Replacing the fuses ATTENTION: turn off the machine and disconnect the supply wire. 1) Unplug the power cable from the key-cutting machine socket. 2) Turn the key-cutting machine round so as to reach the fuse housing on the back.

  • Page 22: Replacing Main Switch

    REKORD AY Operating manual - English Replacing main switch ATTENTION: turn off the machine and disconnect the supply wire. 1) Access the bottom part (see ch. 8.6). 2) Detach the 4 connectors (Y1) paying special attention to their position. 3) Use a screwdriver to lower the internal tabs fixing the switch, then pull it out.

  • Page 23: Replacing Lamp Feed (Transformer)

    Operating manual - English REKORD AY Fig. 31 Fig. 32 Fig. 33 Replacing lamp feed (transformer) ATTENTION: turn off the machine and disconnect the supply wire. 1) Access the bottom part (see ch. 8.6). 2) Loosen the 2 low voltage connector screws (Q1) remove and place in their seat on the new transformer, securing with the 2 screws.

  • Page 24: Replacing Lamp Set/Lamp Protection

    REKORD AY Operating manual - English 8.10 Replacing lamp set/lamp protection Lamp set ATTENTION: turn off the machine and disconnect the supply wire. 1) Remove the two protective pads (Q). 2) Loosen the 3 screws (M1) and remove the top cover (M).

  • Page 25: Replacing Motor On Switch

    Operating manual - English REKORD AY 8.11 Replacing motor on switch ATTENTION: turn off the machine and disconnect the supply wire. 1) Access the bottom part (see ch. 8.6). 2) Detach the 4 connectors (S2) (fig. 38) paying special attention to their position.

  • Page 26: Disposal

    REKORD AY Operating manual - English DISPOSAL For correct disposal please refer to current standards. INFORMATION FOR USERS OF PROFESSIONAL EQUIPMENT From "Actuation of Directive 2012/19/EU regarding Waste Electrical and Elec- tronic Equipment (WEEE)" The symbol of a crossed waste bin found on equipment or its packing indicates that at the end of the product’s useful life it must be collected separately from other waste so that it can be properly treated...

  • Page 27: Assistance

    10.1 How to request service The guarantee attached to REKORD AY key-cutting machines ensures free repairs or replacements of faulty parts within 12 months of purchase. All other service calls must be arranged by the customer with Silca or with a Silca service centre.
  • Page 28 EN 55024:2010 + A1:2015 EN 62471:2008 EN 61000-3-2:2014 EN 62368-1:2014 + EC:2015 + A11:2017 EN 61000-3-3:2013 EN ISO 12100:2010 EN 62233:2008 EN ISO 13849-1:2015 EN ISO 13849-2:2012 Silca S.p.A. R&D Division is authorized to create a Technical File. VITTORIO VENETO, 15/05/2018...
