Silca Unocode 399 Plus Operating Manual page 73

Operating manual - English

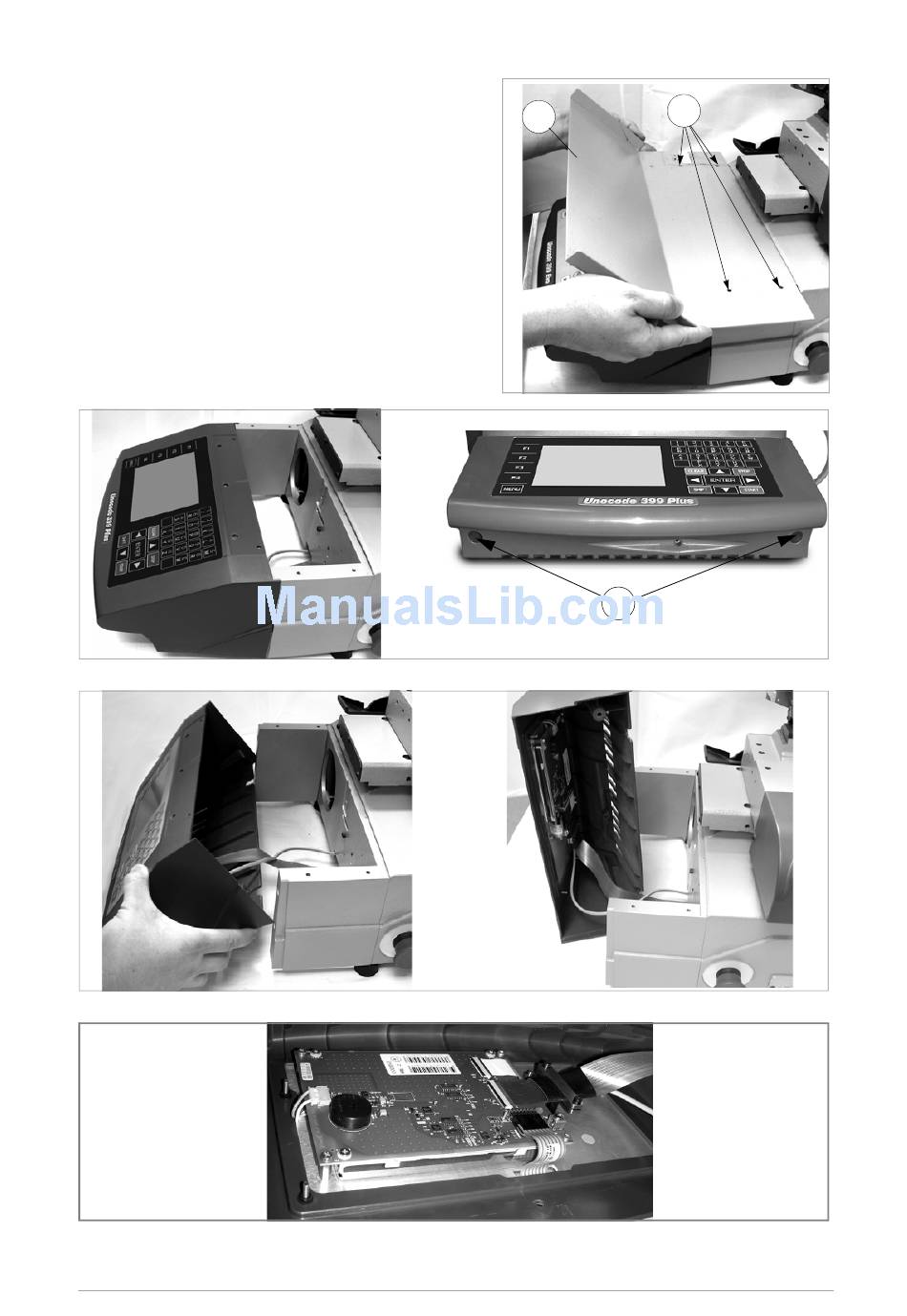

7.7 K
EYBOARD
1) turn the machine off and unplug it from its power supply ca-
ble.
2) loosen the 4 screws (W4) and remove the support (W3).
3) remove the display's support, by unscrewing the 2 (B1)
fixing screws (fig. 53 and fig. 54).
4) detach the flat cable and ground wire from the keyboard
(fig. 55).
5) unscrew the keyboard's fixing nuts and remove the
keyboard from its support.
6) fit the new keyboard/display, repeating the operations
described above, backwards.
Fig. 53
Fig. 54
Fig. 55
/
DISPLAY REPLACEMENT
Copyright Silca 2016
W3
Fig. 52
B1
Unocode 399 PLUS
W4
69
