Silca Unocode 399 Plus Operating Manual page 51

Operating manual - English
Press ENTER to continue, the display shows:

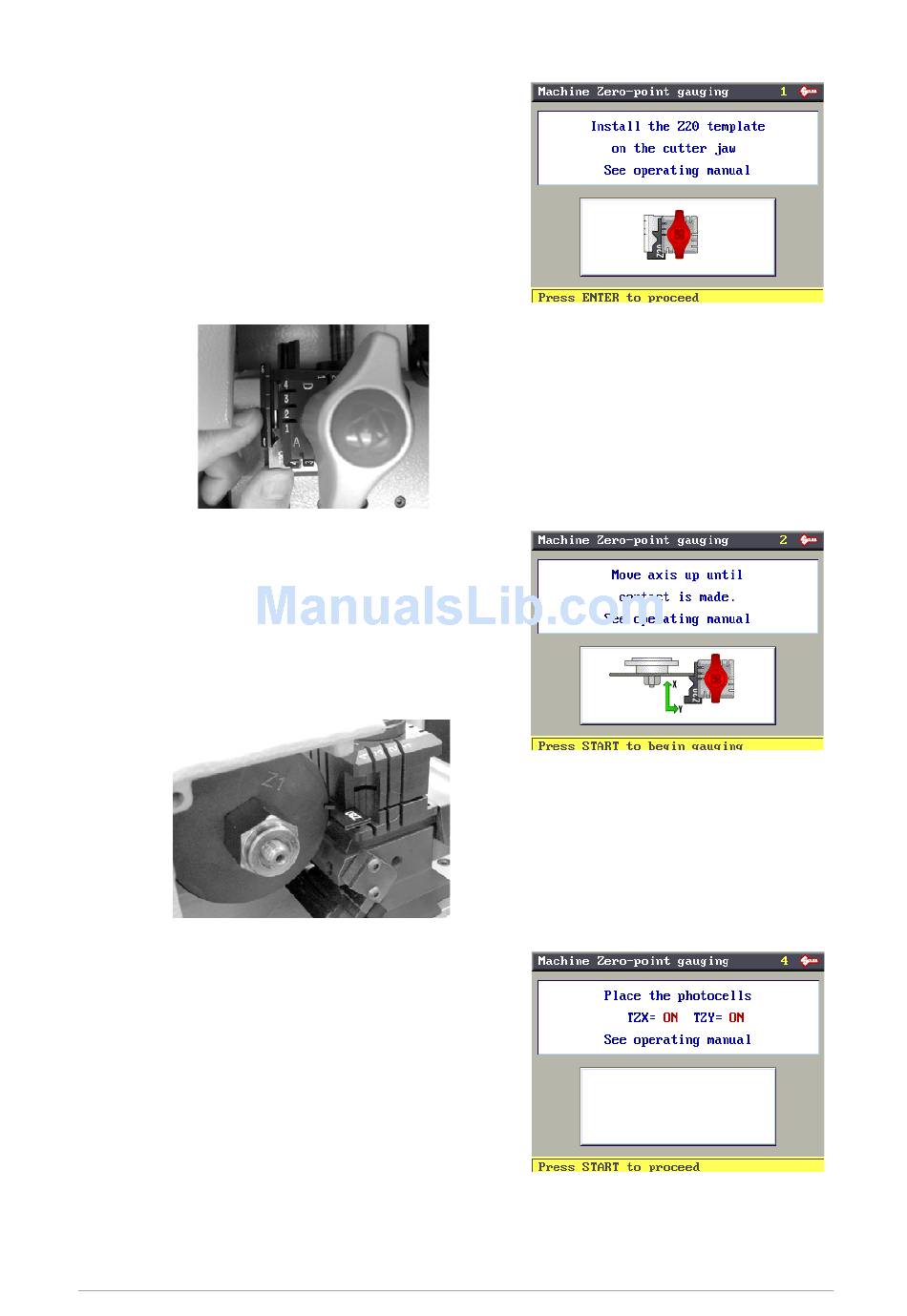

Read the instructions on the display and fit the Z20
template into the cutter side of the clamp, with Stop
0 as the reference.
Fig. 34
Lower the gauge and press ENTER to continue.
The display shows:
Read the instructions on the display, move the
carriages manually so that the Z20 template is
taken into contact with the Z1 template (fig. 35) in
the vertical zone after the stop, up against the front
and up against the stem.
Fig. 35
When the given position is reached, lower the
safety shield and press START.
First the display will show: "Positioning" (**)
And then:
Copyright Silca 2016
Unocode 399 PLUS
47
