Connector Description

5.1

Power Supply Connectors

The conga-IA5 provides a DC power jack (optional for industrial variants) and a 4-pin ATX connector. Optionally, the conga-IT6/COMe can
provide SBM connectors.
3
5.1.1

DC Power Jack

The commercial conga-IA5 variants provide a DC power jack (X43). Optionally, the industrial variants can also provide this connector. The
supported power supply is defined in section 2.4 "Supply Voltage Power".

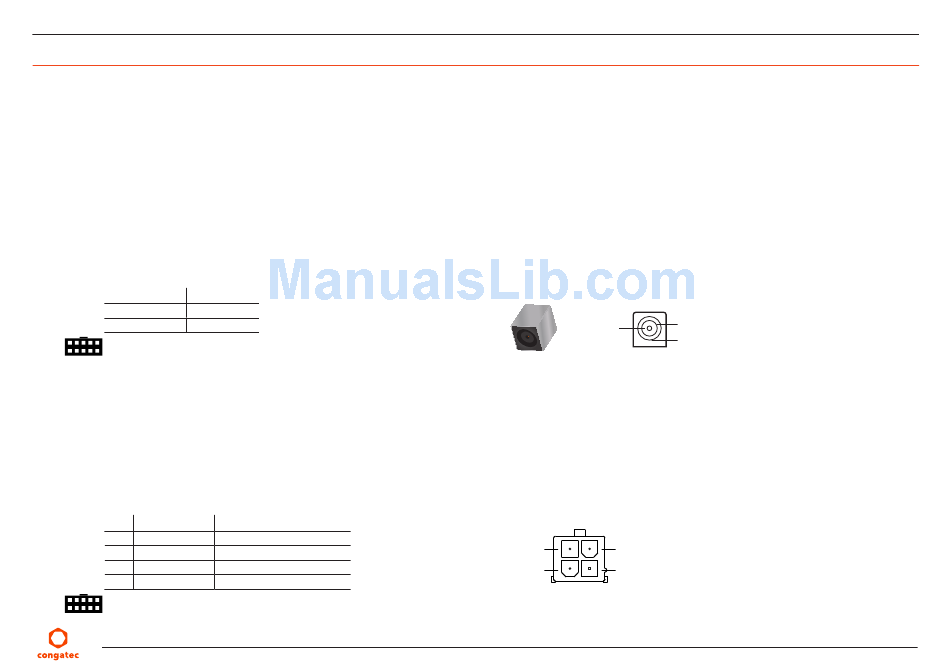

Table 11 X43 Pinout Description
Pin Function
Inner Shell +12 - 24V
Outer Shell GND
Connector Type
X43: DC power jack, 7.4x5.1mm (Singatron 2DC1003-000111)
5.1.2

ATX 4-Pin Connector

The conga-IA5 offers a straight 4-pin power connector (X44). Optionally, a right angle 4-pin power connector (X48) can be placed instead. The
supported power supply is defined in section 2.4 "Supply Voltage Power".
Table 12 X44 Pinout Description
Pin Signal
1 GND
2 GND
3 +12V - 24V
4 +12V - 24V
Connector Type
X44: 2x2 pins, 4.2mm pitch (PN: 41500603)
Copyright © 2017 congatec AG
Description
Ground
Ground
Power supply +12V-24V
Power supply +12V-24V
X43
DC Plug
inner
+
center
-
outer
X44
3
4
1
2
