5.8.3.1

Backlight Power Header

The conga-IA5 provides a backlight power header (X32). The power budget of BKLT_PWR (pins 3 and 4) is limited to 1.5A.

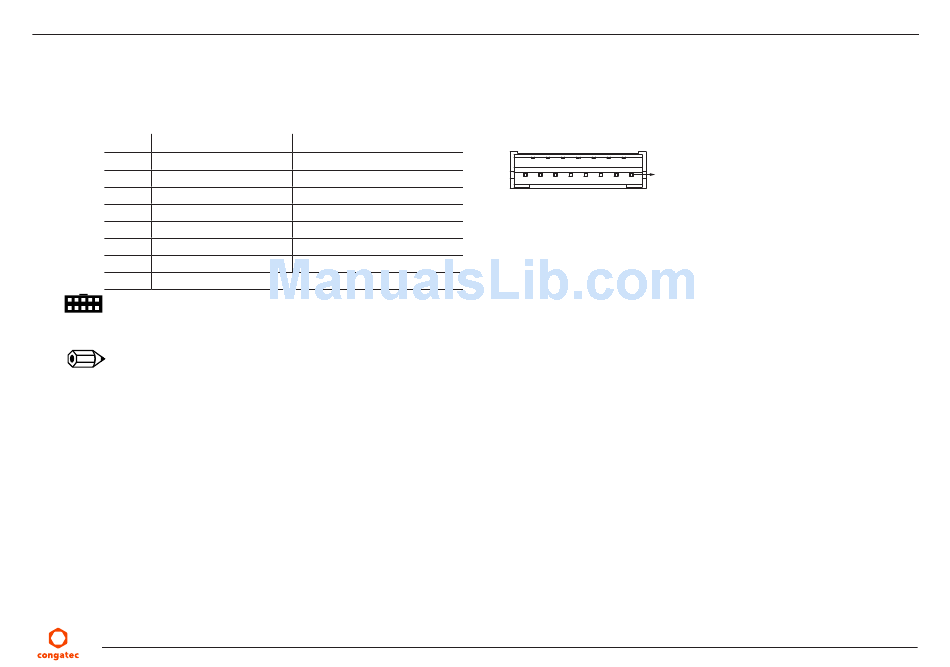

Table 34 X32 Pinout Description
Pin Signal Name
1 LVDS_BKLT_EN
2 LVDS_BKLT_CTRL
3 BKLT_PWR
4 BKLT_PWR
5 GND
6 GND
7 Brightness_Up
8 Brightness_Down
Connector Type
X32: 8x1 pins, 2mm pitch
Note
congatec offers an open-end cable for this interface (see section 1.2.2 "Optional Accessories"). For more information, contact the congatec
technical solution department.
Copyright © 2017 congatec AG
Description
Backlight enable
Backlight control
Backlight inverter power
Backlight inverter power
Backlight/brightness ground
Backlight/brightness ground
Flat panel brightness increase
Flat panel brightness decrease
X32
Pin 1
