Additional Features

6.1

Front Panel Header

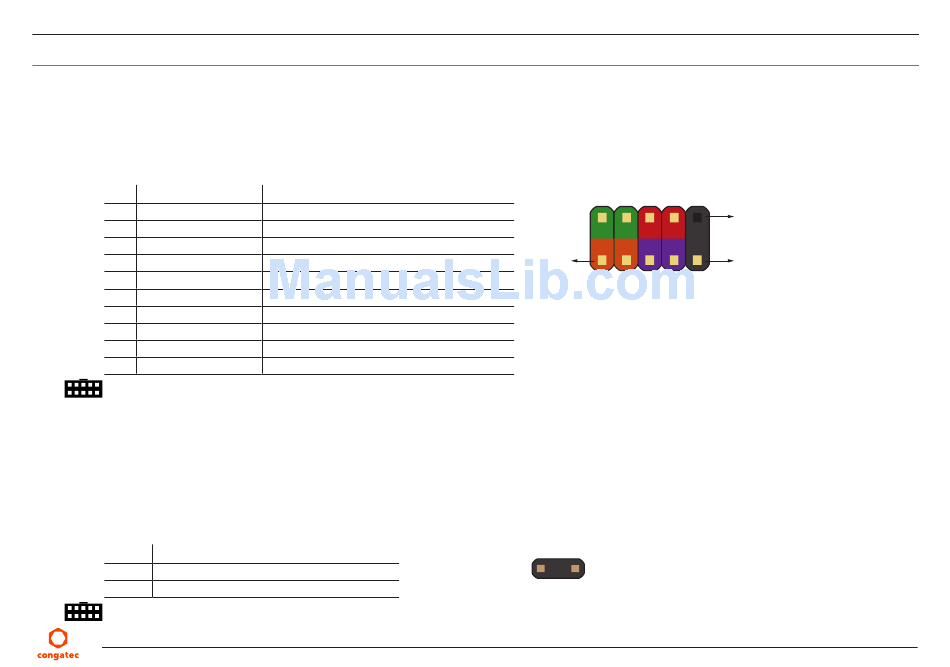

The conga-IA5 provides a front panel header (X39).
Table 41 X39 Pinout Description
Pin Function
1 HDD_POWER_LED+
2 FP_LED+
3 SATA_ACT#
4 FP_LED-
5 GND
6 PWRBTN#
7 SYS_RST#
8 GND
9 3.3V
10 KEY
Connector Type
X39: 5x2 pins, 2.54mm pitch
6.2

Chassis Intrusion Header

The conga-IA5 provides chassis intrusion header (X23).
Table 42 X23 Pinout Description
Pin Function
1 GND
2 CASEOPEN#
Connector Type
X23: 2x1 pins, 2.54mm pitch
