Uart Headers; Table 23 X24 Pinout Description; Table 24 X25 Pinout Description - Congatec conga-IA5 User Manual

5.4.1

UART Headers

The conga-IA5 provides two UART headers (X24, X25) via a Super IO (NCT6102D). The UART ports can be used under Windows 10 and Linux
without a special driver. UART header X24 (COM 0) fully supports RS-232. UART header X25 (COM 1) supports RS232 (Rx and Tx only), RS422
and RS485. Optionally, UART header X25 can be used for ccTalk instead.

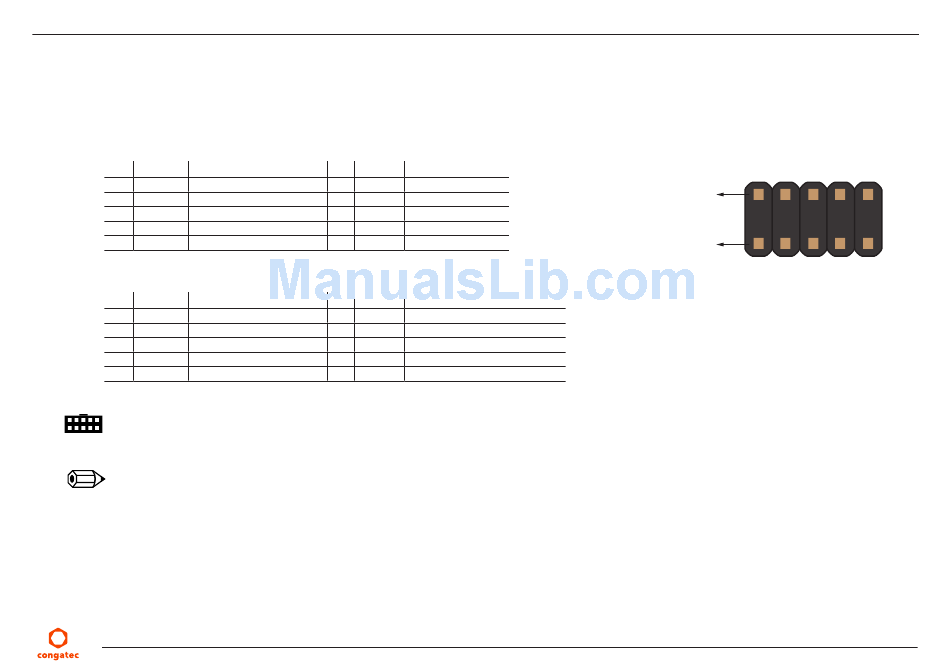

Table 23 X24 Pinout Description
Pin Signal Description
1 DCD Data Carrier Detect
3 TXD Transmit Data
5 GND Ground
7 RTS Request to Send
9 RI Ring Indicator
Table 24 X25 Pinout Description
Pin Signal Description
1 N.C Not connected
3 TX- Transfer -
5 GND Ground
7 TX+ Transfer +
9 N.C Not connected
Connector Type
X24, X25: 5x2 pins, 2.54mm pitch
Note
The conga-IA5 offers an optional ccTALK interface. This interface uses transmit and receive signals of COM 1. If this option is implemented,
COM 1 will not be available. congatec offers cables for the COM ports (see section 1.2.2 "Optional Accessories"). For more information,
contact congatec technical solution department.
Copyright © 2017 congatec AG
Pin Signal Description
2 RXD Received Data
4 DTR Data Terminal Ready
6 DSR Data Set Ready
8 CTS Clear to Send
10 N.C Not connected
Pin Signal Description
2 RX- Receive -
4 N.C Not connected
6 N.C Not connected
8 RX+ Receive +
10 N.C Not connected
IA50m10
X24, X25
Pin 2
Pin 1
30/59
