5

Connector Description

5.1

Power Supply Connectors

The conga-PA5 provides a DC power jack (optional for industrail variants), a 2-pin power connector, and a USB Type-C™ port for power supply.
5.1.1

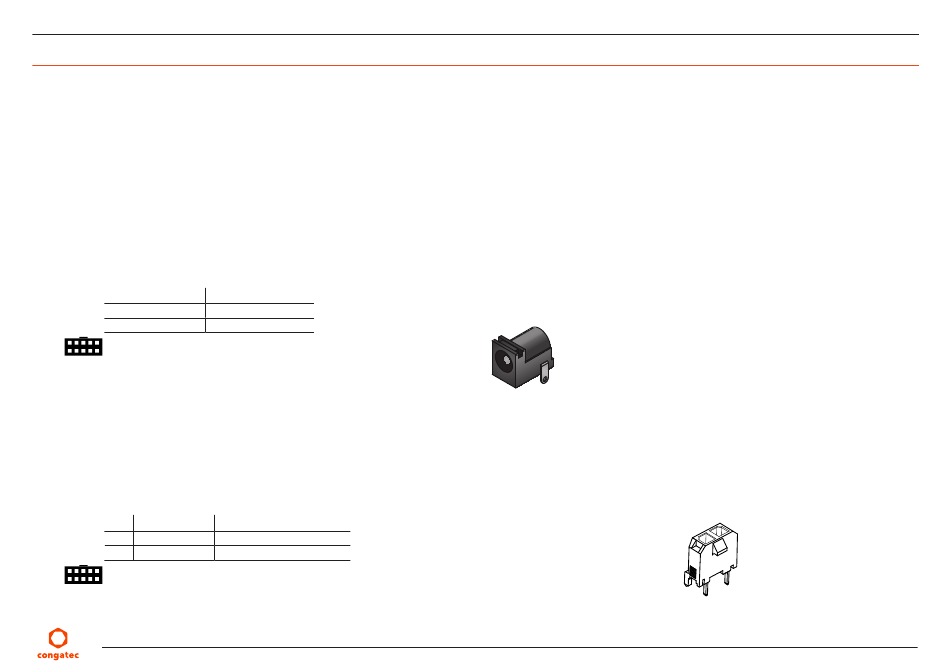

DC Power Jack

The commercial conga-PA5 variants provide a DC power jack (X21), protected against short transient overvoltage and ESD. Optionally,
the industrial conga-PA5 variants can also provide a DC power jack. Optionally, congatec can also assemble a DC power jack with locking
mechanism, including screw type connectors. The supported power supply is defined in section 2.4 "Supply Voltage Power".
Table 10 X21 Pinout Description
Pin Function
Center Pin +12V
Sleeve/Barrel GND
Connector Type
X21: DC power jack, 5.5x2.5 mm diameter (CUI PJ-002BH)
5.1.2

2-Pin Power Connector

The conga-PA5 provides a 2-pin power connector (X22), protected against short transient overvoltage. The supported power supply is defined
in section 2.4 "Supply Voltage Power". Alternatively, you can use this connector as a +12V power output.
Table 11 X22 Pinout Description
Pin Signal
1 +12V
2 GND
Connector Type
X22: 2x1 pins, 3.00 mm pitch (Molex 43650-0217); Possible Mating Connector: Molex 436450-0200
Copyright © 2017 congatec GmbH
Description
Power Supply +12V
Ground
X21
PA50m112
X22
2
1
