5.5.1

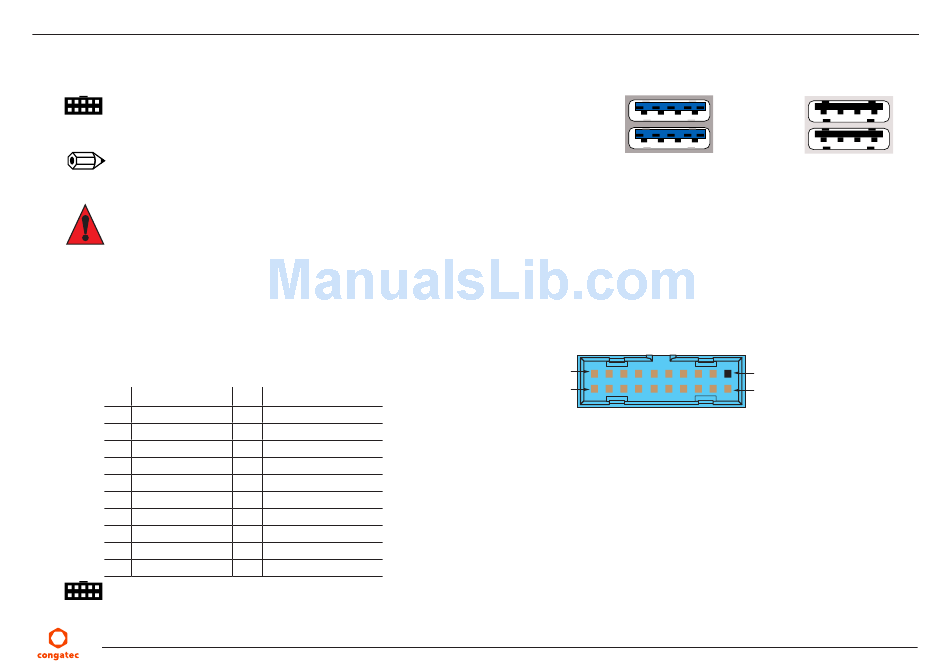

USB 2.0 Ports

The conga-IA5 provides two USB 2.0 ports (X16) and two USB 3.0 ports (X17).
Connector Type
X16, X17: Two type A, dual port USB connectors
Note
The USB 2.0 ports have a maximum current of 0.5A. The USB 3.0 ports have a maximum current of 1.0A.
Caution
The maximum cable length of a USB 2.0 device connected to any port shall not exceed 3 meters in order to comply to EN 55024:2010.
5.5.2

USB 3.0 Header

The conga-IA5 provides one USB 3.0 header (X14) with support for OTG.
Table 28 X12 Pinout Description
Pin Signal
1 N.C
2 N.C
3 N.C
4 GND
5 N.C
6 N.C
7 GND
8 N.C
9 N.C
10 ID
Connector Type
X14: 2x10 pins, 2.54mm pitch
