5.8.3.2

Backlight/Panel Power Selection

The conga-IA5 supports different voltages for the panel and backlight connectors. With jumper X31, you can set the backlight voltage to 5V or
12V. With jumper X30, you can set the panel voltage to 3.3V, 5V or 12V.
Table 35 X31 Pinout Description
Pin Signal Name
1 No Pin
2 N.C
3 12V
4 Selected backlight power
5 No Pin
6 5V
Table 36 X30 Pinout Description
Pin Signal Name
1 No Pin
2 3.3V
3 12V
4 Selected LCD power
5 No Pin
6 5V
Connector Type
X30, X31: 2x3 pins (pin 1 and 5 removed), 2.54mm pitch
Copyright © 2017 congatec AG

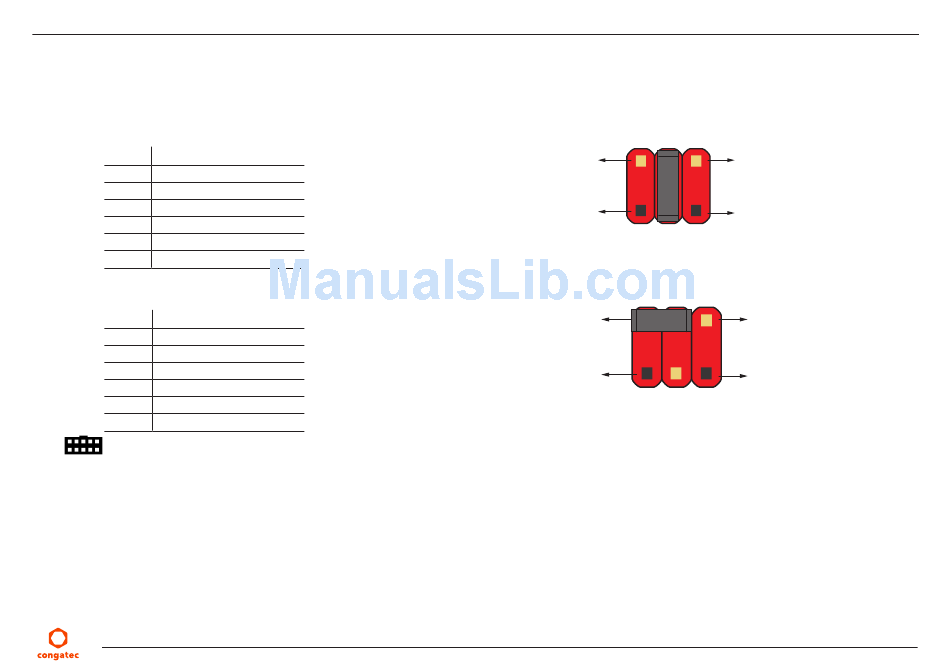

X31
Pin 2
No Pin
Default Settings:
Pins 3 and 4
X30
Pin 2
No Pin
Default Settings:
Pins 2 and 4
IA50m10
Pin 6
No Pin
Pin 6
No Pin
