signs that channel to the Preview bus; pressing it again
removes the channel from Preview. To enable an op-
erator to quickly listen to various sources, the Preview
function is interlocked: pressing
nel will remove any other channel from Preview
mode.
If you want to preview multiple channels,
pressing and holding any
the interlock; other sources can be added to the
Preview mix by pressing them. Conversely, chan-
nels can be removed from a multiple Preview se-
lection by pressing and holding any lit
key and deselecting the individual channels you
wish to remove from Preview. A momentary press
of any lit
key will remove all channels
Preview
from Preview.
The interlock option for Preview can be dis-
abled in any Show Profile's Monitor section so
that users can gang preview sources without the
need to press and hold the preview button.
The audio from the Preview bus feeds any
speakers dedicated to Preview, and can also be
routed to the operator's headphones if desired.
Preview speakers will be muted whenever the
board operator's microphone is
to the Preview or Record buses.
New Feature: If an operator presses Talk on
a fader to which a Phone source is assigned
and, while holding it, presses the Preview
button, both will latch on, makeing it easy to
have a hands-free off-line chat using the CR
Mic. Pushing either one clears both.
•
Fader
The fader controls the volume of the input
source. There are two modes for the fader:
and
start
fader-normal:
1.
When the channel is used in
pushing the fader all the way to the bottom of its
travel turns the module off, and sends appropriate
logic commands to source equipment. Moving the
on any chan-
Preview
key disables
Preview
Preview
, or is assigned
ON
Phone Module
Fader Channel
fader-
mode,
fader-start
©2008 Axia Audio — Rev. 3.0
fader up turns the channel on and sends logic com-
mands. In
fader-start
act more as indicators of channel status; the
will not turn the channel on if the fader is at the bot-
tom of its travel.
2.
In
fader-normal
start/stop commands follow the channel ON/
OFF buttons independent of fader position.
For information on how to switch between
fader-start
Monitor Module Controls section later in this
chapter.
•
On and Off Keys
When the channel is in
the
key (
On
key (
) turns it off. The channel
n
functions also provide logic (start and stop pulses,
monitor muting, etc.) appropriate to the selected
source.
If a control-room mic is assigned to a fader,
the CR monitors and Preview speakers will mute
when that fader is turned on. and when sources
are Previewed. If a fader is hosting a microphone
source, pressing the
already on mutes the channel, providing a "cough"
function, until the button is released.
New Feature: In fader-start mode, holding
the Off button while moving the fader up
disables the usual GPIO start command. The
On button may be later used to issue the
command.
4-Phone Module Channel Controls
You can assign any type of source to any El-

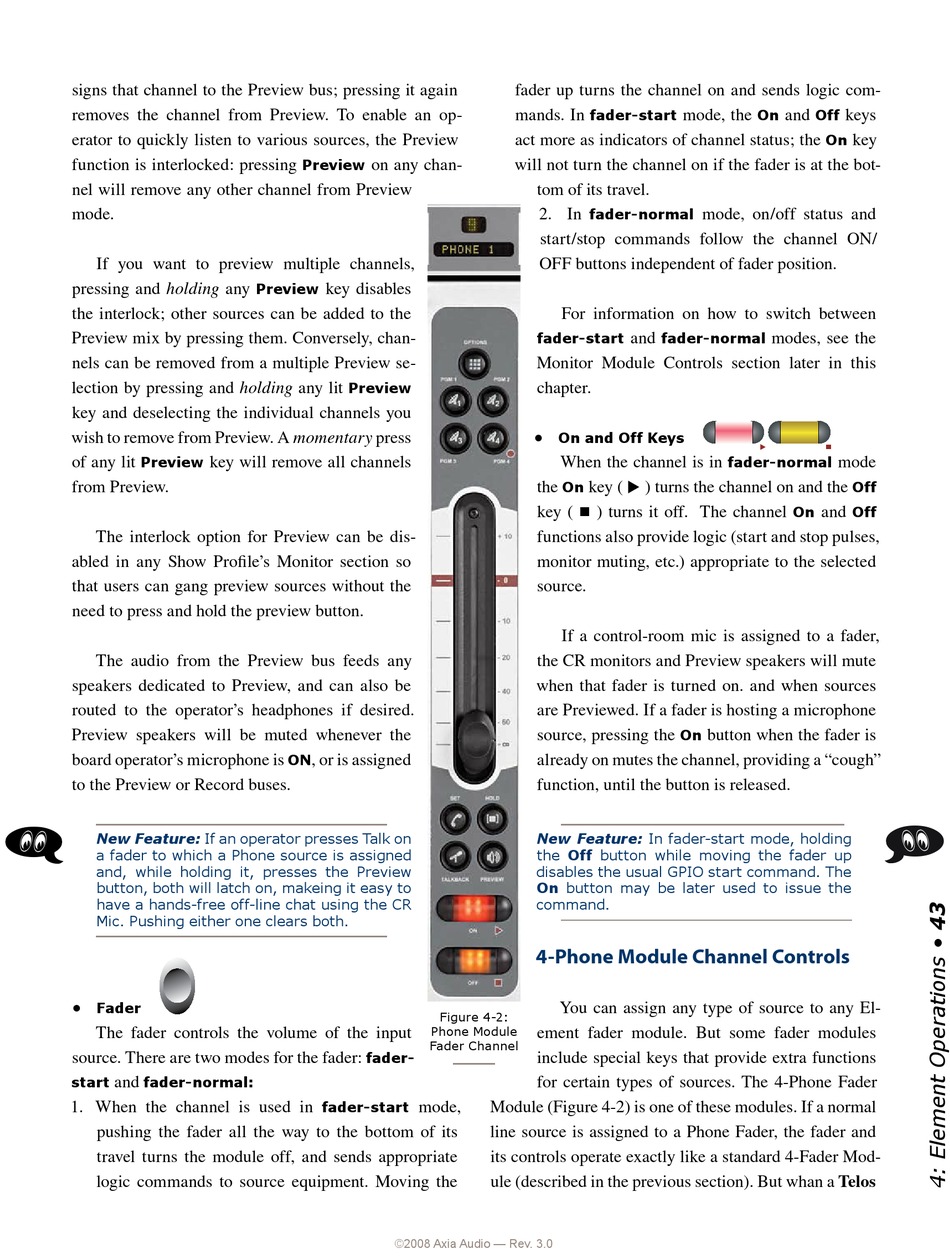

Figure 4-2:
ement fader module. But some fader modules
include special keys that provide extra functions
for certain types of sources. The 4-Phone Fader
Module (Figure 4-2) is one of these modules. If a normal
line source is assigned to a Phone Fader, the fader and
its controls operate exactly like a standard 4-Fader Mod-
ule (described in the previous section). But whan a Telos
mode, the
and
On
mode, on/off status and
and
modes, see the
fader-normal
fader-normal
) turns the channel on and the
u
On
button when the fader is
On
keys
Off
key
On
mode
Off
and
Off
