the Source Profile and adjustments cannot be
made. In Figure 4-10, the padlock appears just
below the soundfield representation, above the
Mode indicator. The onscreen Mode SoftKnob
is also "grayed out" to show that this function
is unavailable.
Operators cannot "unlock" locked functions;
if you wish to make locked functions available,
simply modify the source profile to allow them
and when the source is reloaded to the console,
the padlock will have disappeared.
»
Rotating the
Function/Exit
tween
Pan, Mode
active control is highlighted onscreen, and the
labels of the SoftKnobs change depending on
which function is active.
*
When the
Pan/Balance
tating the SoftKnob adjusts the the Pan set-
ting for mono sources and the Balance setting
for stereo sources. Push the knob to
your new settings.
*
When the
Mode
SoftKnob lets the board op switch source au-
dio between
Stereo
(left source channel fed to L/R input),
(right source channel fed to L/R input) and
(left and right source channels summed
Sum
to mono and fed to L/R input). Push to
the new setting.
»
When the
mode is active:
Phase
*
If the selected source is stereo, rotating this
control lets the board op compensate for out-
of-phase audio sources.
in-phase sources;
of the left input channel only,
verts the phase of the right input channel only,
and
Invert Both
reo channels. Press to
*
If the selected source is in mono, the choices
are
and
Normal
the new setting.
»
Pressing the
Function/Exit
you to the Channel Options screen.
•
Aux Sends Controls
Element has four stereo Aux buses that can be used
as utility buses for mixing, for constructing custom
knob selects be-
and
controls. The
Phase
mode is active, ro-
Take
mode is active, rotating the
(discrete left/right),
Left
Right
Take
is used for
Normal
inverts the phase
Inv Left
in-
Inv Right
reverses phase of both ste-
the new setting.
Take
only. Press to
Invert
Take
SoftKnob returns
©2008 Axia Audio — Rev. 3.0

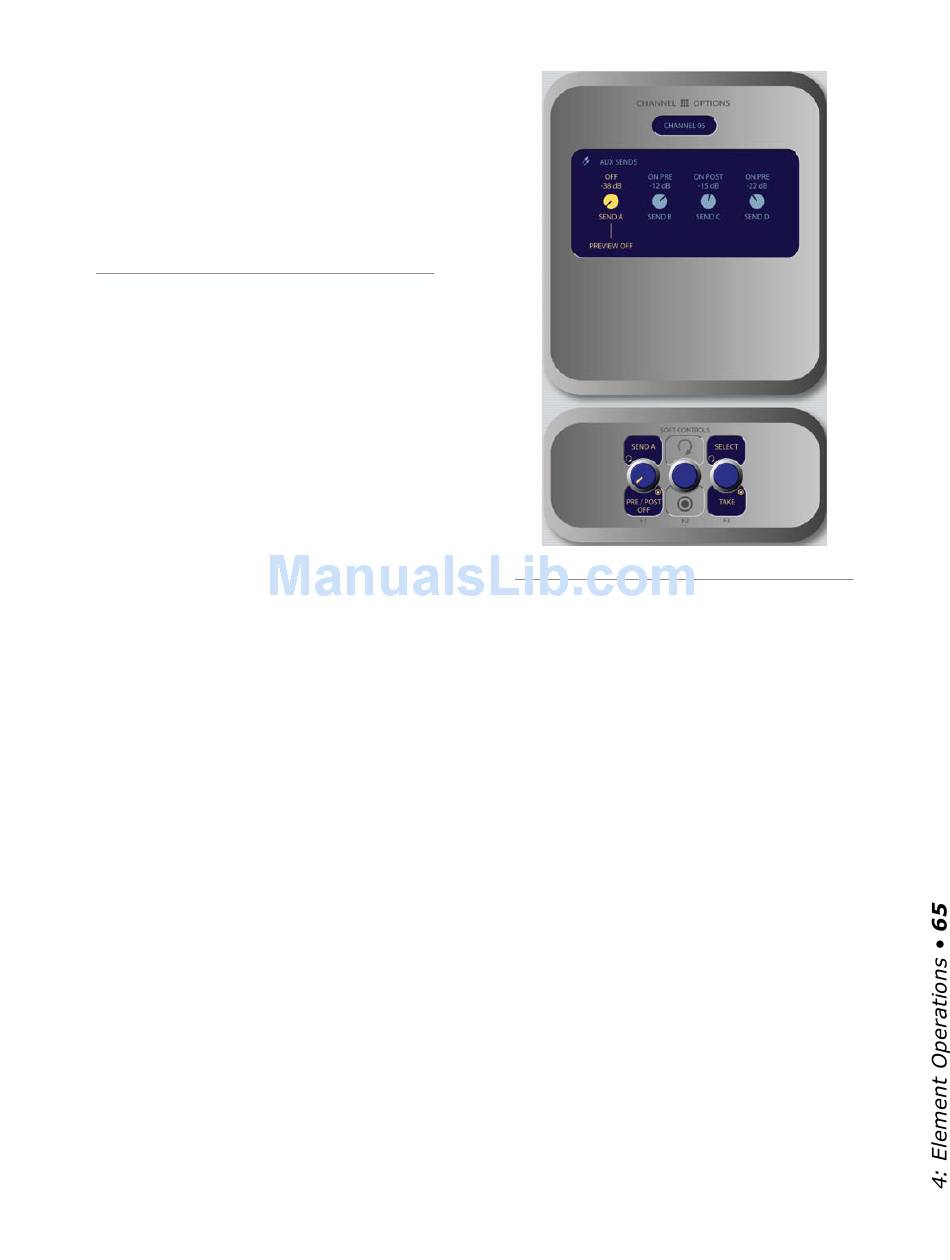

Figure 4-26: Aux Sends menu screen.
IFB mixes, or as effects buses for production. Pressing
the
SoftKnob when the
Select
highlighted takes the operator to the Aux Sends control
screen.
»
Rotating the
Select/Exit
Aux Send A, B, C
highlighted onscreen, and the labels of the Soft-
Knobs change depending on which Send is ac-
tive.
»
Send A/B/C/D / Pre/Post Fader:
*
Rotate this knob to adjust the level of the
audio you'll be sending to the selected Aux
Send bus.
*
Pushing the Knob to toggle the activity state
of the selected
Send.
the onscreen display above.
›
sends the source assigned to the
On Pre
fader to the selected Aux Send bus prior
to having its gain adjusted by the fader
(fixed level).
›
sends the source assigned to the
On Post
fader to the selected Aux Send bus after
having its gain adjusted by the fader (vari-
able level).
boxes are
Aux Sends
knob selects between
&
. The active control is
D
The state is indicated in
