at the top of the screen:

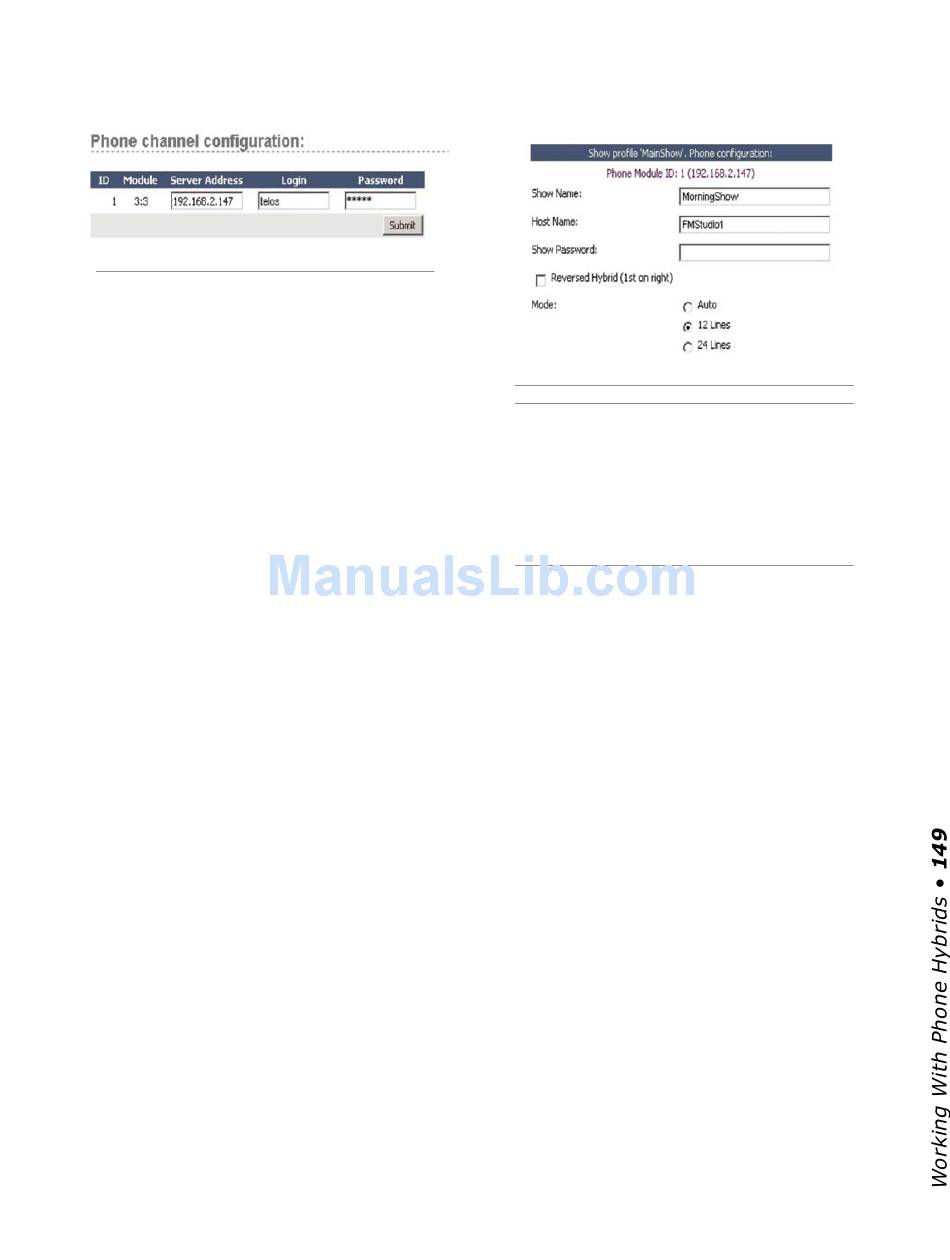

Figure D-6: Phone configuration box
If you don't see this, or if the ID or Module infor-
mation is incorrect, you will need to "Capture" your
current module configuration. This is normally done
at the factory, but if you have added the phone mod-
ule yourself, you will need to take care of this be-
fore proceeding. To capture, press and hold the
key on Element's Navigation Module for 5 seconds,
until
appears in the source name displays.
CAPTURE
On the phone module, you will see the assigned ID
number in the upper left line icon position. You can
change this by pushing the adjacent line button. End
Capture Mode by pressing the
igation Module.
In Figure D-6 above, the "Module" field displays
both the module type and the position. The first digit,
"Type", will be "3" to identify a Call Controler mod-
ule. The next digit is the module number as set by the
rotary switch on the back of the module.
8.
Enter the IP address you assigned your 2101 Hub in
the
field, plus the 2101
Server Address
the
. you created for this studio back in
Password
Step 4.
9.
Now, we must associate a 2101 "show" with an Ele-
ment Show Profile. In your Web browser, navigate to
Element's "Source and Profiles/Configuration/Show
Profiles" web page. Select the Element Show Profile
you wish to configure, and click on
Enter one of the 2101 Show Names that you created
when setting up the Hub and its Host Name, either by
typing them in, or by clicking on the "Phone Module
ID" link and choosing it from the drop-down list. If
a Show Password is required, enter it here as well.
(By default, show passwords are not assigned; un-
less you have specifically assigned a show password,
Help
key on the Nav-
Enter
and
Login
.
Phone
©2008 Axia Audio — Rev. 3.0
leave this field blank.)
Figure D-7: Configuring a 2101 "show"
Note: Hybrid 1 is controlled by the left row of
telephone line selection buttons, and Hybrid 2 by
the right row. Normally, Hybrid 1 is the system's
"main" hybrid, and is tied to the Call Controller's
"Next" button, which advances through the lines
with each press. If you wish to use Hybrid 2 as
the "main" hybrid and have it controlled by the
"Next" button, click the "Reversed Hybrid" box
as shown in Figure D-2 above.
The 2101 can be used in either 12 or 24 line mode.
Select either "Auto," "12 Lines" or "24 Lines" with
the Mode Selection radio buttons. Selecting "Auto"
will set the mode for the maximum number of lines
that the 2101 system permits for this show.
10.
Click "Save" and use your Web browser to navigate
back to the "Element Sources & Profiles Configu-
ration/Source Profiles/Create New Source Profile"
web page. Choose the "Primary Source" audio chan-
nel that you entered in the Analog Node. Give it an
Element source name, such as "Hybrid 1", and select
"Phone" for Source Type. Please refer to Figure D-3
to see the Source Profile screen.
The Source Profile for the hybrid should be filled in
as follows:
•
It is not necessary to enter the
address here, since you have already done it globally.
Leave this field blank.
•
The
Phone Module ID
multiple phone modules that you may have installed.
Normally, you will have just one, so select
drop-down box.
•
For
select the hybrid that corresponds to
Hybrid Nr.
Phone Hybrid IP
field lets you select from the
from the
1
