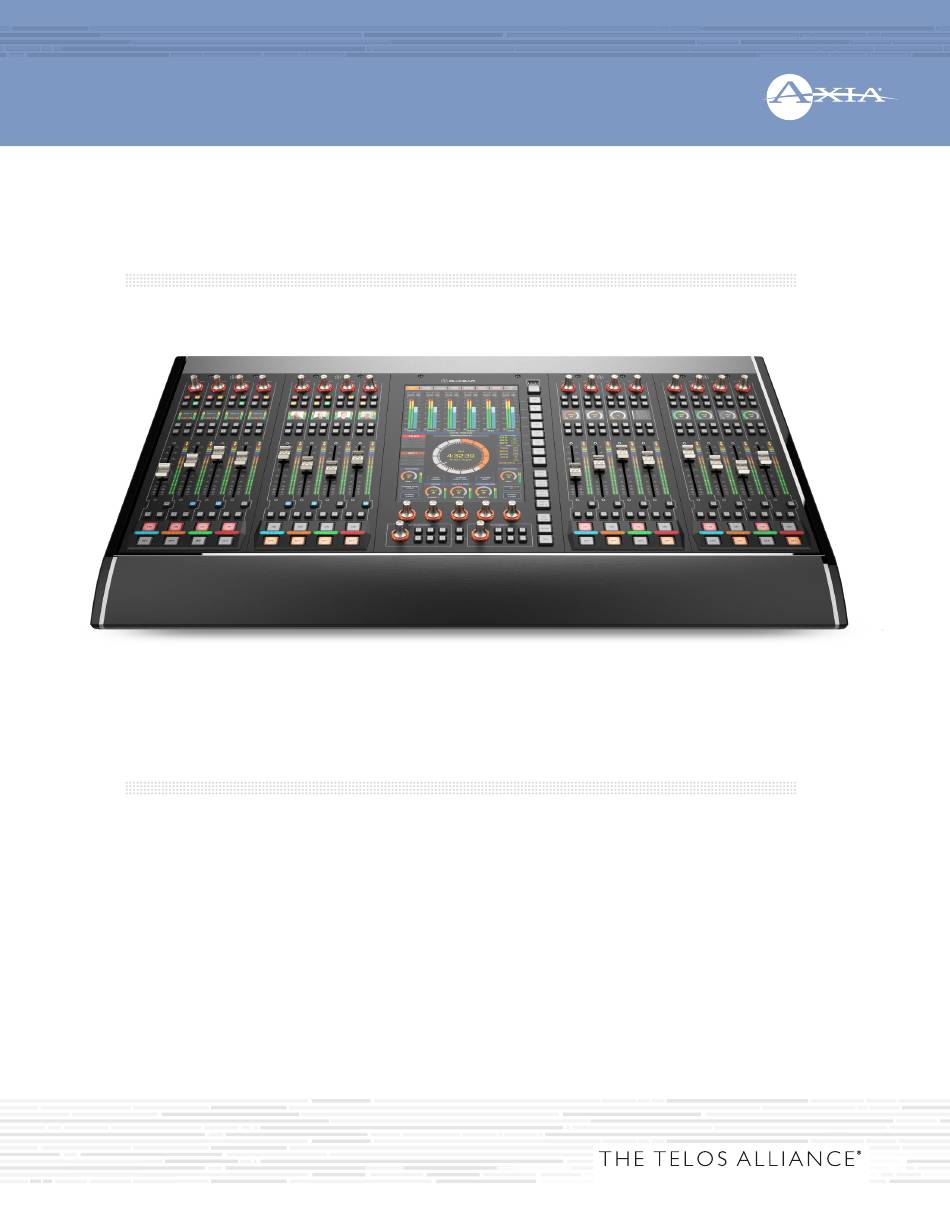

QUICK-START INSTALLATION GUIDE
QUICK-START INSTALLATION GUIDE
Axia
Quasar
®
AoIP Mixing Console
Welcome to Axia Quasar
Setup of a networked audio mixing console, though we have made it as easy as possible, is challenging
to condense into a few pages. The following material is intended to help the busy engineer get up and
running in a few minutes.
This Quickstart Guide assumes a few things:
• That the reader has some knowledge of network basics and terminology,
• That the reader is familiar with other Axia Livewire products,
• And that the reader has a correctly configured network switch
We will take you through the basic steps to configure your new Quasar and have you up and running in no
time. But before we get started, let's make sure you are familiar with the Quasar System anatomy.
TelosAlliance.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Quasar and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axia Quasar

Summary of Contents for Axia Quasar

  • Page 1 • And that the reader has a correctly configured network switch We will take you through the basic steps to configure your new Quasar and have you up and running in no time. But before we get started, let’s make sure you are familiar with the Quasar System anatomy.
  • Page 2 Then, let’s check your installation type and make sure you have what you need. Installation type: You could be installing a Table-Top or Flush-Mount console, with single or split frame. Only the Quasar Engine can be connected to the Quasar Surface. This consists in an industrial rackmount server platform, with redundant PSU and fans, so it will have to go in a machine room.

  • Page 3: Initial Setup

    This will require a specific configuration of the switch ports. Please refer to the user manual for details about this option. 3. Connect an Ethernet cable to the Livewire port (F) on the Quasar Engine, and connect the other end to a configured Gigabit Ethernet switch.
  • Page 4 QUICK-START INSTALLATION GUIDE 4. Connect the Quasar surface Power Supply Unit (or Units, if you have more than one installed in your frame) to AC Mains (C) using the Axia Power Supply power cable (or cables) provided. If you have more than one power supply installed and choice of standard and uninterrupted mains in your studio, it is a good idea to connect each PSU to a different type of Mains supply.
  • Page 5 QUICK-START INSTALLATION GUIDE Below you can associate your Quasar Engine to the surface, by entering the Engine’s IP address. Addresses can be entered directly from the touchscreen, or by using the rotary encoders below the display. A configured gateway is optional, and not required for normal console operation in a closed network.
  • Page 6 2. Connect mains cables to your Quasar Engine. Push the ON/OFF (D) button on the front panel. At the end of the boot process, the four LEDs to the left of the front display could indicate errors due to missing sync, console not yet connected, or connection of a single Power Supply only.
  • Page 7 Now please double-check that the warning message above the clock on the MTS Home page is disappeared. The Quasar Surface is now recognized by the network and linked to the Quasar Engine. Now you can proceed with configuring your System.
  • Page 8 1. Using a PC connected to your studio network, go to the Engine Web UI home page 2. In the left column, select Program and Monitor outputs. 3. Enter the planned channel numbers for Quasar Engine (Livewire Sources) outputs. 4. Enable the streams you need to be active on the Engine 5.
  • Page 9 Layers. The table shown in the picture shows which input channel, of the 64 available in the Quasar Engine, will be loaded on the four channel strips each time the LAYER 1, 2, 3, 4 buttons will be pushed on the...
  • Page 10 QUICK-START INSTALLATION GUIDE In case you don’t need to use Layers, just make sure that layers are disabled. You can disable Layers by navigating the Master Module Web UI and selecting the Customize menu. This will switch off the Layer buttons on the Master module.
  • Page 11 QUICK-START INSTALLATION GUIDE Input Source creation and configuration 1. Browse the Quasar MTS module Web UI. In the left column under Profiles select Sources 2. Click the button labeled “Create New Source Profile” 3. On the Source Profile screen, select Source Type from the drop down list (A).
  • Page 12 QUICK-START INSTALLATION GUIDE Assign Sources to Input Channels Once all the required Sources are created, you need to assign them to the input channels of your Quasar Engine, and save this configuration in what we call “Show Profile”. You can do so in two ways: 1.
  • Page 13 QUICK-START INSTALLATION GUIDE From the Web UI: From your PC, navigate the “Shows” main page, and create a New Show Profile...
  • Page 14 QUICK-START INSTALLATION GUIDE After clicking on “Create new show profile” button, a dialog will appear, to let you type in the new profile name, and confirm. Then the following page will appear, and here you will be able to assign sources to each channel.
  • Page 15 CR Monitor source channel number. Your setup is complete! That’s it! You’re ready to Rock with Quasar!!! Now, sit back and enjoy some music. Try exploring the intuitive UI of the Quasar channel strip…. And have fun!

  • Page 16: Quick Links

    Radio: +1 (216) 622-0247 TV: +1 (717) 735-3611 Radio: support@telosalliance.com TV: support@linearacoustic.com 1241 Superior Ave. • Cleveland, Ohio, 44114, USA • +1.216.241.7225 • TelosAlliance.com © 2019 TLS Corp. The Telos Alliance®. All Rights Reserved. C19/16083 1490-00201-001 --- QUICK START GUIDE: QUASAR...
