4-Phone Module Channel Controls

You can assign any type of source to any Element
fader module, but some fader modules include
special keys that provide extra functions for cer-
tain types of sources. The 4-Phone Fader Mod-
ule (Figure 5-2) is one of these modules. If a nor-
mal line source is assigned to a Phone Fader, the
fader and its controls operate exactly like a stan-
dard 4-Fader Module (described in the previous
section). But when a Telos telephone hybrid is
assigned to one of these faders, extra functional-
ity is enabled.
Taking Calls
The Status Symbol box above the alpha dis-
play indicates an available line by displaying a
single dot. A call ringing in shows a "ringing"
icon. It is answered by pushing either the
button. If
Preview Preview
gling to and then answers the call. When
Off On
the call is answered, an "up arrow" icon displays.
Also, a window on Element's screen will show
call status and incoming caller ID (if available).
When the phone channel is off and in Pre-
view, press to drop the call. When the chan-
Off
nel is on, press once to put the caller on hold;
Off
twice to drop.
Making Calls
To dial out from the console, press any con-
trol key ( , , ,
Off On Hold Set
fader that hosts a Phone source. This assigns the
Keypad on the Monitor Module to that fader. Di-
aling works like a mobile phone: enter all digits,
then press the (
8
Enter
place the call. The Status Symbol icon above the
fader indicates first that a line is active and then
that the call is proceeding. The Element display
screen will also indicate the numbers dialed and
call status.
or
On
is already on, tog-
, or ) on a
Preview
) or (#) key to
Pound
©2016 Axia Audio- Rev 1.8.1
•
Set Key
If you're using certain Telos broadcast phone sys-
tems, pressing the
line assigned to that fader to a handset. These
buttons are mutually exclusive across all faders;
touching a
the handset to the line assigned to that fader and
cancels any previous line selection. For details
on Telos phone systems that utilize the
please refer to Appendix D: Working With
Phone Hybrids
•
Hold Key
Pressing
connected Telos phone system. When connected
to European ISDN lines, a hold signal is sent to
the network. With USA ISDN lines, no network
hold function is available, so the hybrid enters a
virtual hold state.
Note: The Element's 2-Fader Monitor Mod-
ule also includes two Phone faders com-
plete with Set and Hold buttons.

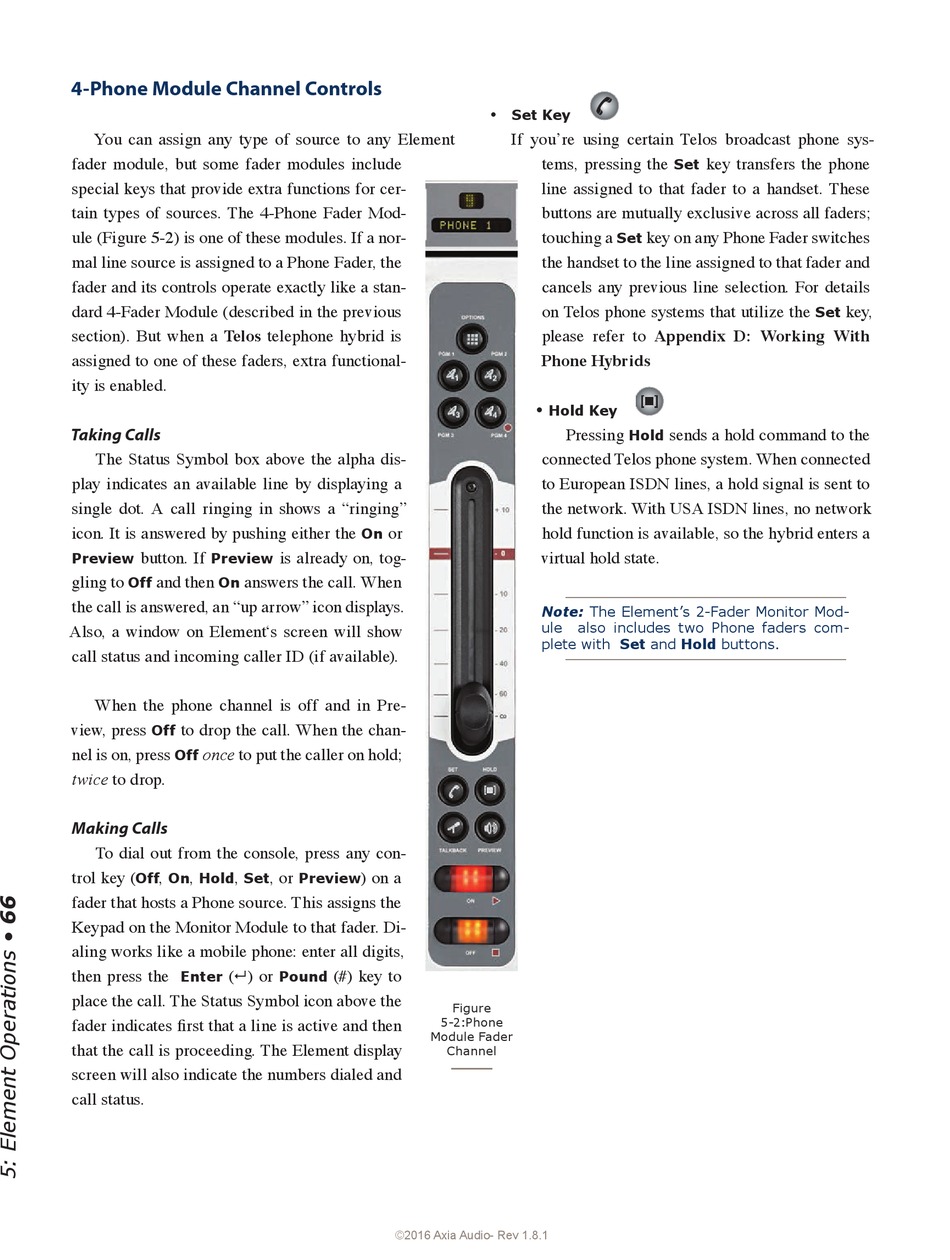

Figure
5-2:Phone
Module Fader
Channel
key transfers the phone
Set
key on any Phone Fader switches
Set
sends a hold command to the
Hold
key,
Set
