Dtransmit Audio Volume Adjustment - Icom RS-BA1 Installation Manual

4
SETTINGS FOR A REMOTE STATION PC
■ Audio adjustment using the Remote Utility (Continued)

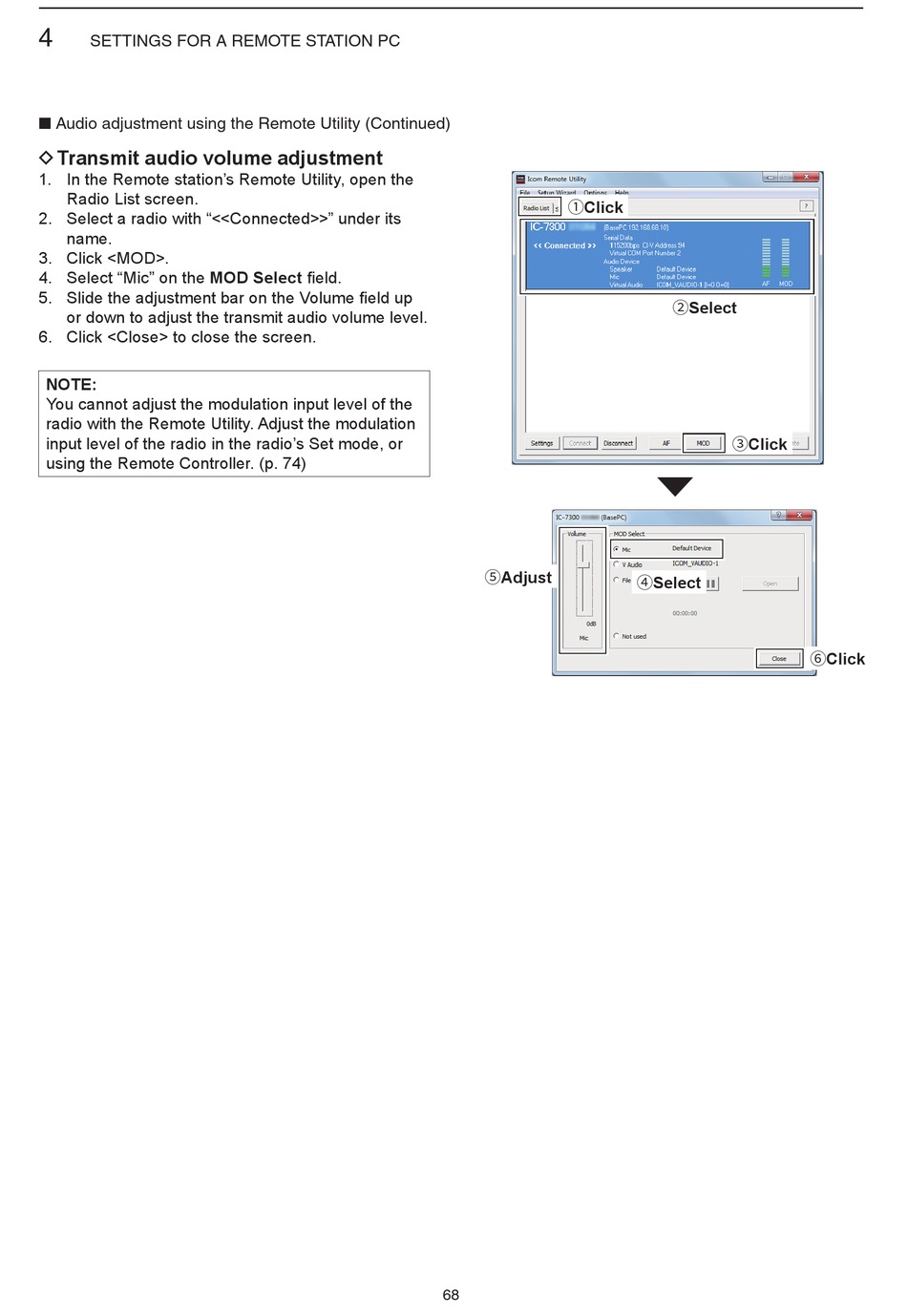

D Transmit audio volume adjustment
1. In the Remote station's Remote Utility, open the
Radio List screen.
2. Select a radio with "<<Connected>>" under its
name.
3. Click <MOD>.
4. Select "Mic" on the MOD Select field.
5. Slide the adjustment bar on the Volume field up
or down to adjust the transmit audio volume level.
6. Click <Close> to close the screen.
NOTE:
You cannot adjust the modulation input level of the
radio with the Remote Utility. Adjust the modulation
input level of the radio in the radio's Set mode, or
using the Remote Controller. (p. 74)
1Click
5Adjust
68
2Select
3Click
4Select
6Click
