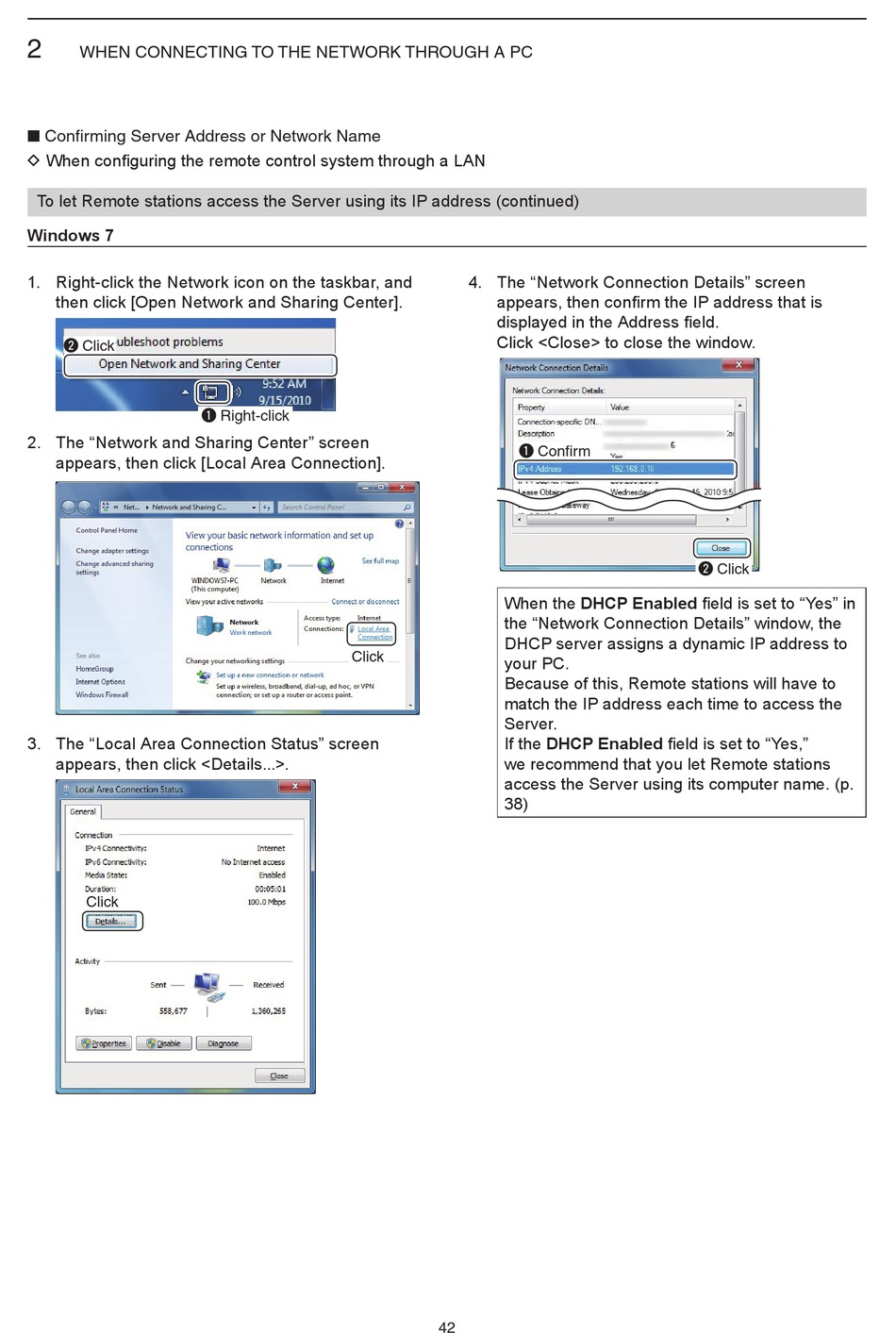

Icom RS-BA1 Installation Manual page 70

2
WHEN CONNECTING TO THE NETWORK THROUGH A PC
■ Confi rming Server Address or Network Name
D When confi guring the remote control system through a LAN
To let Remote stations access the Server using its IP address (continued)
Windows 7
1. Right-click the Network icon on the taskbar, and
then click [Open Network and Sharing Center].
w Click
2. The "Network and Sharing Center" screen
appears, then click [Local Area Connection].
3. The "Local Area Connection Status" screen
appears, then click <Details...>.
Click
q Right-click
Click
4. The "Network Connection Details" screen
appears, then confi rm the IP address that is
displayed in the Address fi eld.
Click <Close> to close the window.
q Confi rm
When the DHCP Enabled fi eld is set to "Yes" in
the "Network Connection Details" window, the
DHCP server assigns a dynamic IP address to
your PC.
Because of this, Remote stations will have to
match the IP address each time to access the
Server.
If the DHCP Enabled fi eld is set to "Yes,"
we recommend that you let Remote stations
access the Server using its computer name. (p.
38)
42
w Click
