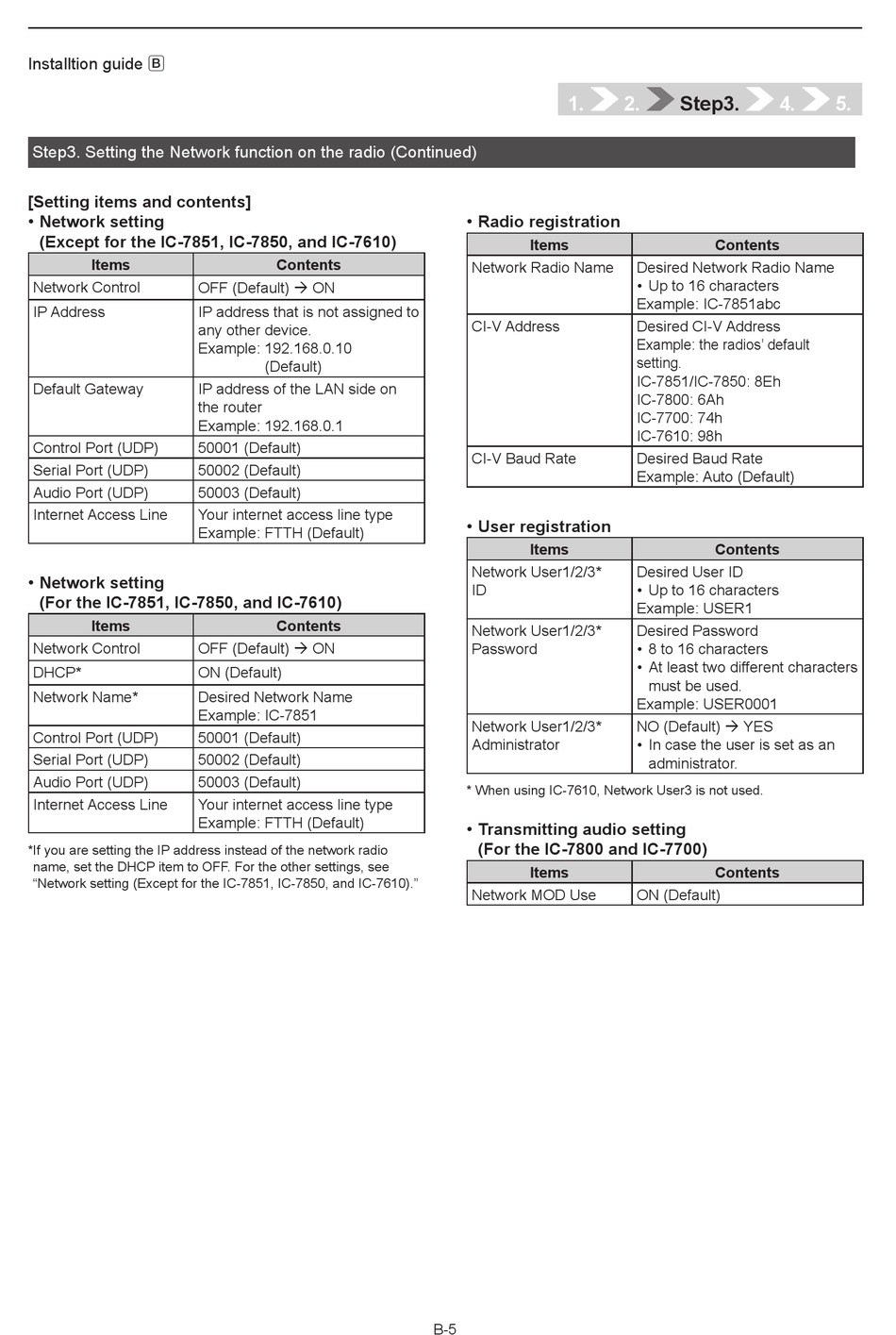

Icom RS-BA1 Installation Manual page 18

Installtion guide B
Step3. Setting the Network function on the radio (Continued)
[Setting items and contents]
• Network setting
(Except for the IC-7851, IC-7850, and IC-7610)
Items
Network Control
IP Address
Default Gateway
Control Port (UDP)
Serial Port (UDP)
Audio Port (UDP)
Internet Access Line
• Network setting
(For the IC-7851, IC-7850, and IC-7610)
Items
Network Control
DHCP*
Network Name*
Control Port (UDP)
Serial Port (UDP)
Audio Port (UDP)
Internet Access Line
* If you are setting the IP address instead of the network radio
name, set the DHCP item to OFF. For the other settings, see
"Network setting (Except for the IC-7851, IC-7850, and IC-7610)."
Contents
OFF (Default)  ON
IP address that is not assigned to
any other device.
Example: 192.168.0.10
(Default)
IP address of the LAN side on
the router
Example: 192.168.0.1
50001 (Default)
50002 (Default)
50003 (Default)
Your internet access line type
Example: FTTH (Default)
Contents
OFF (Default)  ON
ON (Default)
Desired Network Name
Example: IC-7851
50001 (Default)
50002 (Default)
50003 (Default)
Your internet access line type
Example: FTTH (Default)
1.
• Radio registration
Items
Network Radio Name
CI-V Address
CI-V Baud Rate
• User registration
Items
Network User1/2/3*
ID
Network User1/2/3*
Password
Network User1/2/3*
Administrator
* When using IC-7610, Network User3 is not used.
• Transmitting audio setting
(For the IC-7800 and IC-7700)
Items
Network MOD Use
B-5
2. Step3. 4.
Contents
Desired Network Radio Name
• Up to 16 characters
Example: IC-7851abc
Desired CI-V Address
Example: the radios' default
setting.
IC-7851/IC-7850: 8Eh
IC-7800: 6Ah
IC-7700: 74h
IC-7610: 98h
Desired Baud Rate
Example: Auto (Default)
Contents
Desired User ID
• Up to 16 characters
Example: USER1
Desired Password
• 8 to 16 characters
• At least two different characters
must be used.
Example: USER0001
NO (Default)  YES
• In case the user is set as an
administrator.
Contents
ON (Default)
