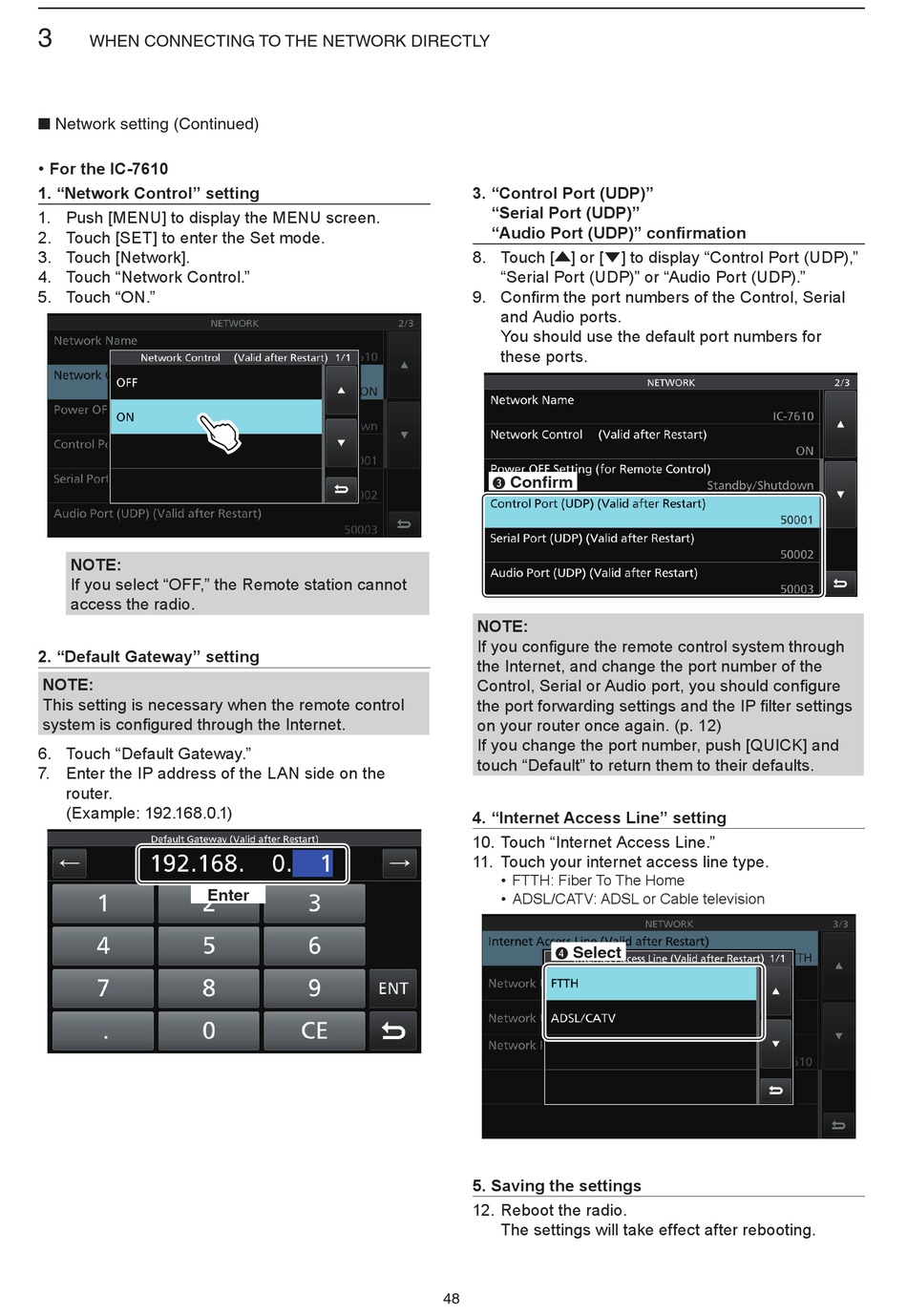

WHEN CONNECTING TO THE NETWORK DIRECTLY
■ Network setting (Continued)
• For the IC-7610
1. "Network Control" setting
1. Push [MENU] to display the MENU screen.
2. Touch [SET] to enter the Set mode.
3. Touch [Network].
4. Touch "Network Control."
5. Touch "ON."
NOTE:
If you select "OFF," the Remote station cannot
access the radio.
2. "Default Gateway" setting
NOTE:
This setting is necessary when the remote control
system is configured through the Internet.
6. Touch "Default Gateway."
7. Enter the IP address of the LAN side on the
router.
(Example: 192.168.0.1)
Enter
3. "Control Port (UDP)"
"Serial Port (UDP)"
"Audio Port (UDP)" confirmation
8. Touch [▲] or [▼] to display "Control Port (UDP),"
"Serial Port (UDP)" or "Audio Port (UDP)."
9. Confirm the port numbers of the Control, Serial
and Audio ports.
You should use the default port numbers for
these ports.
Confirm
e
NOTE:
If you configure the remote control system through
the Internet, and change the port number of the
Control, Serial or Audio port, you should configure
the port forwarding settings and the IP filter settings
on your router once again. (p. 12)
If you change the port number, push [QUICK] and
touch "Default" to return them to their defaults.
4. "Internet Access Line" setting
10. Touch "Internet Access Line."
11. Touch your internet access line type.
• FTTH: Fiber To The Home
• ADSL/CATV: ADSL or Cable television
Select
r
5. Saving the settings
12. Reboot the radio.
The settings will take effect after rebooting.
