2

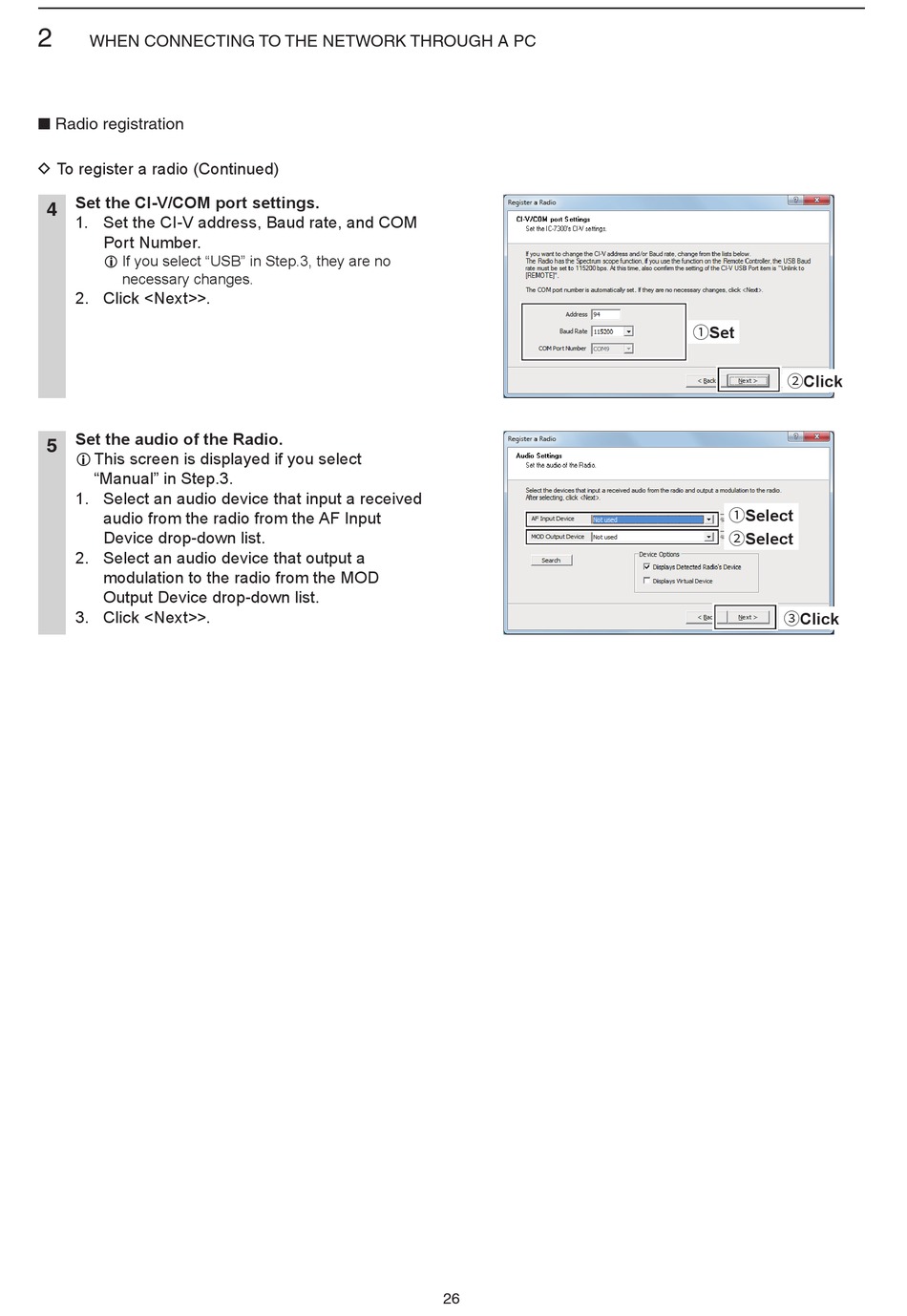

WHEN CONNECTING TO THE NETWORK THROUGH A PC
■ Radio registration
D To register a radio (Continued)
Set the CI-V/COM port settings.
4
1. Set the CI-V address, Baud rate, and COM
Port Number.
L If you select "USB" in Step.3, they are no
necessary changes.
2. Click <Next>>.
Set the audio of the Radio.
5
L This screen is displayed if you select
"Manual" in Step.3.
1. Select an audio device that input a received
audio from the radio from the AF Input
Device drop-down list.
2. Select an audio device that output a
modulation to the radio from the MOD
Output Device drop-down list.
3. Click <Next>>.
26
1Set
2Click
1Select
2Select
3Click
