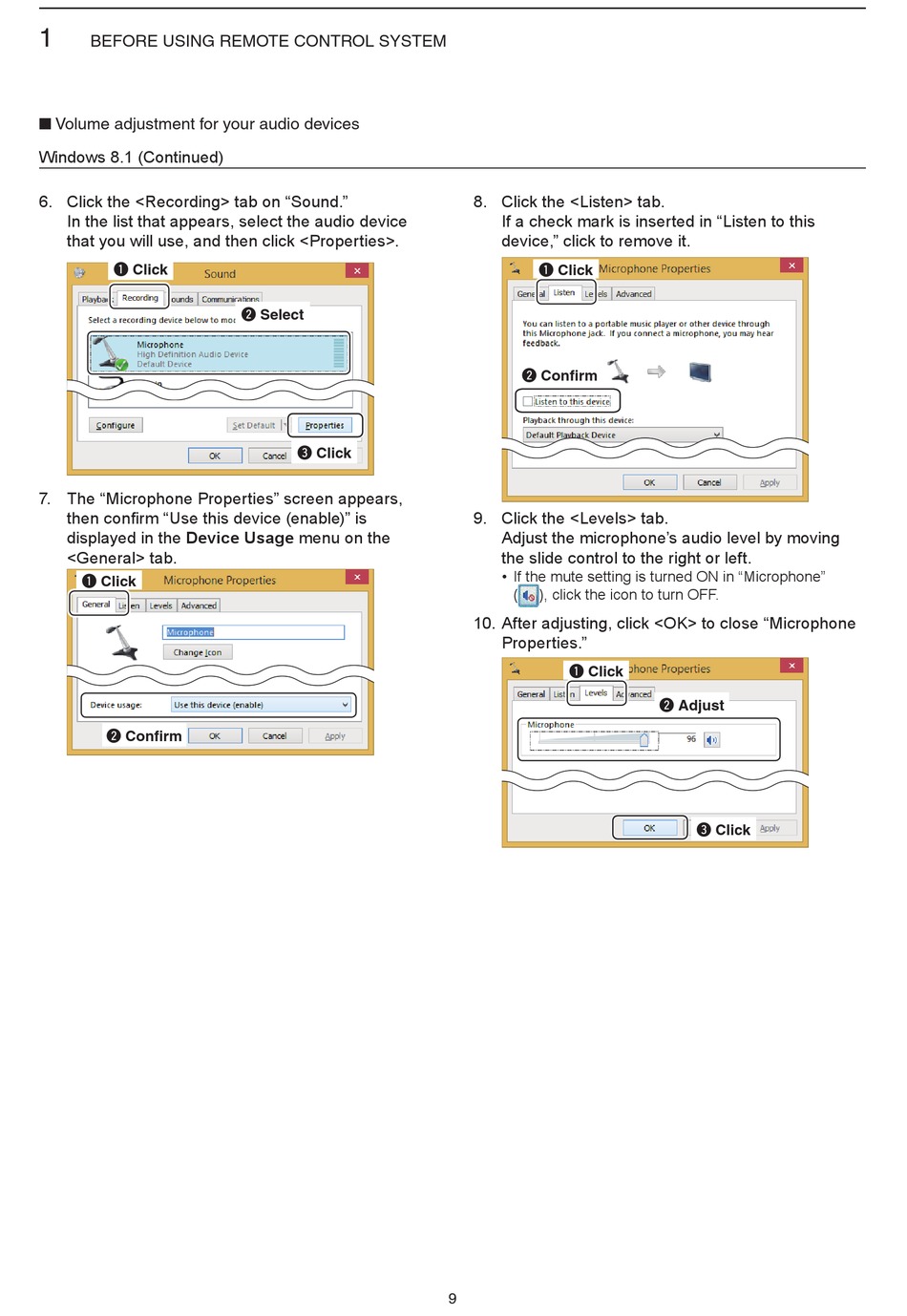

Icom RS-BA1 Installation Manual page 37

1
BEFORE USING REMOTE CONTROL SYSTEM
■ Volume adjustment for your audio devices
Windows 8.1 (Continued)
6. Click the <Recording> tab on "Sound."
In the list that appears, select the audio device
that you will use, and then click <Properties>.
q Click
7. The "Microphone Properties" screen appears,
then confirm "Use this device (enable)" is
displayed in the Device Usage menu on the
<General> tab.
q Click
w Confirm
w Select
e Click
8. Click the <Listen> tab.
If a check mark is inserted in "Listen to this
device," click to remove it.
q Click
w Confirm
9. Click the <Levels> tab.
Adjust the microphone's audio level by moving
the slide control to the right or left.
• If the mute setting is turned ON in "Microphone"
( ), click the icon to turn OFF.
10. After adjusting, click <OK> to close "Microphone
Properties."
q Click
9
w Adjust
e Click
