Icom RS-BA1 Installation Manual page 7

Installtion guide A

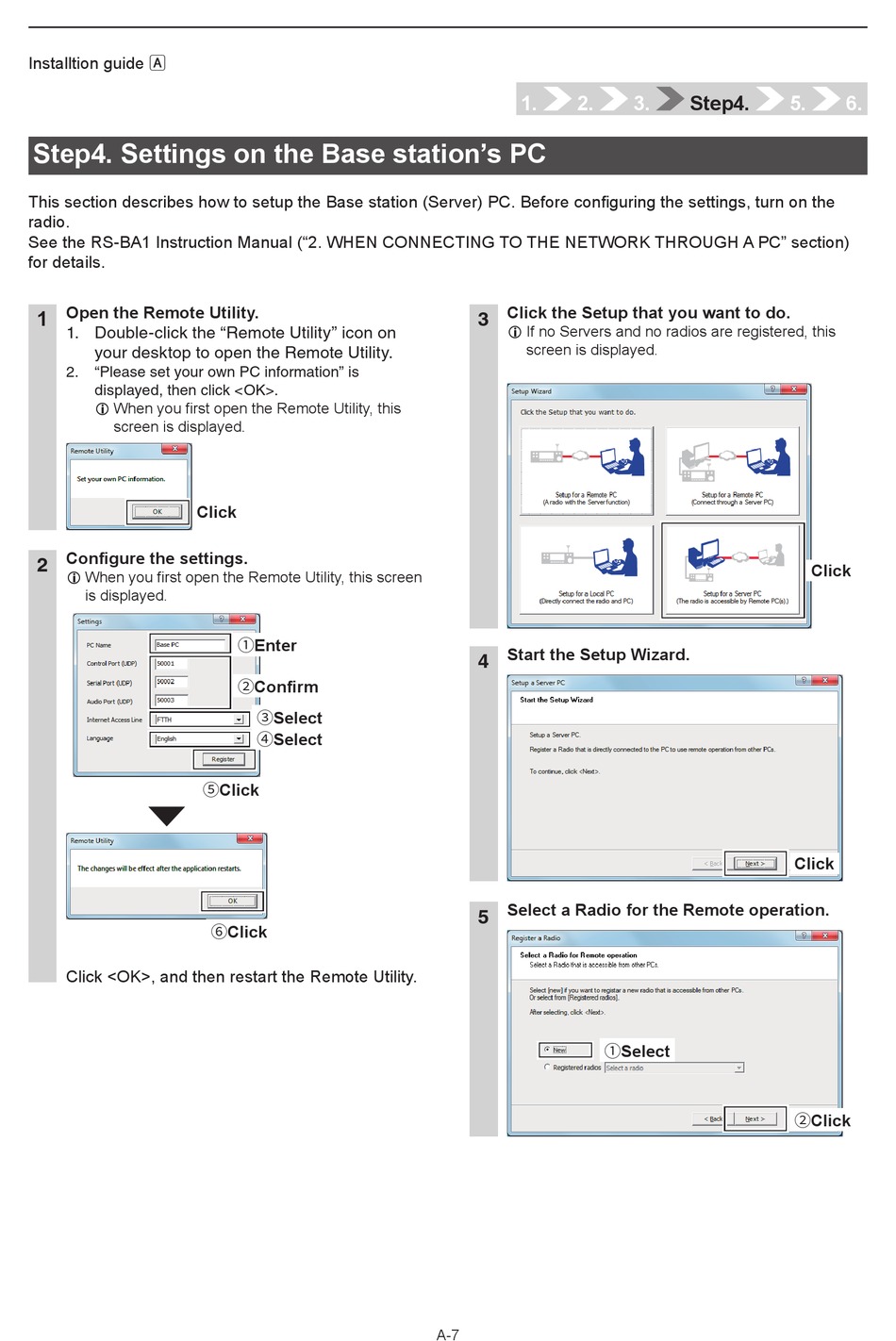

Step4. Settings on the Base station's PC
This section describes how to setup the Base station (Server) PC. Before configuring the settings, turn on the
radio.
See the RS-BA1 Instruction Manual ("2. WHEN CONNECTING TO THE NETWORK THROUGH A PC" section)
for details.
Open the Remote Utility.
1
1. Double-click the "Remote Utility" icon on
your desktop to open the Remote Utility.
2. "Please set your own PC information" is
displayed, then click <OK>.
L When you first open the Remote Utility, this
screen is displayed.
Click
Configure the settings.
2
L When you first open the Remote Utility, this screen
is displayed.
Click <OK>, and then restart the Remote Utility.
1Enter
2Confirm
3Select
4Select
5Click
6Click
1. 2.
Click the Setup that you want to do.
3
L If no Servers and no radios are registered, this
screen is displayed.
Start the Setup Wizard.
4
Select a Radio for the Remote operation.
5
1Select
A-7
3. Step4. 5.
Click
2Click
6.
Click
