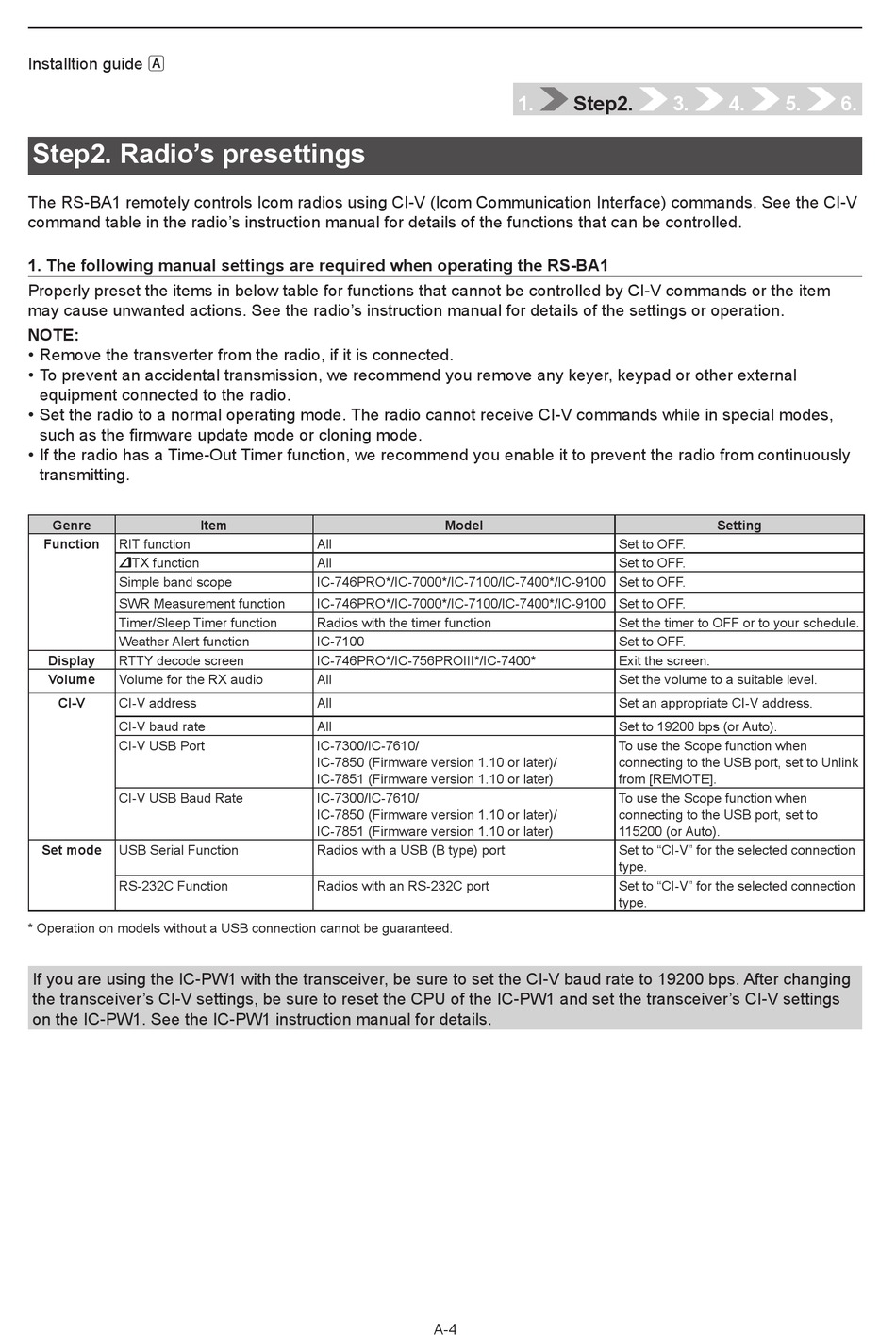

Icom RS-BA1 Installation Manual page 4

Installtion guide A
Step2. Radio's presettings
The RS-BA1 remotely controls Icom radios using CI-V (Icom Communication Interface) commands. See the CI-V
command table in the radio's instruction manual for details of the functions that can be controlled.
1. The following manual settings are required when operating the RS-BA1
Properly preset the items in below table for functions that cannot be controlled by CI-V commands or the item
may cause unwanted actions. See the radio's instruction manual for details of the settings or operation.
NOTE:
• Remove the transverter from the radio, if it is connected.
• To prevent an accidental transmission, we recommend you remove any keyer, keypad or other external
equipment connected to the radio.
• Set the radio to a normal operating mode. The radio cannot receive CI-V commands while in special modes,
such as the firmware update mode or cloning mode.
• If the radio has a Time-Out Timer function, we recommend you enable it to prevent the radio from continuously
transmitting.
Genre
Function RIT function
TX function
∂
Simple band scope
SWR Measurement function
Timer/Sleep Timer function
Weather Alert function
Display RTTY decode screen
Volume
Volume for the RX audio
CI-V CI-V address
CI-V baud rate
CI-V USB Port
CI-V USB Baud Rate
Set mode USB Serial Function
RS-232C Function
* Operation on models without a USB connection cannot be guaranteed.
If you are using the IC-PW1 with the transceiver, be sure to set the CI-V baud rate to 19200 bps. After changing
the transceiver's CI-V settings, be sure to reset the CPU of the IC-PW1 and set the transceiver's CI-V settings
on the IC-PW1. See the IC-PW1 instruction manual for details.
Item
All
All
IC-746PRO*/IC-7000*/IC-7100/IC-7400*/IC-9100 Set to OFF.
IC-746PRO*/IC-7000*/IC-7100/IC-7400*/IC-9100 Set to OFF.
Radios with the timer function
IC-7100
IC-746PRO*/IC-756PROIII*/IC-7400*
All
All
All
IC-7300/IC-7610/
IC-7850 (Firmware version 1.10 or later)/
IC-7851 (Firmware version 1.10 or later)
IC-7300/IC-7610/
IC-7850 (Firmware version 1.10 or later)/
IC-7851 (Firmware version 1.10 or later)
Radios with a USB (B type) port
Radios with an RS-232C port
