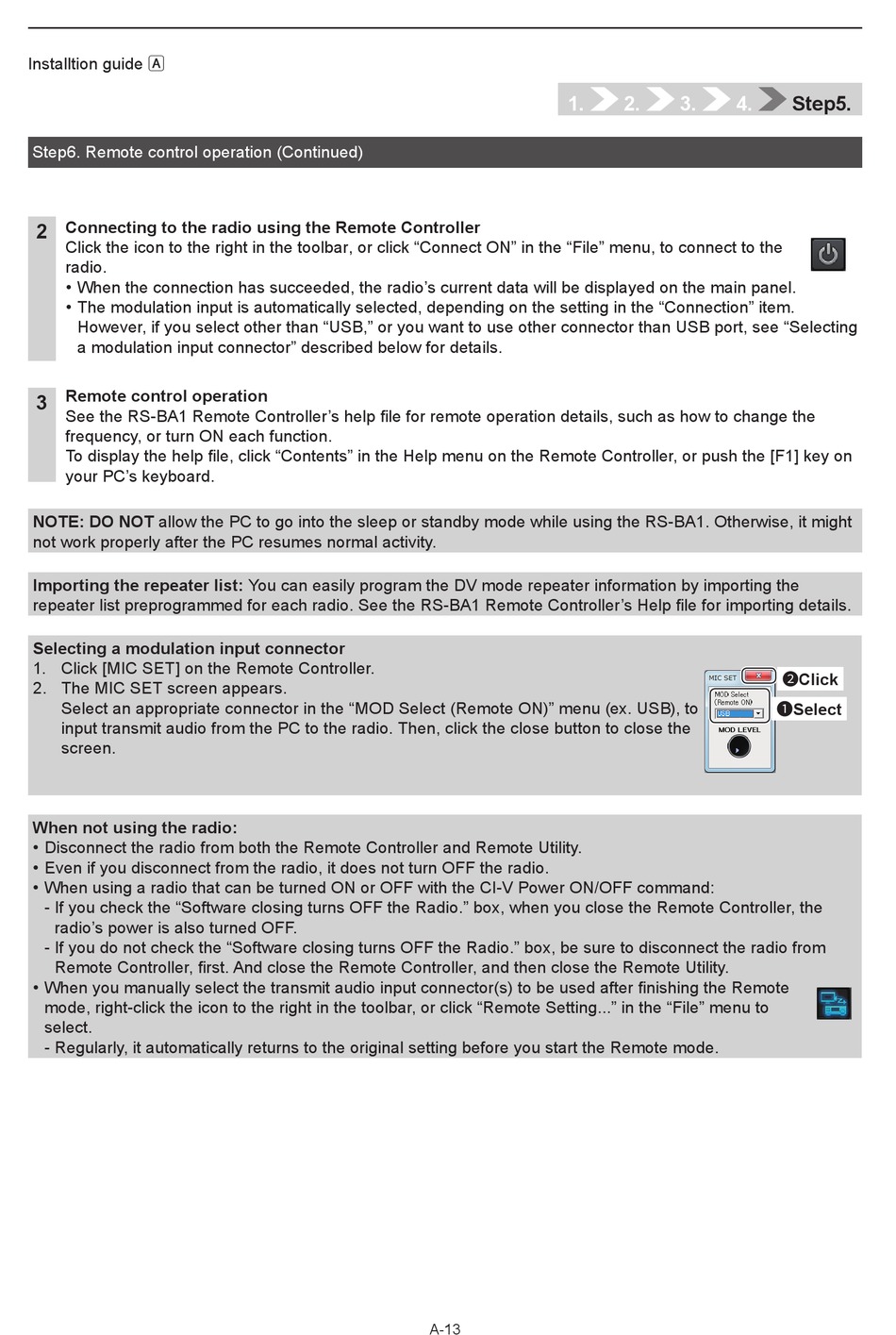

Icom RS-BA1 Installation Manual page 13

Installtion guide A
Step6. Remote control operation (Continued)
Connecting to the radio using the Remote Controller
2
Click the icon to the right in the toolbar, or click "Connect ON" in the "File" menu, to connect to the
radio.
• When the connection has succeeded, the radio's current data will be displayed on the main panel.
• The modulation input is automatically selected, depending on the setting in the "Connection" item.
However, if you select other than "USB," or you want to use other connector than USB port, see "Selecting
a modulation input connector" described below for details.
Remote control operation
3
See the RS-BA1 Remote Controller's help file for remote operation details, such as how to change the
frequency, or turn ON each function.
To display the help file, click "Contents" in the Help menu on the Remote Controller, or push the [F1] key on
your PC's keyboard.
NOTE: DO NOT allow the PC to go into the sleep or standby mode while using the RS-BA1. Otherwise, it might
not work properly after the PC resumes normal activity.
Importing the repeater list: You can easily program the DV mode repeater information by importing the
repeater list preprogrammed for each radio. See the RS-BA1 Remote Controller's Help file for importing details.
Selecting a modulation input connector
1. Click [MIC SET] on the Remote Controller.
2. The MIC SET screen appears.
Select an appropriate connector in the "MOD Select (Remote ON)" menu (ex. USB), to
input transmit audio from the PC to the radio. Then, click the close button to close the
screen.
When not using the radio:
• Disconnect the radio from both the Remote Controller and Remote Utility.
• Even if you disconnect from the radio, it does not turn OFF the radio.
• When using a radio that can be turned ON or OFF with the CI-V Power ON/OFF command:
- If you check the "Software closing turns OFF the Radio." box, when you close the Remote Controller, the
radio's power is also turned OFF.
- If you do not check the "Software closing turns OFF the Radio." box, be sure to disconnect the radio from
Remote Controller, first. And close the Remote Controller, and then close the Remote Utility.
• When you manually select the transmit audio input connector(s) to be used after finishing the Remote
mode, right-click the icon to the right in the toolbar, or click "Remote Setting..." in the "File" menu to
select.
- Regularly, it automatically returns to the original setting before you start the Remote mode.
1.
A-13
2. 3. 4. Step5.
2Click
1Select
