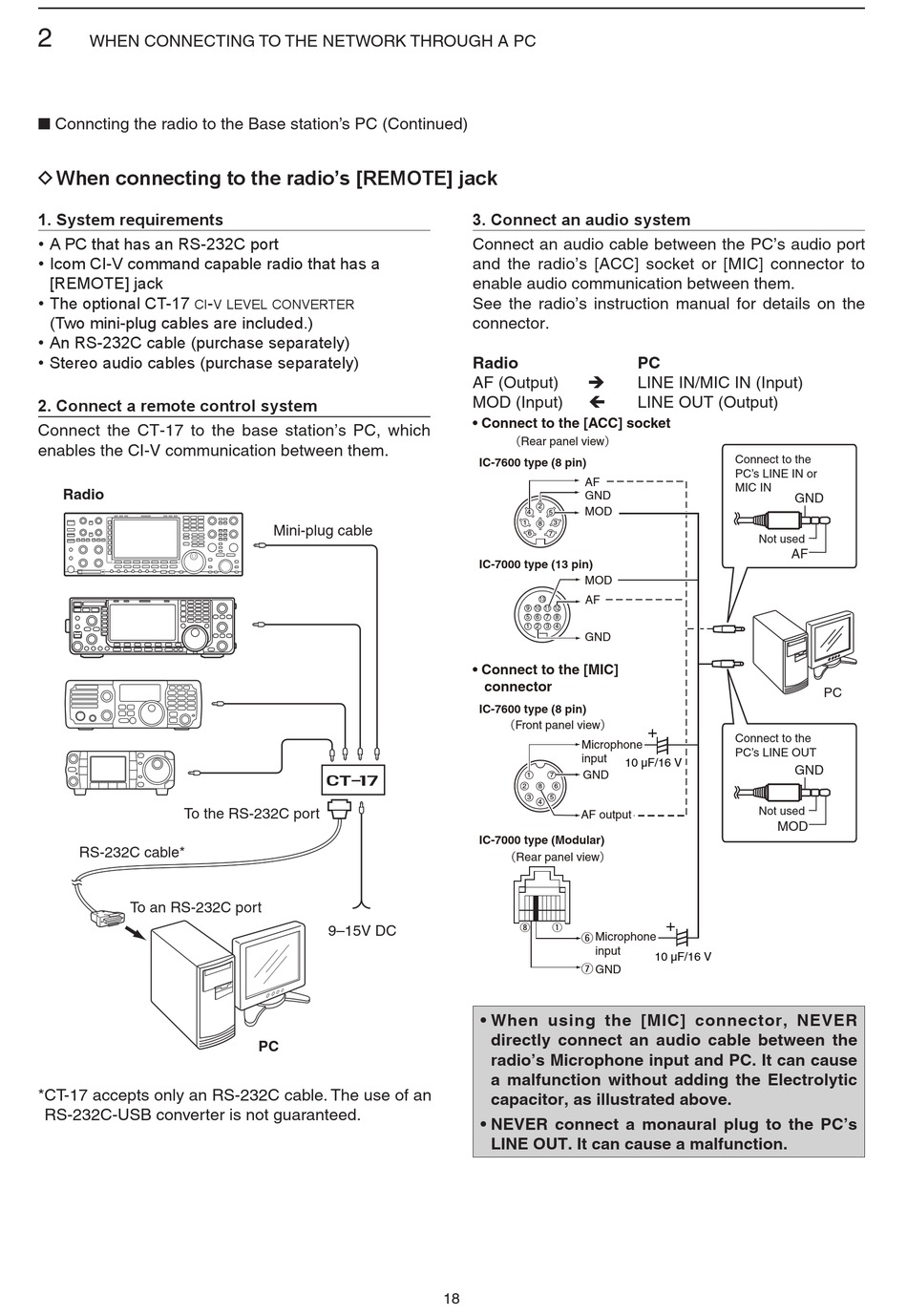

WHEN CONNECTING TO THE NETWORK THROUGH A PC
■ Conncting the radio to the Base station's PC (Continued)
D When connecting to the radio's [REMOTE] jack
1. System requirements
• A PC that has an RS-232C port
• Icom CI-V command capable radio that has a
[REMOTE] jack
• The optional CT-17 -
ci
(Two mini-plug cables are included.)
• An RS-232C cable (purchase separately)
• Stereo audio cables (purchase separately)
2. Connect a remote control system
Connect the CT-17 to the base station's PC, which
enables the CI-V communication between them.
Radio
To the RS-232C port
RS-232C cable*
To an RS-232C port
* CT-17 accepts only an RS-232C cable. The use of an
RS-232C-USB converter is not guaranteed.
v level converter
Mini-plug cable
ct-17
9–15V DC
PC
3. Connect an audio system
Connect an audio cable between the PC's audio port
and the radio's [ACC] socket or [MIC] connector to
enable audio communication between them.
See the radio's instruction manual for details on the
connector.
Radio
AF (Output) 
MOD (Input) 
• Connect to the [ACC] socket
（Rear panel view）
IC-7600 type (8 pin)
AF
GND
2
MOD
4 5
1 3
8
6
7
IC-7000 type (13 pin)
MOD
AF
13
9 10 11 12
5 6 7 8
1 2 3 4
GND
• Connect to the [MIC]
connector
IC-7600 type (8 pin)
（Front panel view）
Microphone
input
GND
1
7
2 8 6
3 5
4
AF output
IC-7000 type (Modular)
（Rear panel view）
i q
Microphone
y
input
GND
u
• When using the [MIC] connector, NEVER
directly connect an audio cable between the
radio's Microphone input and PC. It can cause
a malfunction without adding the Electrolytic
capacitor, as illustrated above.
• NEVER connect a monaural plug to the PC's
LINE OUT. It can cause a malfunction.
18
PC
LINE IN/MIC IN (Input)
LINE OUT (Output)
Connect to the
PC's LINE IN or
MIC IN
GND
Not used
AF
+
Connect to the
PC's LINE OUT
10 µF/16 V
GND
Not used
MOD
+
10 µF/16 V
PC
