Dnetwork Audio Quality Setting; Ddevice Setting - Icom RS-BA1 Installation Manual

4
SETTINGS FOR A REMOTE STATION PC
■ Connection Setting (Continued)

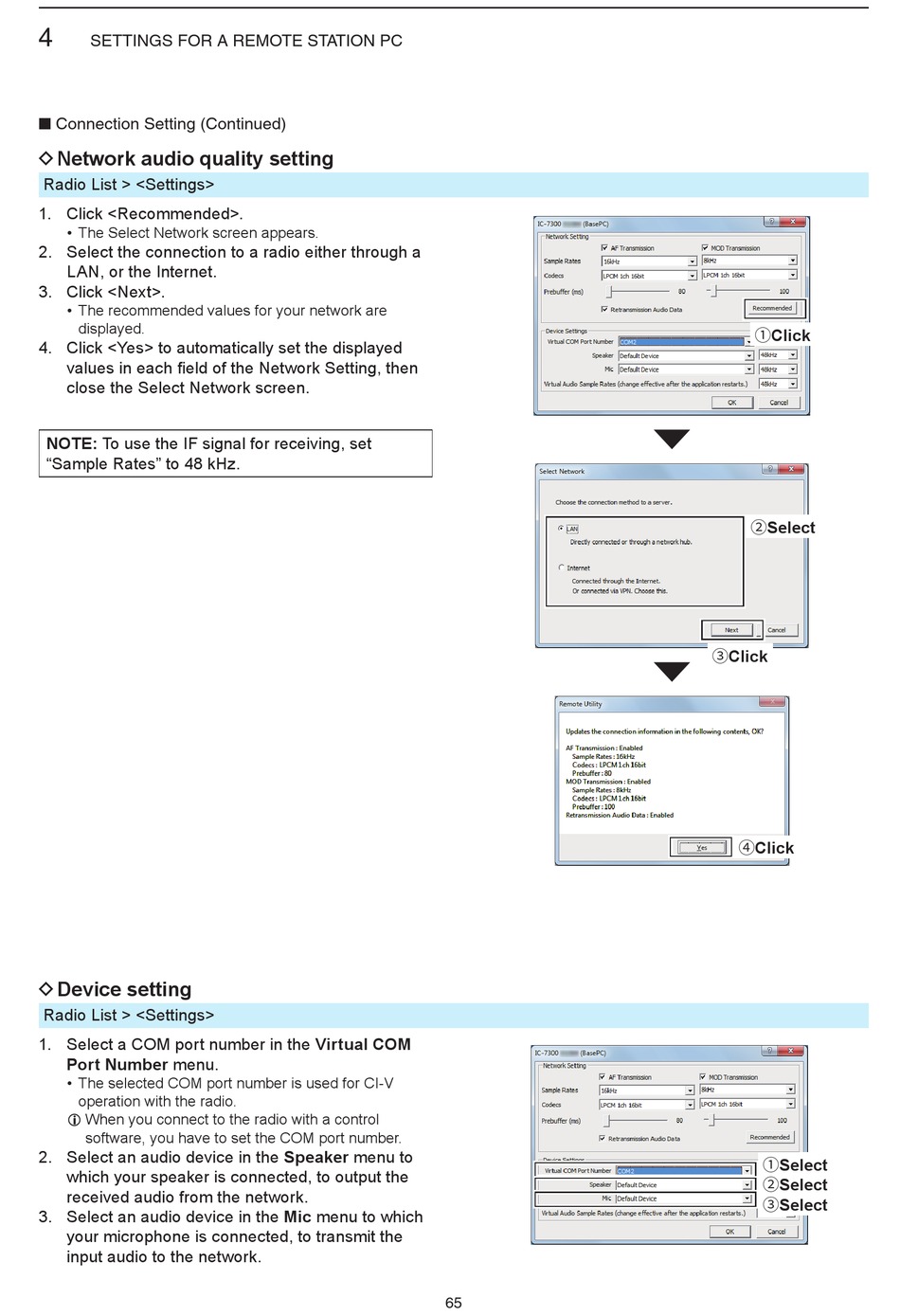

D Network audio quality setting
Radio List > <Settings>
1. Click <Recommended>.
• The Select Network screen appears.
2. Select the connection to a radio either through a
LAN, or the Internet.
3. Click <Next>.
• The recommended values for your network are
displayed.
4. Click <Yes> to automatically set the displayed
values in each field of the Network Setting, then
close the Select Network screen.
NOTE: To use the IF signal for receiving, set
"Sample Rates" to 48 kHz.
D Device setting
Radio List > <Settings>
1. Select a COM port number in the Virtual COM
Port Number menu.
• The selected COM port number is used for CI-V
operation with the radio.
L When you connect to the radio with a control
software, you have to set the COM port number.
2. Select an audio device in the Speaker menu to
which your speaker is connected, to output the
received audio from the network.
3. Select an audio device in the Mic menu to which
your microphone is connected, to transmit the
input audio to the network.
65
1Click
2Select
3Click
4Click
1Select
2Select
3Select
