Connection Setting - Icom RS-BA1 Installation Manual

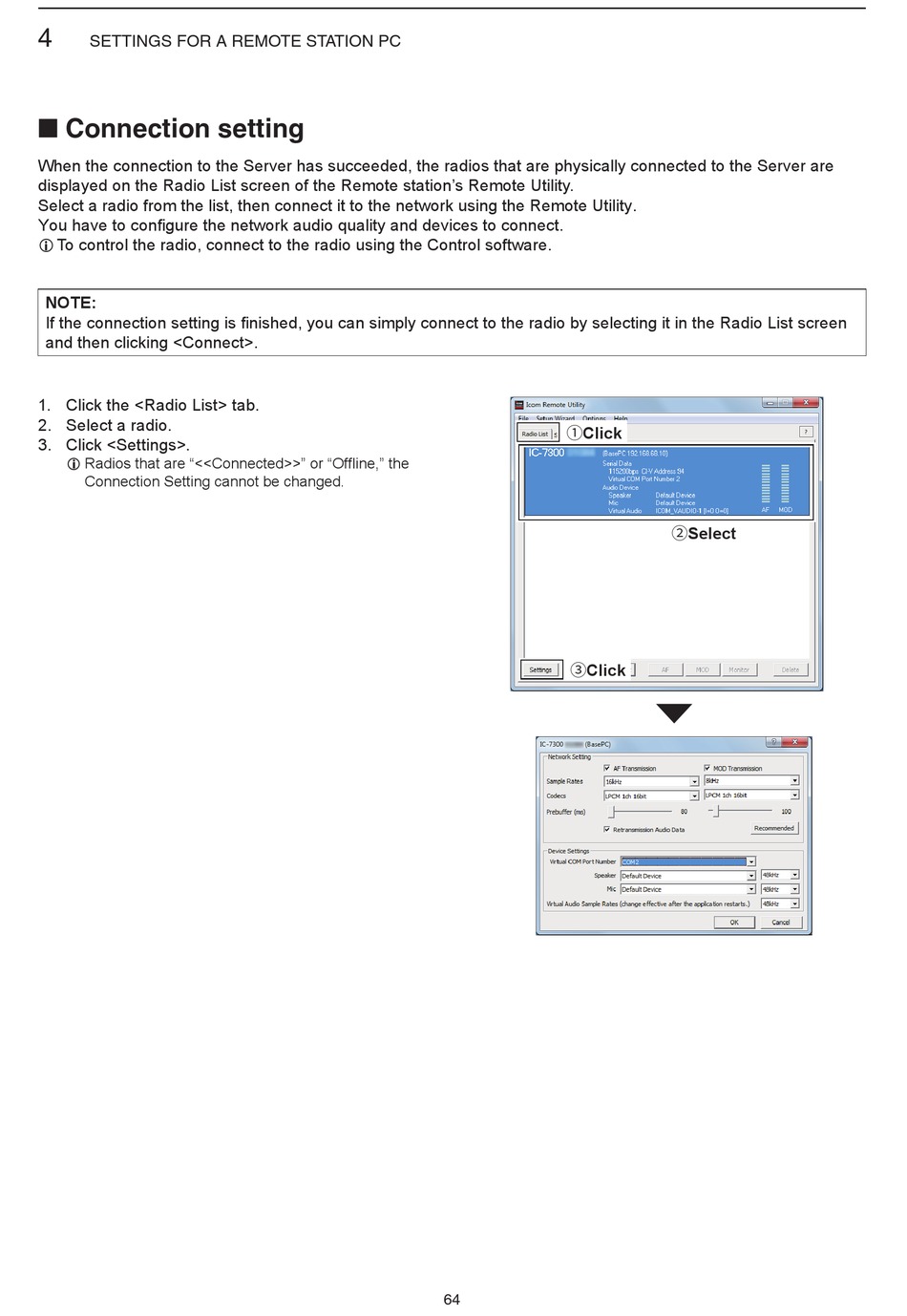

4
SETTINGS FOR A REMOTE STATION PC

■ Connection setting

When the connection to the Server has succeeded, the radios that are physically connected to the Server are
displayed on the Radio List screen of the Remote station's Remote Utility.
Select a radio from the list, then connect it to the network using the Remote Utility.
You have to configure the network audio quality and devices to connect.
L To control the radio, connect to the radio using the Control software.
NOTE:
If the connection setting is finished, you can simply connect to the radio by selecting it in the Radio List screen
and then clicking <Connect>.
1. Click the <Radio List> tab.
2. Select a radio.
3. Click <Settings>.
L Radios that are "<<Connected>>" or "Offline," the
Connection Setting cannot be changed.
1Click
3Click
64
2Select
