Connecting To The Server; Dconnecting To The Server; Ddisconnecting From The Server - Icom RS-BA1 Installation Manual

4
SETTINGS FOR A REMOTE STATION PC

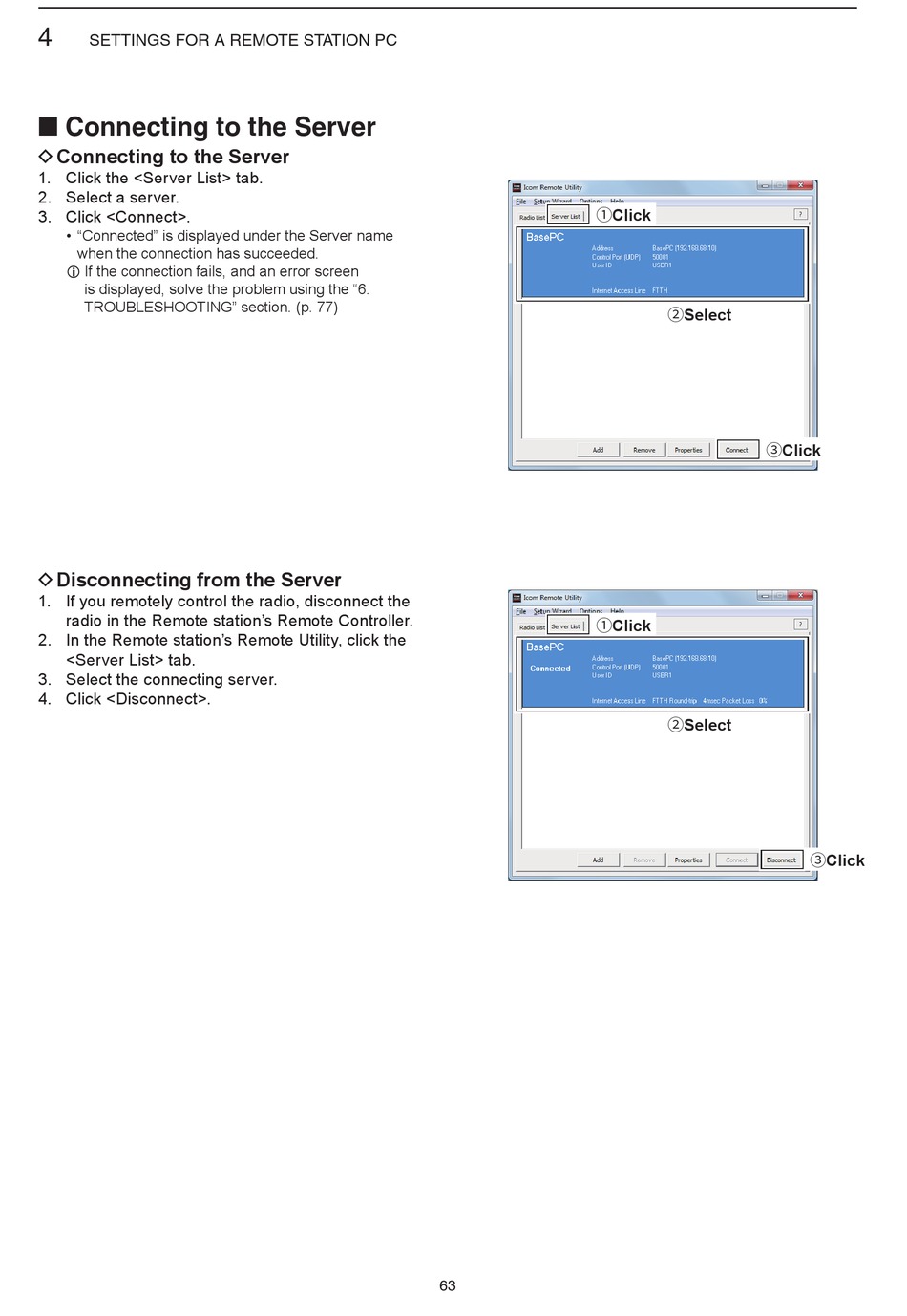

■ Connecting to the Server

D Connecting to the Server
1. Click the <Server List> tab.
2. Select a server.
3. Click <Connect>.
• "Connected" is displayed under the Server name
when the connection has succeeded.
L If the connection fails, and an error screen
is displayed, solve the problem using the "6.
TROUBLESHOOTING" section. (p. 77)
D Disconnecting from the Server
1. If you remotely control the radio, disconnect the
radio in the Remote station's Remote Controller.
2. In the Remote station's Remote Utility, click the
<Server List> tab.
3. Select the connecting server.
4. Click <Disconnect>.
1Click
1Click
63
2Select
3Click
2Select
3Click
