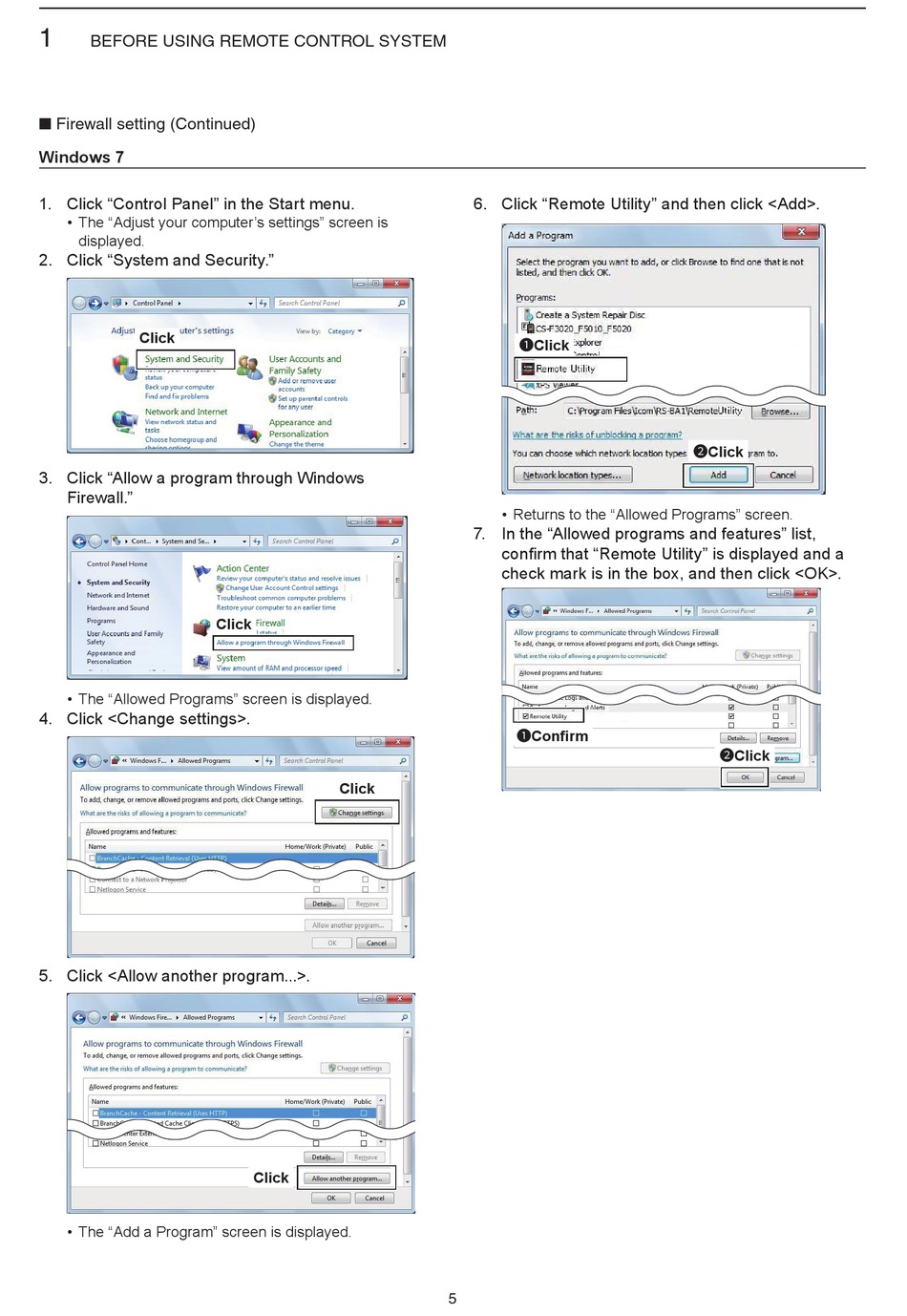

Icom RS-BA1 Installation Manual page 33

1
BEFORE USING REMOTE CONTROL SYSTEM
■ Firewall setting (Continued)
Windows 7
1. Click "Control Panel" in the Start menu.
• The "Adjust your computer's settings" screen is
displayed.
2. Click "System and Security."
Click
3. Click "Allow a program through Windows
Firewall."
• The "Allowed Programs" screen is displayed.
4. Click <Change settings>.
5. Click <Allow another program...>.
• The "Add a Program" screen is displayed.
Click
Click
Click
6. Click "Remote Utility" and then click <Add>.
1Click
• Returns to the "Allowed Programs" screen.
7. In the "Allowed programs and features" list,
confirm that "Remote Utility" is displayed and a
check mark is in the box, and then click <OK>.
1Confirm
5
2Click
2Click
