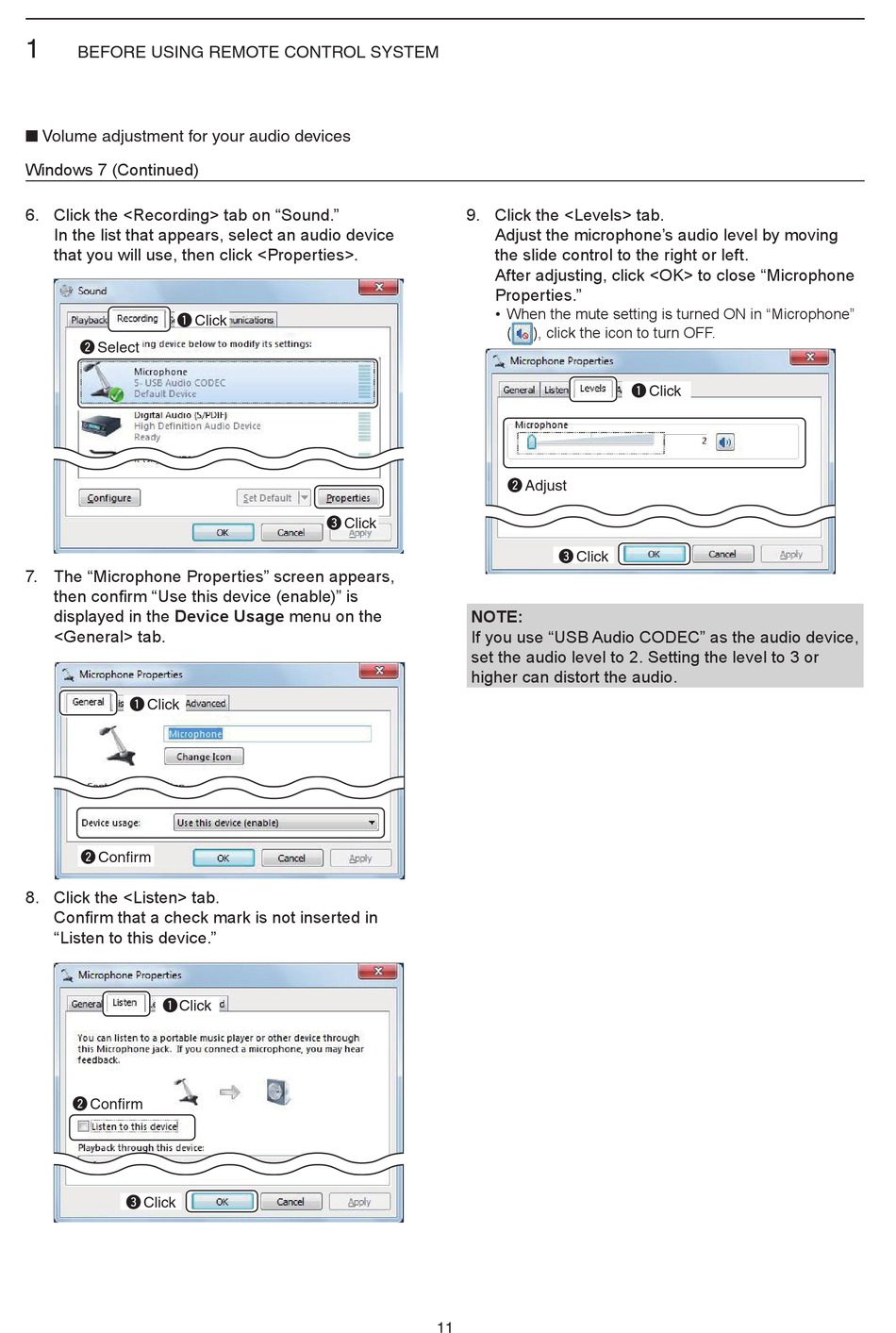

Icom RS-BA1 Installation Manual page 39

1
BEFORE USING REMOTE CONTROL SYSTEM
■ Volume adjustment for your audio devices
Windows 7 (Continued)
6. Click the <Recording> tab on "Sound."
In the list that appears, select an audio device
that you will use, then click <Properties>.
q Click
w Select
7. The "Microphone Properties" screen appears,
then confirm "Use this device (enable)" is
displayed in the Device Usage menu on the
<General> tab.
q Click
w Confirm
8. Click the <Listen> tab.
Confirm that a check mark is not inserted in
"Listen to this device."
q Click
w Confirm
e Click
9. Click the <Levels> tab.
Adjust the microphone's audio level by moving
the slide control to the right or left.
After adjusting, click <OK> to close "Microphone
Properties."
• When the mute setting is turned ON in "Microphone"
e Click
NOTE:
If you use "USB Audio CODEC" as the audio device,
set the audio level to 2. Setting the level to 3 or
higher can distort the audio.
11
( ), click the icon to turn OFF.
q Click
w Adjust
e Click
