4
SETTINGS FOR A REMOTE STATION PC

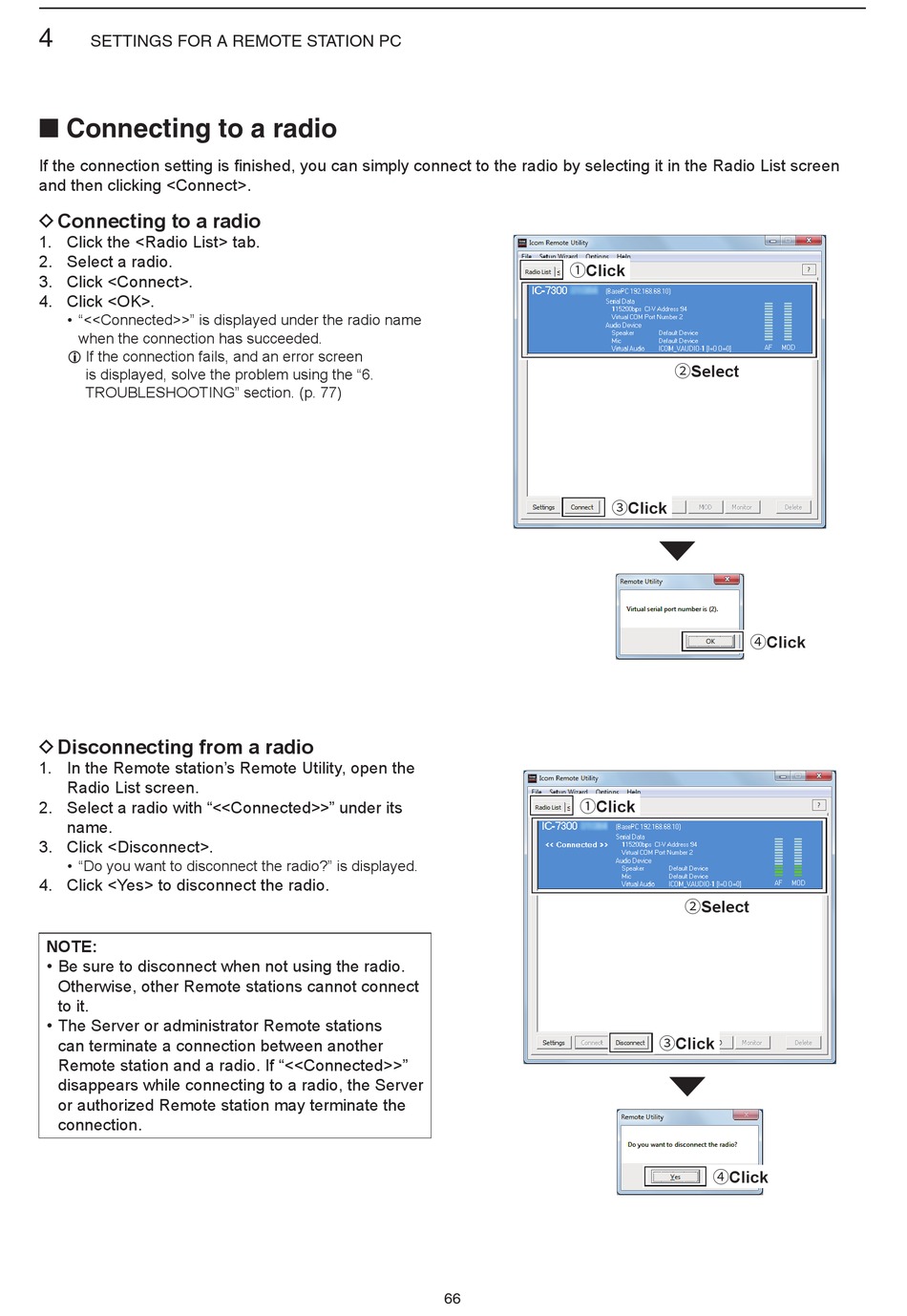

■ Connecting to a radio

If the connection setting is finished, you can simply connect to the radio by selecting it in the Radio List screen
and then clicking <Connect>.
D Connecting to a radio
1. Click the <Radio List> tab.
2. Select a radio.
3. Click <Connect>.
4. Click <OK>.
• "<<Connected>>" is displayed under the radio name
when the connection has succeeded.
L If the connection fails, and an error screen
is displayed, solve the problem using the "6.
TROUBLESHOOTING" section. (p. 77)
D Disconnecting from a radio
1. In the Remote station's Remote Utility, open the
Radio List screen.
2. Select a radio with "<<Connected>>" under its
name.
3. Click <Disconnect>.
• "Do you want to disconnect the radio?" is displayed.
4. Click <Yes> to disconnect the radio.
NOTE:
• Be sure to disconnect when not using the radio.
Otherwise, other Remote stations cannot connect
to it.
• The Server or administrator Remote stations
can terminate a connection between another
Remote station and a radio. If "<<Connected>>"
disappears while connecting to a radio, the Server
or authorized Remote station may terminate the
connection.
1Click
3Click
1Click
66
2Select
4Click
2Select
3Click
4Click
