Icom RS-BA1 Installation Manual

Hide thumbs Also See for RS-BA1:
Table of Contents

Advertisement

Quick Links

See also: Quick Reference Manual
This guide contains instructions on how to configure the remote control system, and how to remotely control a
radio.
If you are using one of the following radios and connecting to the network directly, see the Installation guide B
(For radios with the Network function).
• IC-7851
• IC-7850
• IC-7800 (Firmware version 3.00 or later)
• IC-7700 (Firmware version 2.00 or later)
• IC-7610
Before reading this guide, please finish the installation, using the RS-BA1 Preparations.
See the RS-BA1 Instruction Manual for detailed instructions.

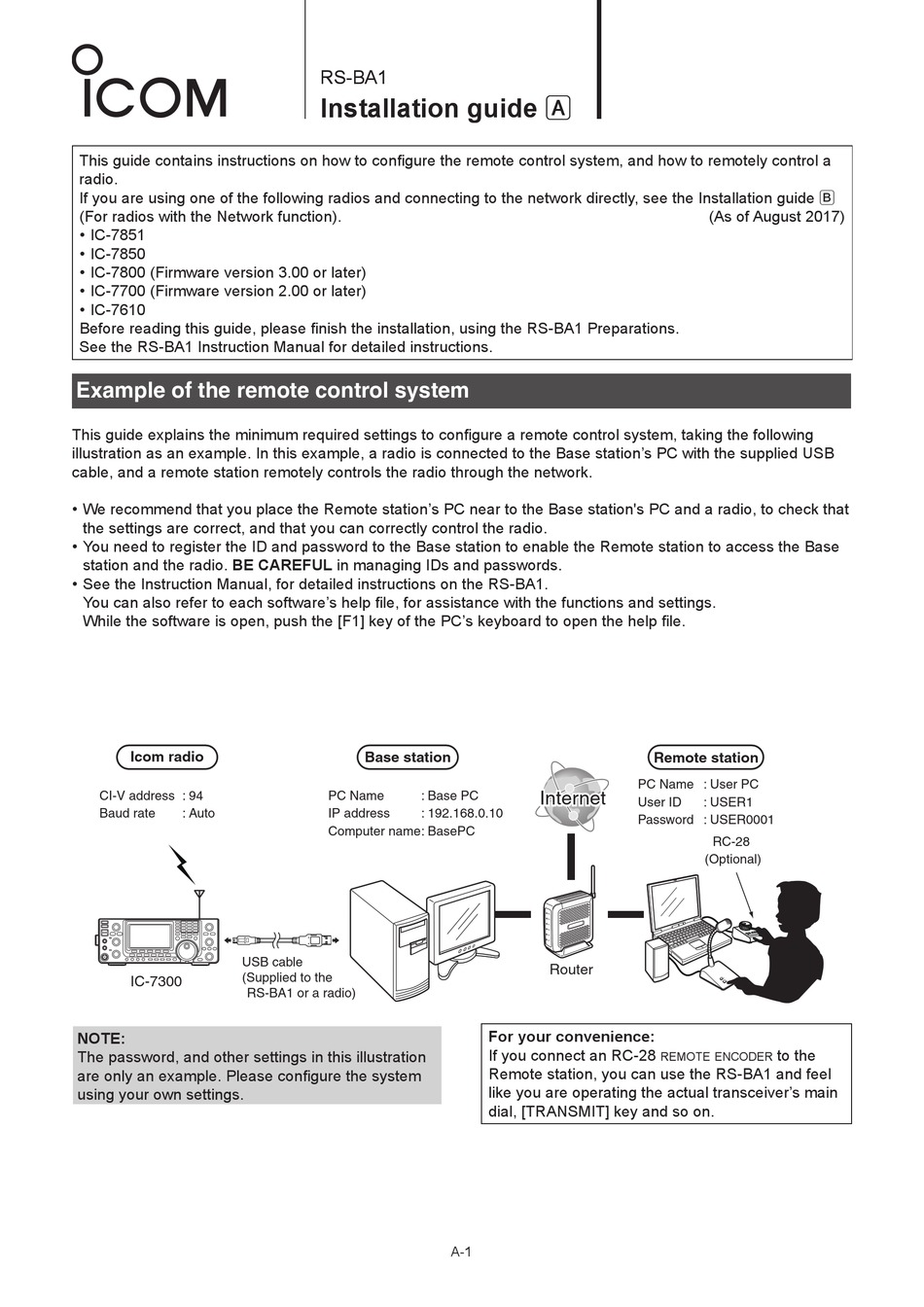

Example of the remote control system
This guide explains the minimum required settings to configure a remote control system, taking the following
illustration as an example. In this example, a radio is connected to the Base station's PC with the supplied USB
cable, and a remote station remotely controls the radio through the network.
• We recommend that you place the Remote station's PC near to the Base station's PC and a radio, to check that
the settings are correct, and that you can correctly control the radio.
• You need to register the ID and password to the Base station to enable the Remote station to access the Base
station and the radio. BE CAREFUL in managing IDs and passwords.
• See the Instruction Manual, for detailed instructions on the RS-BA1.
You can also refer to each software's help file, for assistance with the functions and settings.
While the software is open, push the [F1] key of the PC's keyboard to open the help file.
Icom radio
CI-V address : 94
Baud rate
: Auto
USB cable
(Supplied to the
IC-7300
NOTE:
The password, and other settings in this illustration
are only an example. Please configure the system
using your own settings.
RS-BA1
RS-BA1
Installation guide A
Installation guide A
Base station
PC Name
: Base PC
IP address
: 192.168.0.10
Computer name : BasePC
RS-BA1 or a radio)
* In this illustration, routers or other devices are not described.
Internet
Internet
Router
For your convenience:
If you connect an RC-28
Remote station, you can use the RS-BA1 and feel
like you are operating the actual transceiver's main
dial, [TRANSMIT] key and so on.
A-1
(As of August 2017)
Remote station
PC Name : User PC
User ID
: USER1
Password : USER0001
RC-28
(Optional)
to the
remote encoder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-BA1 and is the answer not in the manual?

Questions and answers

Related Manuals for Icom RS-BA1

Summary of Contents for Icom RS-BA1

  • Page 1 • IC-7800 (Firmware version 3.00 or later) • IC-7700 (Firmware version 2.00 or later) • IC-7610 Before reading this guide, please finish the installation, using the RS-BA1 Preparations. See the RS-BA1 Instruction Manual for detailed instructions. Example of the remote control system This guide explains the minimum required settings to configure a remote control system, taking the following illustration as an example.
  • Page 2 Check the connector type on your radio and see the following chart to connect your radio to the Base station’s To connect an Icom CI-V command capable radio to the Base station’s PC, you have to make connections for control command and audio communication.
  • Page 3 • Icom CI-V command capable radio that has a [USB] USB cable. port (Type B/Mini-B) • This guide is based on using a Type B USB cable. • The USB cable (supplied to the RS-BA1 or a radio) METER REMOTE 2. Install a USB driver CAUTION: •...
  • Page 4 Step2. Step2. Radio’s presettings The RS-BA1 remotely controls Icom radios using CI-V (Icom Communication Interface) commands. See the CI-V command table in the radio’s instruction manual for details of the functions that can be controlled. 1. The following manual settings are required when operating the RS-BA1 Properly preset the items in below table for functions that cannot be controlled by CI-V commands or the item may cause unwanted actions.
  • Page 5 2. The following settings are automatically set to the radio When the RS-BA1’s Remote Controller connects to the radio, and you select the model name on the Connect Setting screen, the following may be automatically set, depending on the model. When you manually operate the radio, set these items as desired.
  • Page 6 To configure the remote control system, the following settings are required. D Firewall setting (RS-BA1 Instruction Manual p. 1) To let the Remote Utility work properly, it must be added as an exception in the Firewall. See the RS-BA1 Instruction Manual for details.
  • Page 7 This section describes how to setup the Base station (Server) PC. Before configuring the settings, turn on the radio. See the RS-BA1 Instruction Manual (“2. WHEN CONNECTING TO THE NETWORK THROUGH A PC” section) for details. Open the Remote Utility.
  • Page 8 Installtion guide A Step4. Step4. Settings on the Base station’s PC (Continued) Select a Radio. Register a User to accept connection. 1Select 1Click 2Click L If the radio is not listed, click the <Search> button. 2Enter L If the radio is connected to the PC using other than a USB cable, select from the Manual 3Enter drop-down list.
  • Page 9 Installtion guide A Step4. Step4. Settings on the Base station’s PC (Continued) Enter the radio name. The registration of the Radio is completed. Click Click L The radio’s model name and the last 5 figures of the serial number is entered by default. By connecting the Radio to a USB port, the default settings on the REC/PLAY device window may change to the Radio’s Speaker...
  • Page 10 This section describes how to setup the Remote station (Client) PC. Before configuring the settings, connect a speaker and microphone, or headset to the Remote station’s PC. See the RS-BA1 Instruction Manual (“4. SETTINGS FOR A REMOTE STATION PC” section) for details. Open the Remote Utility.
  • Page 11 Installtion guide A Step5. Step5. Settings on the Remote station’s PC (Continued) Enter the User ID and Password. Connect the radio. After clicking <Next>>, connects to the Server. 1Enter 1Click 2Enter (Example: USER0001) 3Click NOTE: If you cannot connect to the Server, the error 2Click screen is displayed.
  • Page 12 Utility has succeeded (“<<Connected>>” is displayed under the radio name). Connect setting using the Remote Controller 1. Double-click the “RS-BA1 Remote Control” icon on your desktop to open the Remote Controller. 2. Click the icon to the right in the toolbar, or click “Connect Setting...” in the “Option” menu.
  • Page 13 To display the help file, click “Contents” in the Help menu on the Remote Controller, or push the [F1] key on your PC’s keyboard. NOTE: DO NOT allow the PC to go into the sleep or standby mode while using the RS-BA1. Otherwise, it might not work properly after the PC resumes normal activity.
  • Page 14 This guide contains instructions on how to configure the remote control system, and how to remotely control a radio with the Network function*. Before reading this guide, please finish the installation, using the RS-BA1 Preparations. See the RS-BA1 Instruction Manual for detailed instructions.
  • Page 15 2. The following settings are automatically set to the radio When the RS-BA1’s Remote Controller connects to the radio, and you select the model name on the Connect Setting screen, the following items are automatically set. When you manually operate the radio, set these items as desired.
  • Page 16 To configure the remote control system, the following settings are required. D Firewall setting (RS-BA1 Instruction Manual p. 1) To let the Remote Utility work properly, it must be added as an exception in the Firewall. See the RS-BA1 Instruction Manual for details.
  • Page 17 • See page B-5 for the setting contents. their defaults. • Hold down [DEF](F-4) for 1 second to return them to • See the RS-BA1 Instruction Manual for details. their defaults. 6. Push [MENU] to exit the Set mode. • See the RS-BA1 Instruction Manual for details.
  • Page 18 Installtion guide B Step3. Step3. Setting the Network function on the radio (Continued) [Setting items and contents] • Network setting • Radio registration (Except for the IC-7851, IC-7850, and IC-7610) Items Contents Items Contents Network Radio Name Desired Network Radio Name •...
  • Page 19 Before configuring the settings, connect a speaker and microphone, or a headset to the Remote station’s PC. Before configuring the settings, turn ON the radio. See the RS-BA1 Instruction Manual (“4. SETTINGS FOR A REMOTE STATION PC” section) for details. Open the Remote Utility.
  • Page 20 Installtion guide B Step4. Step4. Settings on the Remote station’s PC (Continued) Enter the User ID and Password. Connect the radio. After clicking <Next>>, connects to the Server. 1Enter 1Click 2Enter (Example: USER0001) 3Click NOTE: 2Click If you cannot connect to the Server, the error screen is displayed.
  • Page 21 Utility has succeeded (“<<Connected>>” is displayed under the radio name). Connect setting using the Remote Controller 1. Double-click the “RS-BA1 Remote Control” icon on your desktop to open the Remote Controller. 2. Click the icon to the right in the toolbar, or click “Connect Setting...” in the [Option] menu.
  • Page 22 - Regularly, it automatically returns to the original setting before you start the Remote mode. NOTE: DO NOT allow the PC to go into the sleep or standby mode while using the RS-BA1. Otherwise, it might not work properly after the PC resumes normal activity.
  • Page 23 INSTRUCTION MANUAL IP REMOTE CONTROL SOFTWARE PREFACE RS-BA1 OVERVIEW OF THE RS-BA1 ABOUT THE COMMUNICATION IN THE REMOTE CONTROL SYSTEM 1. BEFORE USING REMOTE CONTROL SYSTEM SETTING ON THE BASE STATION'S PC 2. WHEN CONNECTING TO THE NETWORK THROUGH A PC 3.

  • Page 24: About The Supplied Guides

    7 Home Premium, Microsoft ® Windows ® 7 Professional, and Microsoft ® Icom, Icom Inc. and Icom logo are registered trademarks of Icom Windows 7 Ultimate are described as “Windows ® Incorporated (Japan) in Japan, the United States, the United 7.”...

  • Page 25: About This Instruction Manual

    ABOUT THIS INSTRUCTION MANUAL To start using the RS-BA1, read this instruction manual in the following order. (p. i to iii) PREFACE OVERVIEW OF THE RS-BA1 (p. iv) (p. v) ABOUT THE COMMUNICATION IN THE REMOTE CONTROL SYSTEM 1. BEFORE USING REMOTE CONTROL SYSTEM (p.

  • Page 26: Table Of Contents

    ABOUT THIS INSTRUCTION MANUAL ......ii • IC-7850 TABLE OF CONTENTS .............iii • IC-7800 (firmware version 3.00 or later ) OVERVIEW OF THE RS-BA1 ..........iv • IC-7700 (firmware version 2.00 or later) ABOUT THE AUDIO COMMUNICATION • IC-7610 IN THE REMOTE CONTROL SYSTEM ......v D Base station settings for audio communication ..

  • Page 27: Overview Of The Rs-Ba1

    To control the Base station radio, the radio should be connected to the network through a PC or directly. Most Icom radios need a PC, and use the PC as the Server to exchange CI-V commands, control command and audio with the Remote station through either the internet or LAN. (Fig. 1) The radio has a built-in Network function that can be directly connected to the network.

  • Page 28: About The Audio Communication In The Remote Control System

    ABOUT THE AUDIO COMMUNICATION IN THE REMOTE CONTROL SYSTEM In the remote control system, audio is exchanged between a Base station radio and the Remote station’s PC, through Remote Utilities, as illustrated below. The audio settings needed are described below. When connecting to the network through a PC Base station Remote station...

  • Page 29: Before Using Remote Control System

    BEFORE USING REMOTE CONTROL SYSTEM Before using the remote control system, the following settings are needed. • Firewall setting (p. 1) • Volume adjustment for your audio devices (p. 6) • To allow access from the Internet (The setting is necessary only when you configure the remote control system through the Internet.) (p. 12) ■...
  • Page 30 BEFORE USING REMOTE CONTROL SYSTEM ■ Firewall setting Windows 10 (Continued) 5. Click <Allow another app...>. 7. In the “Allowed apps and features” list, confirm that “Remote Utility” is displayed and a check mark is in the box, and then click <OK>. 1Conform Click •...
  • Page 31 BEFORE USING REMOTE CONTROL SYSTEM ■ Firewall setting (Continued) Windows 8.1 1. Place the mouse pointer in the bottom right 4. Click “System and Security.” corner of the screen. • The charms is displayed on the right of the screen. Click 5.
  • Page 32 BEFORE USING REMOTE CONTROL SYSTEM ■ Firewall setting Windows 8.1 (Continued) 8. Click “Remote Utility” and then click <Add>. 1Click 2Click • Returns to the “Allowed applications” screen. 9. In the “Allowed apps and features” list, confirm that “Remote Utility” is displayed and a check mark is in the box, and then click <OK>.
  • Page 33 BEFORE USING REMOTE CONTROL SYSTEM ■ Firewall setting (Continued) Windows 7 1. Click “Control Panel” in the Start menu. 6. Click “Remote Utility” and then click <Add>. • The “Adjust your computer’s settings” screen is displayed. 2. Click “System and Security.” Click 1Click 2Click...

  • Page 34: Volume Adjustment For Your Audio Devices

    • When connecting to the network directly, the audio volume adjustment is needed for only the Remote station PC. Before you start using the RS-BA1, the PC’s audio volume must be set to a proper level. When several audio devices are used, you must set each one individually.
  • Page 35 BEFORE USING REMOTE CONTROL SYSTEM ■ Volume adjustment for your audio devices Windows 10 (Continued) 5. After adjusting, click <OK> to close “Speaker 8. Click the <Listen> tab. Properties.” If a check mark is inserted in “Listen to this device,” click to remove it. q Click q Click w Adjust...
  • Page 36 BEFORE USING REMOTE CONTROL SYSTEM ■ Volume adjustment for your audio devices (Continued) Windows 8.1 1. Right-click the speaker icon on the taskbar, then 3. The “Speaker Properties” screen appears, then click “Playback devices” or “Recording devices.” confirm “Use this device (enable)” is displayed in the Device Usage menu on the <General>...
  • Page 37 BEFORE USING REMOTE CONTROL SYSTEM ■ Volume adjustment for your audio devices Windows 8.1 (Continued) 6. Click the <Recording> tab on “Sound.” 8. Click the <Listen> tab. In the list that appears, select the audio device If a check mark is inserted in “Listen to this that you will use, and then click <Properties>.
  • Page 38 BEFORE USING REMOTE CONTROL SYSTEM ■ Volume adjustment for your audio devices (Continued) Windows 7 1. Right-click the speaker icon on the taskbar, and 3. The “Speaker Properties” screen appears, then click “Playback devices” or “Recording devices.” confirm “Use this device (enable)” is displayed in the Device Usage menu on the <General>...
  • Page 39 BEFORE USING REMOTE CONTROL SYSTEM ■ Volume adjustment for your audio devices Windows 7 (Continued) 6. Click the <Recording> tab on “Sound.” 9. Click the <Levels> tab. In the list that appears, select an audio device Adjust the microphone’s audio level by moving that you will use, then click <Properties>.

  • Page 40: To Allow Access From The Internet

    DNS Server Address: DNS Server Address: 192.168.0.1 192.168.0.1 Port numbers Port numbers 50001 to 50003 50001 to 50003 Router Router Icom radio Base station Remote station IP Adress: IP Adress: 192.168.0.100 192.168.0.100 When connecting to the network directly Default Gateway: Default Gateway:...

  • Page 41: For The Ic-7800 And Ic

    BEFORE USING REMOTE CONTROL SYSTEM ■ To allow access from the Internet (Continued) When connecting to the network through a PC When connecting to the network directly PC (Remote Utility) setting Radio setting 1. Enter the fixed IP address, if you use DHCP. •...
  • Page 42 BEFORE USING REMOTE CONTROL SYSTEM ■ To allow access from the Internet Router setting When connecting to the network directly Radio setting (Continued) Please refer to your router’s manual for details of how to configure the settings. • For the IC-7610 1.

  • Page 43: When Connecting To The Network Through A Pc

    DWhen connecting to the radio’s [RS-232C] port ....................... 19 ■ Radio’s presetting ................................21 DThe following manual settings are required when operating the RS-BA1 ................ 21 DThe following settings are automatically set to the radio ....................22 ■ Setting your PC’s environment ............................23 ■...

  • Page 44: Connecting The Radio To The Base Station's Pc

    Check the connector type on your radio and see the following chart to connect your radio to the Base station’s To connect an Icom CI-V command capable radio to the Base station’s PC, you have to make connections for control command and audio communication.

  • Page 45: Dwhen Connecting To The Radio's [Usb] Port

    • Icom CI-V command capable radio that has a [USB] USB cable. port (Type B/Mini-B) • This guide is based on using a Type B USB cable. • The USB cable (supplied to the RS-BA1 or a radio) METER REMOTE 2. Install a USB driver CAUTION: •...

  • Page 46: Dwhen Connecting To The Radio's [Remote] Jack

    3. Connect an audio system • A PC that has an RS-232C port Connect an audio cable between the PC’s audio port • Icom CI-V command capable radio that has a and the radio’s [ACC] socket or [MIC] connector to [REMOTE] jack enable audio communication between them.

  • Page 47: Dwhen Connecting To The Radio's [Rs-232C] Port

    2. Connect a remote control system • A PC that has an RS-232C port Connect an RS-232C cable between the radio and • Icom CI-V command capable radio that has an the base station’s PC. [RS-232C] port Radio (Rear panel) •...
  • Page 48 WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Conncting the radio to the Base station’s PC D When connecting to the radio’s [RS-232C] port (Continued) 3. Connect an audio system • Using other than the [S/P DIF] jack Radio Connect an audio cable between the PC’s audio port AF (Output) ...

  • Page 49: Radio's Presetting

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Radio’s presetting The RS-BA1 remotely controls Icom radios using CI-V (Icom Communication Interface) commands. See the CI-V command table in the radio’s instruction manual for details of the functions that can be controlled.

  • Page 50: D The Following Settings Are Automatically Set To The Radio

    D The following settings are automatically set to the radio When the RS-BA1’s Remote Controller connects to the radio, and you select the model name on the Connect Setting screen, the following may be automatically set, depending on the model. When you manually operate the radio, set these items as desired.

  • Page 51: Setting Your Pc's Environment

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Setting your PC’s environment Configure your PC’s environment in the Base station’s Remote Utility. The settings will take effect after rebooting the Remote Utility. When you first open the Remote Utility, the Settings screen appears. After configuring the settings, you can display other setting screens.

  • Page 52: Radio Registration

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Radio registration In the Base station’s Remote Utility, register the radios that are physically connected to your PC. See page 16 to connect a radio to your PC. Registered Radio List screen 1Click 1.
  • Page 53 WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Radio registration D To register a radio (Continued) Open the Register a Radio screen. Click <Add> to display the Register a Radio screen. Click Select the purpose of use of the radio. L If you register a radio by the Setup Wizard screen, this screen is not displayed.
  • Page 54 WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Radio registration D To register a radio (Continued) Set the CI-V/COM port settings. 1. Set the CI-V address, Baud rate, and COM Port Number. L If you select “USB” in Step.3, they are no necessary changes.
  • Page 55 WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Radio registration D To register a radio (Continued) Register a User to accept connection. 1. Click <Add>. 2. Enter a user ID of up to 16 characters, case- sensitive. L You cannot register an already registered ID. 3.
  • Page 56 WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Radio registration D To register a radio (Continued) Enter the radio name. 1. Enter the radio name. L The radio’s model name and the last 5 figures of the serial number is entered by default. 2.

  • Page 57: Dto Change A Radio Properties

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Radio registration (Continued) D To change a radio properties Options > Local/Server Settings > Registered Radio List 1. Select a radio. 2. Click <Properties>. 3. Change the settings, and then click <OK>. 1Click 2Click D To delete a radio...

  • Page 58: User Registration

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ User registration In the Base station’s Remote Utility, register users (Remote Stations) to allow them to access the Server. The Server verifies the user ID and password when users attempt to access the Server. If the User ID or password is incorrect, the Remote station cannot access the Server.

  • Page 59: Dto Add A User

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ User registration (Continued) D To add a user Options > Local/Server Settings > User Management List 1. Click <Add>. 2. Enter a user ID of up to 16 characters, case- sensitive. L You cannot register an already registered ID.

  • Page 60: Dto Allow A User To Use A Radio

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ User registration (Continued) D To allow a user to use a radio Options > Local/Server Settings > User Management List 1. Select a radio that you allow the user to use. 2.

  • Page 61: Dto Change A User Properties

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ User registration (Continued) D To change a user properties Options > Local/Server Settings > User Management List 1. Select a user. 2. Click <Properties>. 3. Change the settings, and then click <OK>. 1Select 2Click D To delete a user...

  • Page 62: To Monitor, Or Disconnect A Remote Station

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ To monitor, or disconnect a Remote station When you are operating as a Base station, and a Remote station is accessing a radio that is physically connected to your PC, you can monitor the received and transmitted audio. L To monitor, you should connect a speaker to your PC.

  • Page 63: Dto Terminate A Connection

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ To monitor, or disconnect a Remote station (Continued) D To terminate a connection 1. In the Base station’s or in the administrator Remote station’s Remote Utility, click the <Radio 1Click List> tab. 2.

  • Page 64: Connecting To A Radio From The Server

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Connecting to a radio from the Server When you are operating as a Base station, you can access a radio which is physically connected to your PC (Server). L For audio communication, you should connect a speaker and microphone, or headset to your PC. L To control the radio, connect to it using a control software.

  • Page 65: Ddisconnecting From A Radio

    WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Connecting to a radio from the Server (Continued) D Disconnecting from a radio 1. In the Base station’s Remote Utility, click the <Radio List> tab. 1Click 2. Select a radio with “<<Connected>>” under its name.

  • Page 66: Confirming Server Address Or Network Name

    The example below describes how to find out the PC (Server)’s computer name, or IP address, to be requested by Remote stations. Base station Remote station Router (Server) Icom radio IP address: 192.168.0.10 Request “192.168.0.10”(IP address) Computer name: Base PC or “Base PC”(Computer name) To let Remote stations access the Server using its computer name A computer name is used on networks to identify a particular workstation on the network.
  • Page 67 WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Confirming Server Address or Network Name D When configuring the remote control system through a LAN To let Remote stations access the Server using its computer name (continued) Windows 8.1 Windows 7 1.
  • Page 68 WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Confirming Server Address or Network Name D When configuring the remote control system through a LAN (continued) To let Remote stations access the Server using its IP address An IP address is a numerical label that is assigned to devices participating in a computer network. Find out your PC’s IP address to let Remote stations access the Server using it.
  • Page 69 WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Confirming Server Address or Network Name D When configuring the remote control system through a LAN To let Remote stations access the Server using its IP address (continued) Windows 8.1 1. Right-click the Network icon on the taskbar, and 4.
  • Page 70 WHEN CONNECTING TO THE NETWORK THROUGH A PC ■ Confi rming Server Address or Network Name D When confi guring the remote control system through a LAN To let Remote stations access the Server using its IP address (continued) Windows 7 1.

  • Page 71: D When Configuring The Remote Control System Through The Internet

    Ask the router’s manufacturer about how to configure your router to set the public IP address. Internet Internet IP address WAN: 888.888.888.888 Router Router LAN: 192.168.0.1 Remote station Base station (Server) Icom radio IP address: 192.168.0.100 Request “888.888.888.888” Computer name: Base PC (Public IP address)
  • Page 72 Dynamic DNS server Internet Internet Update with your dynamic IP address IP address WAN: 888.888.888.888 LAN: 192.168.0.1 Router Router Domain name Icom-rsba1.com Remote station Base station (Server) Icom radio Request “Icom-rsba1.com” IP address: 192.168.0.100 Computer name: Base PC (Domain name)

  • Page 73: When Connecting To The Network Directly

    • IC-7700 (Firmware version 2.00 or later) • IC-7610 If you use other Icom radio, skip this section and go to section 4. (p. 33) (As of August 2017) This section describes about the Base staion’s settings when connecting to the network directly.

  • Page 74: Radio's Presetting

    D The following settings are automatically set to the radio When the RS-BA1’s Remote Controller connects to the radio, and you select the model name on the Connect Set- ting screen, the following items are automatically set. When you manually operate the radio, set these items as desired.

  • Page 75: Network Setting

    WHEN CONNECTING TO THE NETWORK DIRECTLY ■ Network setting Configure the network environment of your radio (IC-7610, IC-7700 with firmware version 2.00 or later, IC-7800 with firmware version 3.00 or later, IC-7850, or IC-7851) in the Others set mode. The settings will take effect after rebooting the radio. •...
  • Page 76 WHEN CONNECTING TO THE NETWORK DIRECTLY ■ Network setting (Continued) • For the IC-7610 1. “Network Control” setting 3. “Control Port (UDP)” “Serial Port (UDP)” 1. Push [MENU] to display the MENU screen. “Audio Port (UDP)” confirmation 2. Touch [SET] to enter the Set mode. 3.

  • Page 77: User Registration

    WHEN CONNECTING TO THE NETWORK DIRECTLY ■ User registration In the set mode menu screen, register users (Remote To prevent unauthorized access: station) to allow them to access the Server. Set a long and strong password so that no one can The Server verifies the user ID and password when possibly guess it.
  • Page 78 WHEN CONNECTING TO THE NETWORK DIRECTLY ■ User registration D To register a user (Continued) • For the IC-7610 1. “User ID” setting 2. “Password” setting 1. Push [MENU] to display the MENU screen. 8. Touch “Network User1 Password.” 2. Touch [SET] to enter the Set mode. 9.

  • Page 79: Radio Registration

    WHEN CONNECTING TO THE NETWORK DIRECTLY ■ Radio registration In the set mode menu screen, register the radios to be used with the Server. D Radio’s basic information setting • Except for the IC-7610 • For the IC-7610 1. Hold down [EXIT/SET] for 1 second to select the 1.

  • Page 80: Dadjust Limitation Setting

    WHEN CONNECTING TO THE NETWORK DIRECTLY ■ Radio registration (Continued) D Adjust limitation setting Remote stations can adjust the sound quality or audio codec. Higher audio qualities will increase the amount of data, which can cause voice delay or jumpiness, depending on the network condition. The Server can limit the maximum level of the sound quality or audio codec.
  • Page 81 D Adjust limitation setting (continued) Standby mode setting To remotely control the transceiver using the RS-BA1, the transceiver’s power must be either turned ON or set in the standby mode. Follow the steps described below to set the transceiver in the standby mode.

  • Page 82: Confirming Server Address Or Network Name

    WHEN CONNECTING TO THE NETWORK DIRECTLY ■ Confirming Server Address or Network Name When you configure the remote system, Remote stations can access the Server using its IP address, computer name, network name, or domain name. D When configuring the remote control system through a LAN If you configure the remote control system through a LAN, Remote stations can access the Server using its IP address.
  • Page 83 WHEN CONNECTING TO THE NETWORK DIRECTLY ■ Confirming Server Address or Network Name D When configuring the remote control system through a LAN (continued) To let Remote stations access the Server using its network name A network name is an identification information assigned to each device participating in a computer network. Check your radio’s network name to let Remote stations access the Server.

  • Page 84: D When Configuring The Remote Control System Through The Internet

    WHEN CONNECTING TO THE NETWORK DIRECTLY ■ Confirming Server Address or Network Name (Continued) D When configuring the remote control system through the Internet If you configure the remote control system through the Internet, Remote stations can access the Server using its public IP address.
  • Page 85 IP address IP address WAN: 888.888.888.888 LAN: 192.168.0.1 Router Router Domain name Icom-rsba1.com IC-7851 Base station Remote station IC-7850 IC-7800 (firmware version 3.00 or later) IC-7700 (firmware version 2.00 or later) Request “Icom-rsba1.com” IC-7610 (Domain name) (Radio/Server) IP address: 192.168.0.10...

  • Page 86: Settings For A Remote Station Pc

    SETTINGS FOR A REMOTE STATION PC ■ Setting your PC’s environment Configure your PC’s environment in the Base station’s Remote Utility. The settings will take effect after rebooting the Remote Utility. When you first open the Remote Utility, the Settings screen appears. After configuring the settings, you can display other setting screens.

  • Page 87: Server Registration

    SETTINGS FOR A REMOTE STATION PC ■ Server Registration To connect to a radio through the network, Remote stations should first connect to a Server using the Remote Utility. Before connecting, register the Server information. D To add a Server Procedure Step 1: Open the Add a Server screen.
  • Page 88 SETTINGS FOR A REMOTE STATION PC ■ Server registration D To add a Server (Continued) Open the Add a Server screen. 1. Click the <Server List> tab. 1Click 2. Click <Add>. 2Click Enter the Server Information. 1. Enter the Server Address or Network Name. 2.
  • Page 89 SETTINGS FOR A REMOTE STATION PC ■ Server registration D To add a Server (Continued) Enter the User ID and Password. 1. Enter the user ID and password that are registered in the server. • When connecting to the network through a PC, enter the user ID and password that are registered in the Base station’s Remote Utility.

  • Page 90: Dto Change A Server Properties

    SETTINGS FOR A REMOTE STATION PC ■ Server registration (Continued) D To change a server properties 1. Click the <Server List> tab. 2. Select a server. 3. Click <Properties>. 1Click 4. Change the settings, and then click <OK>. 2Select 3Click D To delete a server 1.

  • Page 91: Connecting To The Server

    SETTINGS FOR A REMOTE STATION PC ■ Connecting to the Server D Connecting to the Server 1. Click the <Server List> tab. 2. Select a server. 3. Click <Connect>. 1Click • “Connected” is displayed under the Server name when the connection has succeeded. L If the connection fails, and an error screen is displayed, solve the problem using the “6.

  • Page 92: Connection Setting

    SETTINGS FOR A REMOTE STATION PC ■ Connection setting When the connection to the Server has succeeded, the radios that are physically connected to the Server are displayed on the Radio List screen of the Remote station’s Remote Utility. Select a radio from the list, then connect it to the network using the Remote Utility. You have to configure the network audio quality and devices to connect.

  • Page 93: Dnetwork Audio Quality Setting

    SETTINGS FOR A REMOTE STATION PC ■ Connection Setting (Continued) D Network audio quality setting Radio List > <Settings> 1. Click <Recommended>. • The Select Network screen appears. 2. Select the connection to a radio either through a LAN, or the Internet. 3.

  • Page 94: Connecting To A Radio

    SETTINGS FOR A REMOTE STATION PC ■ Connecting to a radio If the connection setting is finished, you can simply connect to the radio by selecting it in the Radio List screen and then clicking <Connect>. D Connecting to a radio 1.

  • Page 95: Audio Adjustment Using The Remote Utility

    SETTINGS FOR A REMOTE STATION PC ■ Audio adjustment using the Remote Utility While connected to a radio, you can adjust the received and transmit audio volume through the network using the Remote station’s Remote Utility. The description in this section is based on the assumption that the connection to the radio has succeeded (“<<Connected>>”...

  • Page 96: Dtransmit Audio Volume Adjustment

    SETTINGS FOR A REMOTE STATION PC ■ Audio adjustment using the Remote Utility (Continued) D Transmit audio volume adjustment 1. In the Remote station’s Remote Utility, open the Radio List screen. 1Click 2. Select a radio with “<<Connected>>” under its name.

  • Page 97: Recording And Playback Functions

    SETTINGS FOR A REMOTE STATION PC ■ Recording and playback functions While connected to a radio, you can record the received audio and save it into the PC’s hard disk using the Remote station’s Remote Utility. Also, you can transmit an audio file to the radio using the Remote Utility. The description in this section is based on the assumption that the connection to the radio has succeeded (“<<Connected>>”...

  • Page 98: Dplaying Back/Transmitting An Audio File

    SETTINGS FOR A REMOTE STATION PC ■ Recording and playback functions (Continued) D Playing back/transmitting an audio file 1. In the Remote station’s Remote Utility, open the Radio List screen. 1Click 2. Select a radio with “<<Connected>>” under its name. 3.

  • Page 99: Remote Controller's Basic Operation

    To use transmit audio input from the PC (p. 74) NOTE: See the RS-BA1 Remote Controller’s help file for remote operation details, such as how to change the frequency, or turn ON each function. To display the help file, click “Contents” in the Help menu on the Remote Controller, or push the [F1] key on your...

  • Page 100: Dconnecting To A Radio Through A Network

    To connect the radio using the Remote Utility, see page 36 when you are operating as the Server, or see page 66 when you are operating as a Remote station. 1. Double-click the “RS-BA1 Remote Control” icon 8. Click the icon in the toolbar as shown to on your desktop to open the Remote Controller.

  • Page 101: Ddirectly Connecting To A Radio

    • When you are operating a radio on the remote control system with the Remote Controller, without having used the Remote Utility to connect, let other users know that the radio is being used. 1. Double-click the “RS-BA1 Remote Control” icon 9. Click <OK> to save the settings, and close on your desktop to open the Remote Controller.

  • Page 102: Dto Use Transmit Audio Input From The Pc

    • See the Remote Controller’s help fi le for “Remote Setting” details. q Select w Adjust NOTE: DO NOT allow the PC to go into the sleep or standby mode while using the RS-BA1. Otherwise, it might not work properly after the PC resumes normal activity.

  • Page 103: To Exit The Remote Controller

    REMOTE CONTROLLER’S BASIC OPERATION ■ To exit the Remote Controller Follow the steps below to close and exit the remote control operation. 1. Disconnect the radio by clicking < > in the 5. If you are connecting the radio through the PC, Remote Controller.
  • Page 104 • There are items you cannot set, depending on the connected radio. • RS-BA1 is for the single band operation. • Knobs can be changed to sliders on the Set Mode screen for the volume, squelch settings and so on.

  • Page 105: Troubleshooting

    TROUBLESHOOTING The following descriptions are possible causes and solutions for the problem you are experiencing. If you cannot solve the problem after trying these solutions, please contact your nearest Icom Dealer or Service Center. Problem: Cannot access a Server from a Remote station with the Remote Utility L You can configure the Server information in the Server Propreties screen (Server List screen ➔...
  • Page 106 TROUBLESHOOTING Problem: Cannot access a radio with the Remote Utility The description in this part is based on the assumption that the connection to the Server has succeeded. (“Connected” is displayed under the Server name.) ❍ “Busy” is displayed under the radio name Possible cause Another user is currently operating the radio.
  • Page 107 TROUBLESHOOTING Problem: Cannot access a radio with the Remote Utility (Continued) The description in this part is based on the assumption that the connection to the Server has succeeded. (“Connected” is displayed under the Server name.) ❍ “COM/Audio Error” is displayed under the radio name The following messages are displayed for all possible causes described below.
  • Page 108 TROUBLESHOOTING Problem: Cannot access a radio with the Remote Controller To access a radio with the Remote Controller, configure the connection settings in the Connect Setting screen. (pp. 72, 73) Click the Connect Setting icon ( ) on the toolbar, or click “Connect Setting...”...
  • Page 109 The same CI-V address is being used by a control software other than the Remote Controller. Solution S elect an address other than “E0” in the CI-V Address (RS-BA1) menu in the Remote Controller’s Connect Setting screen. However, this solution does not always solve the problem.
  • Page 110 TROUBLESHOOTING NOTE: If you could not solve the problem after trying the solutions described on the previous page, check the following on the Base station side. When connecting to the network through a PC • Is the volume level of the audio device to which the radio is connected set to an appropriate level? When connecting to the network directly •...
  • Page 111 TROUBLESHOOTING Problem: The received audio is interrupted Possible cause 1 The network data transfer is excessive. Solution S elect a lower sampling rate value in the Sample Rates menu, or a different codec in the Codecs menu, in the Connect Settings screen. (Radio List screen ➔ <Settings>) First, select the lowest value.
