REMOTE CONTROLLER'S BASIC OPERATION

■ To exit the Remote Controller

Follow the steps below to close and exit the remote control operation.
1. Disconnect the radio by clicking <
Remote Controller.
2. Close the Remote Controller.
3. Disconnect the radio connected to the Remote
Utility on the Remote Station.
4. Close the Remote Station on the Remote Utility.

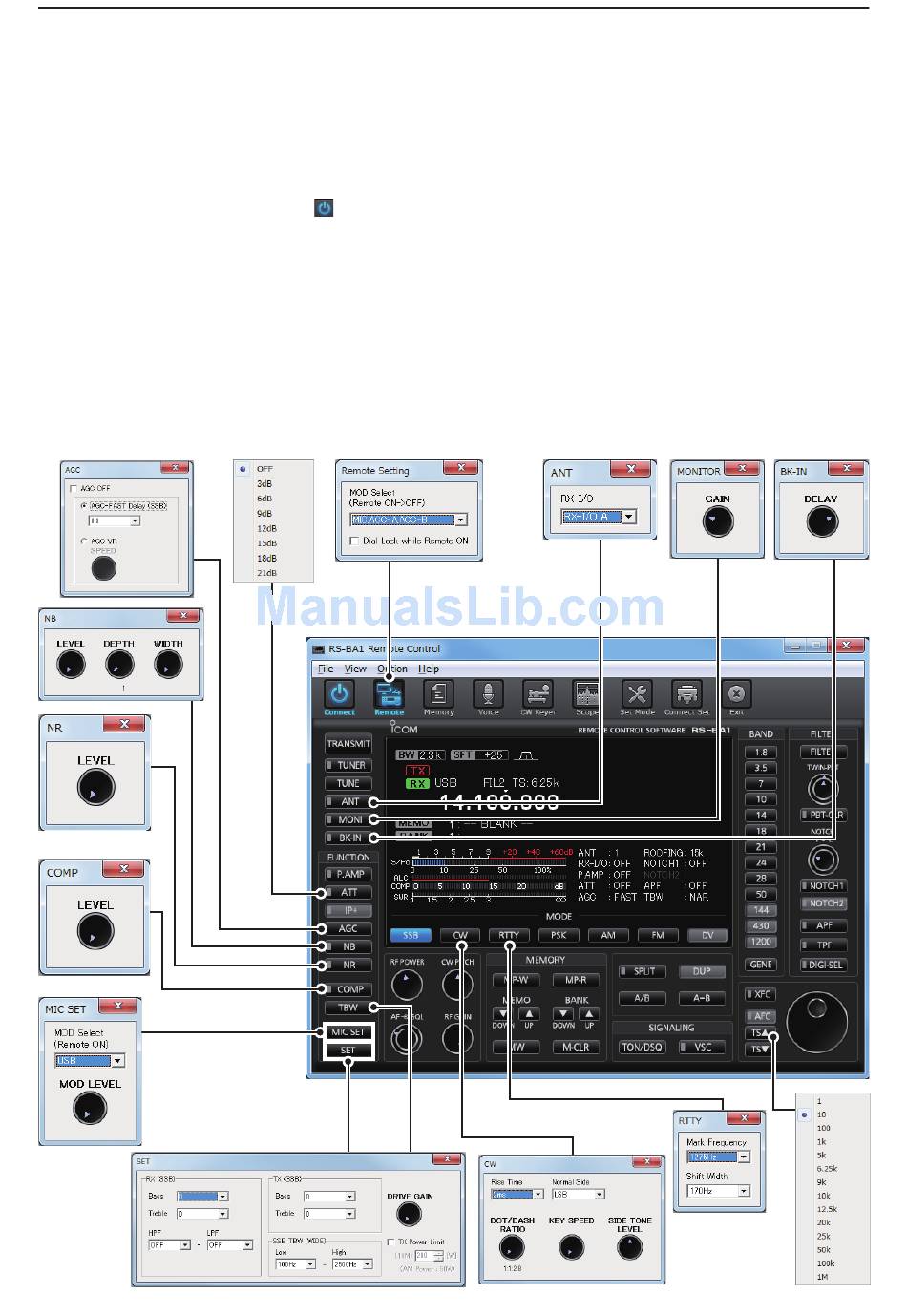

■ Operating guide

The following windows are displayed by 'right-clicking' on each button on the Remote Controller.
• The windows that are displayed by 'left-clicking,' the buttons are marked in white (Example: MIC SET).
> in the 5. If you are connecting the radio through the PC,
close the Remote Utility on the Base Station.
6. Turn OFF the Radio and the PC.
• If you are using a radio that can be turned ON or OFF
75
with the CI-V Power ON/OFF command, the radio is
turned OFF when the radio is disconnected using the
Remote Controller.
