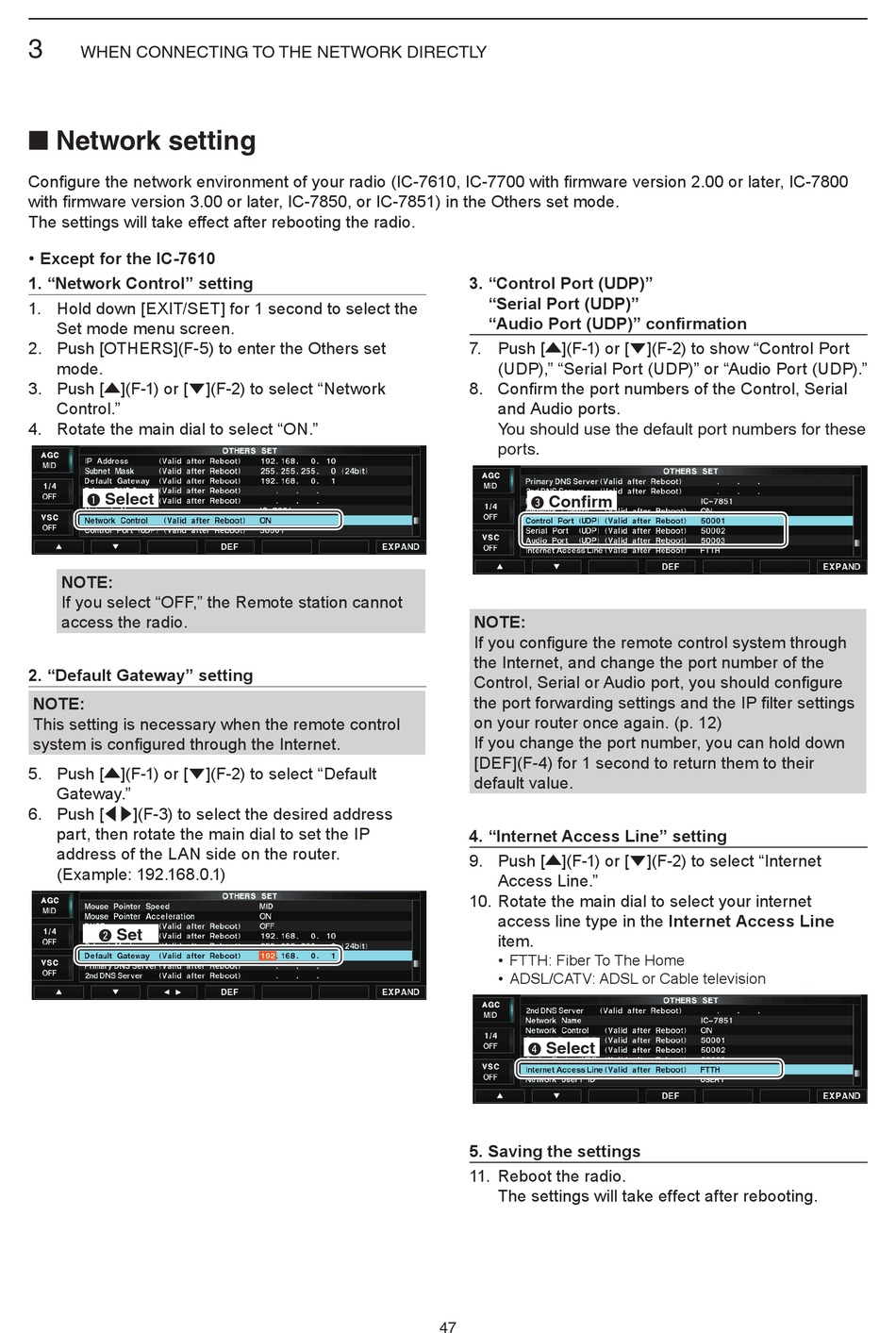

WHEN CONNECTING TO THE NETWORK DIRECTLY

■ Network setting

Configure the network environment of your radio (IC-7610, IC-7700 with firmware version 2.00 or later, IC-7800
with firmware version 3.00 or later, IC-7850, or IC-7851) in the Others set mode.
The settings will take effect after rebooting the radio.
• Except for the IC-7610
1. "Network Control" setting
1. Hold down [EXIT/SET] for 1 second to select the
Set mode menu screen.
2. Push [OTHERS](F-5) to enter the Others set
mode.
3. Push [▲](F-1) or [▼](F-2) to select "Network
Control."
4. Rotate the main dial to select "ON."
Select
q
NOTE:
If you select "OFF," the Remote station cannot
access the radio.
2. "Default Gateway" setting
NOTE:
This setting is necessary when the remote control
system is configured through the Internet.
5. Push [▲](F-1) or [▼](F-2) to select "Default
Gateway."
6. Push [◀▶](F-3) to select the desired address
part, then rotate the main dial to set the IP
address of the LAN side on the router.
(Example: 192.168.0.1)
Set
w
3. "Control Port (UDP)"
"Serial Port (UDP)"
"Audio Port (UDP)" confirmation
7. Push [▲](F-1) or [▼](F-2) to show "Control Port
(UDP)," "Serial Port (UDP)" or "Audio Port (UDP)."
8. Confirm the port numbers of the Control, Serial
and Audio ports.
You should use the default port numbers for these
ports.
Confirm
e
NOTE:
If you configure the remote control system through
the Internet, and change the port number of the
Control, Serial or Audio port, you should configure
the port forwarding settings and the IP filter settings
on your router once again. (p. 12)
If you change the port number, you can hold down
[DEF](F-4) for 1 second to return them to their
default value.
4. "Internet Access Line" setting
9. Push [▲](F-1) or [▼](F-2) to select "Internet
Access Line."
10. Rotate the main dial to select your internet
access line type in the Internet Access Line
item.
• FTTH: Fiber To The Home
• ADSL/CATV: ADSL or Cable television
Select
r
5. Saving the settings
11. Reboot the radio.
The settings will take effect after rebooting.
