WHEN CONNECTING TO THE NETWORK DIRECTLY
■ Radio registration (Continued)
D Adjust limitation setting
Remote stations can adjust the sound quality or audio codec. Higher audio qualities will increase the amount of
data, which can cause voice delay or jumpiness, depending on the network condition.
The Server can limit the maximum level of the sound quality or audio codec.
Remote stations cannot program higher values than the values programmed here.
• The following settings are not included with the IC-7851, IC-7850, and IC-7610. However, the settings are
originally fixed in those transceivers.
1. Hold down [EXIT/SET] for 1 second to select the
Set mode menu screen.

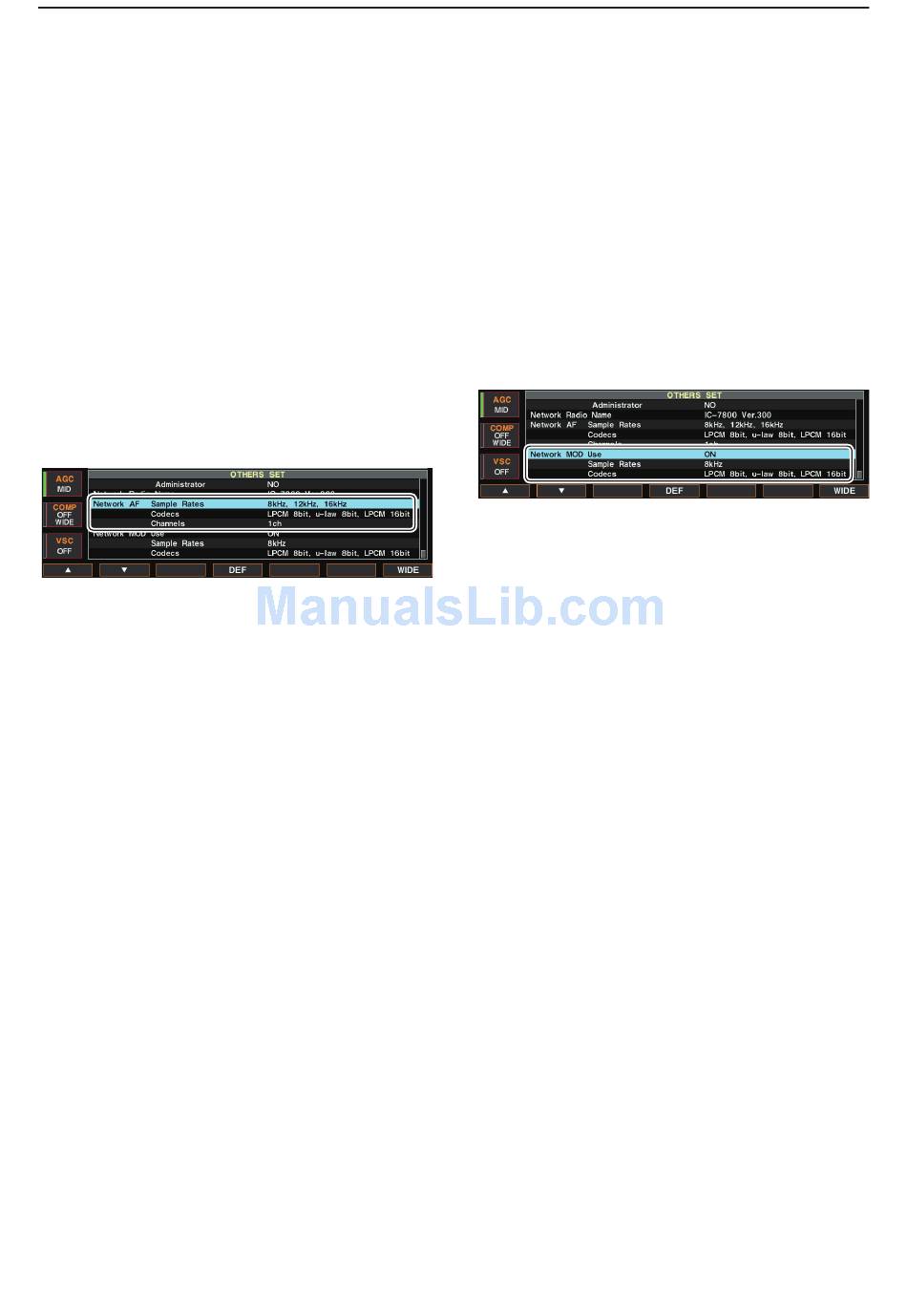

2. Push [OTHERS](F-5) to enter the Others set
mode.
3. Push [▲](F-1) or [▼](F-2) to select "Network AF
Sample Rate."
4. Rotate the main dial to limit the received audio
sampling rate that Remote stations can adjust.
Higher sampling rates will improve the audio
quality. However, they also increase the
amount of data, which can cause voice delay or
jumpiness, depending on the network condition.
Lower sampling rates will decrease the audio
quality. However, they also decrease the amount
of data.
• For the IC-7851, IC-7850, and IC-7610, the rates are
fixed to:
8kHz, 12kHz, 16kHz, 24kHz, 48kHz.
5. Push [▲](F-1) or [▼](F-2) to select "Network AF
Codecs."
6. Rotate the main dial to limit the received audio
codec that Remote stations can adjust.
• For the IC-7851, IC-7850, and IC-7610, the codecs
are fixed to:
LPCM 8bit, u-law 8bit, LPCM 16bit.
7. Push [▲](F-1) or [▼](F-2) to select "Network AF
Channels."
8. Rotate the main dial to select whether or not to
allow Remote stations to select stereo sound.
When you select "1ch" (monaural), Remote
stations cannot program "2ch" (stereo).
If the Remote station selects "2ch," stereo output
(L=Main band; R=Sub band).
• For the IC-7851, IC-7850, and IC-7610, the channel
is fixed to "2ch."
9. Push [▲](F-1) or [▼](F-2) to select "Network
MOD Use."
10. Confirm that "ON" is selected in "Network MOD
Use."
• For the IC-7851, IC-7850, and IC-7610, the function
is fixed to "ON."
11. Push [▲](F-1) or [▼](F-2) to select "Network
MOD Sample Rate."
12. Rotate the main dial to limit the modulation audio
sampling rate that Remote stations can adjust.
Higher sampling rates will improve the audio
quality. However, they also increase the
amount of data, which can cause voice delay or
jumpiness, depending on the network condition.
Lower sampling rates will decrease the audio
quality. However, they also decrease the amount
of data.
• For the IC-7851, IC-7850, and IC-7610, the rates are
fixed to:
8kHz, 12kHz, 16kHz, 24kHz, 48kHz
13. Push [▲](F-1) or [▼](F-2) to select "Network
MOD Codecs."
14. Rotate the main dial to limit the modulation audio
codec that Remote stations can adjust.
• For the IC-7851, IC-7850, and IC-7610, the codecs
are fixed to:
LPCM 8bit, u-law 8bit, LPCM 16bit.
15. Push [EXIT/SET] twice to exit the Set mode.
