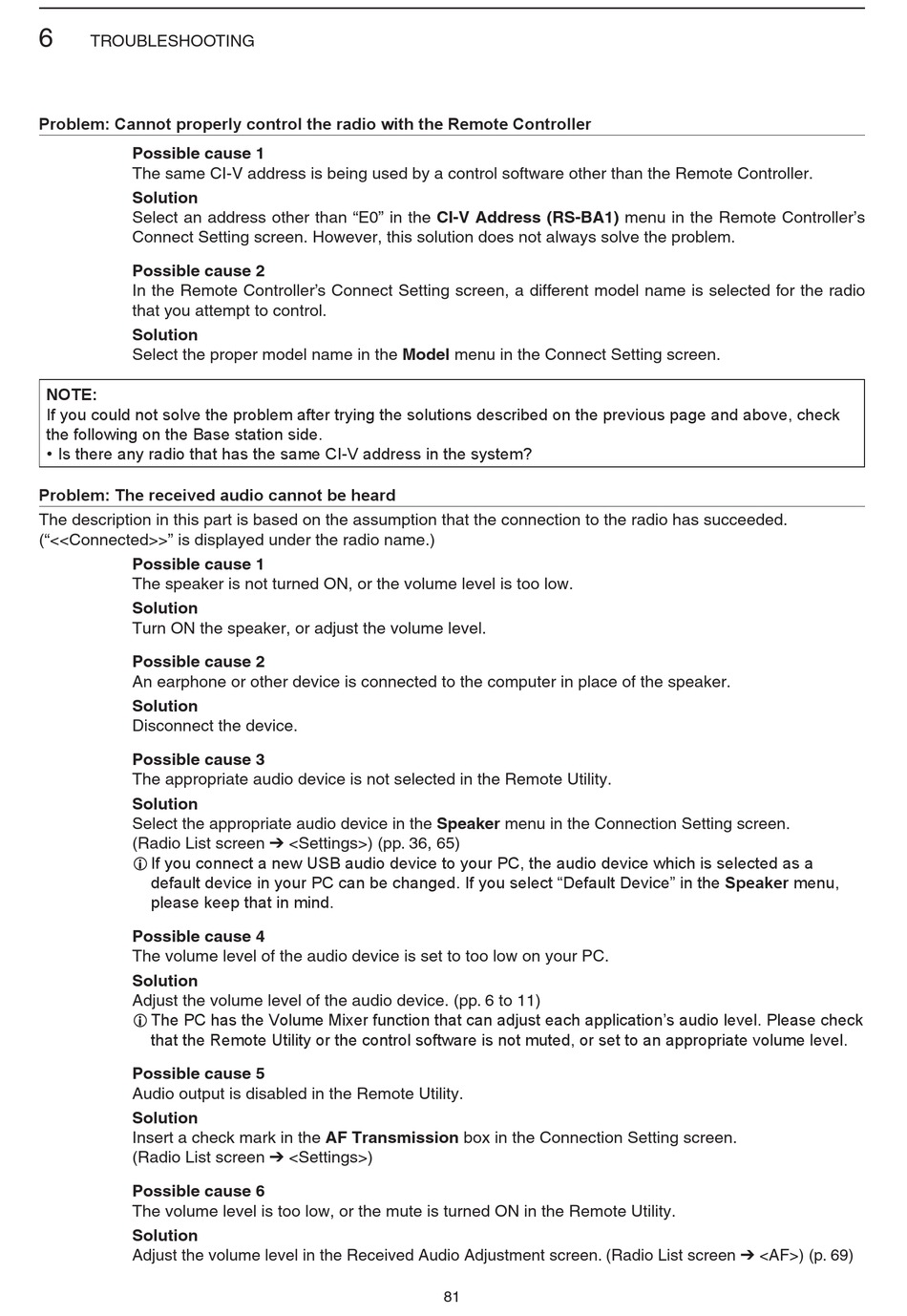

Icom RS-BA1 Installation Manual page 109

6
TROUBLESHOOTING
Problem: Cannot properly control the radio with the Remote Controller
Possible cause 1
The same CI-V address is being used by a control software other than the Remote Controller.
Solution
S elect an address other than "E0" in the CI-V Address (RS-BA1) menu in the Remote Controller's
Connect Setting screen. However, this solution does not always solve the problem.
Possible cause 2
In the Remote Controller's Connect Setting screen, a different model name is selected for the radio
that you attempt to control.
Solution
S elect the proper model name in the Model menu in the Connect Setting screen.
NOTE:
If you could not solve the problem after trying the solutions described on the previous page and above, check
the following on the Base station side.
• Is there any radio that has the same CI-V address in the system?
Problem: The received audio cannot be heard
The description in this part is based on the assumption that the connection to the radio has succeeded.
("<<Connected>>" is displayed under the radio name.)
Possible cause 1
The speaker is not turned ON, or the volume level is too low.
Solution
T urn ON the speaker, or adjust the volume level.
Possible cause 2
An earphone or other device is connected to the computer in place of the speaker.
Solution
D isconnect the device.
Possible cause 3
The appropriate audio device is not selected in the Remote Utility.
Solution
S elect the appropriate audio device in the Speaker menu in the Connection Setting screen.
(Radio List screen ➔ <Settings>) (pp. 36, 65)
L If you connect a new USB audio device to your PC, the audio device which is selected as a
default device in your PC can be changed. If you select "Default Device" in the Speaker menu,
please keep that in mind.
Possible cause 4
The volume level of the audio device is set to too low on your PC.
Solution
A djust the volume level of the audio device. (pp. 6 to 11)
L The PC has the Volume Mixer function that can adjust each application's audio level. Please check
that the Remote Utility or the control software is not muted, or set to an appropriate volume level.
Possible cause 5
Audio output is disabled in the Remote Utility.
Solution
I nsert a check mark in the AF Transmission box in the Connection Setting screen.
(Radio List screen ➔ <Settings>)
Possible cause 6
The volume level is too low, or the mute is turned ON in the Remote Utility.
Solution
A djust the volume level in the Received Audio Adjustment screen. (Radio List screen ➔ <AF>) (p. 69)
81
