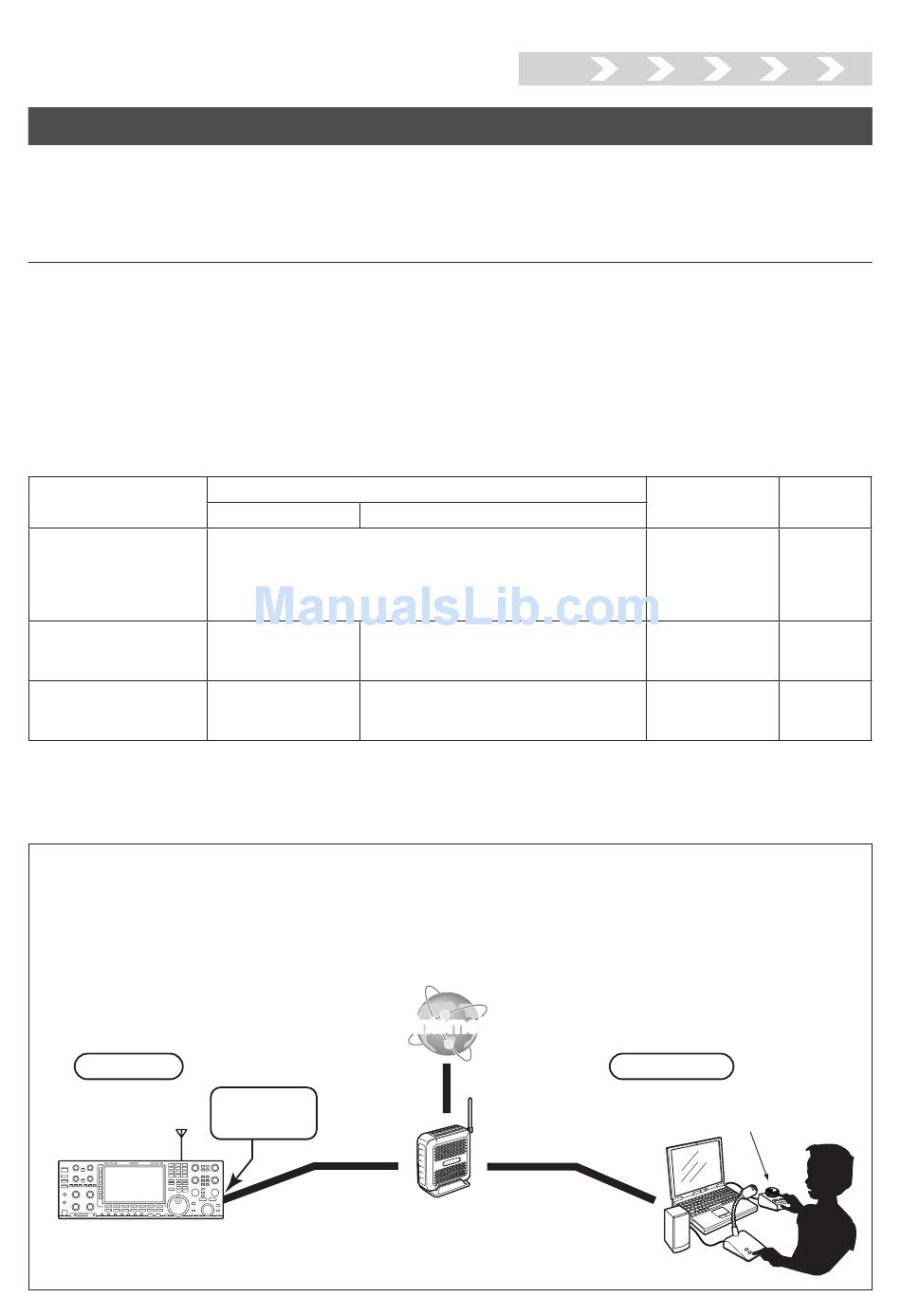

Icom RS-BA1 Installation Manual page 2

Installtion guide A
Step1. Connect the radio to the Base station's PC
Before connecting the radio to the PC, please finish the installation for the Base station's PC and the Remote
station's PC, using the RS-BA1 Preparations.
Select the connection pattern
Check the connector type on your radio and see the following chart to connect your radio to the Base station's
PC.
To connect an Icom CI-V command capable radio to the Base station's PC, you have to make connections for
control command and audio communication.
RS-BA1 operation with the Base station's PC connected to the radio's ACC socket, MIC connector, or S/P DIF
jack for audio communication cannot be guaranteed.
• This guide explains the USB connection as example. See the RS-BA1 Instruction Manual ("2. WHEN
CONNECTING TO THE NETWORK THROUGH A PC" section) when connecting to the radio's [REMOTE] jack
or [RS-232C] port.
Radio's connector
When connecting to the
radio's [USB] port
When connecting to the
radio's [REMOTE] jack
When connecting to the
radio's [RS-232C] port
* When you turn your radio ON or OFF from the Remote Controller, connect to the radio's [Remote] jack.
1
* When you turn your radio ON or OFF from the Remote Controller, connect to the radio's [Remote] jack or to the network
2
directly.
The Network function enables the radio to directly connect to the network. With this function, the base station PC is not
necessary. See the Installation guide B (For radios with the Network function).
Radios with the Network function
• IC-7851
• IC-7850
• IC-7800 (Firmware version 3.00 or later)
• IC-7700 (Firmware version 2.00 or later)
• IC-7610
Base station
A radio with the server function
Control command
Through a USB cable
Through an audio cable connected between
Through the CT-17 -
ci v
the PC's audio terminal and the radio's [ACC]
level converter
socket or [MIC] connector
Through an audio cable connected between
Through an RS-232C
the PC's audio terminal and the radio's [ACC]
cable
socket, [MIC] connector or [S/P DIF] jack
Connect to
the LAN port
Step1.
Outline
Audio
Internet Internet
Router
A-2
2. 3. 4.
Model
IC-7100/IC-7200/
IC-7300/IC-7410/
IC-7600* /IC-7610/
1
IC-7850/IC-7851/
IC-9100
All
IC-7700/IC-7800*2
(As of August 2017)
Remote station
RC-28
(Optional)
5. 6.
Ref.
p. A-3
RS-BA1
Instruction
Manual
RS-BA1
Instruction
Manual
