WHEN CONNECTING TO THE NETWORK THROUGH A PC
■ To monitor, or disconnect a Remote station (Continued)

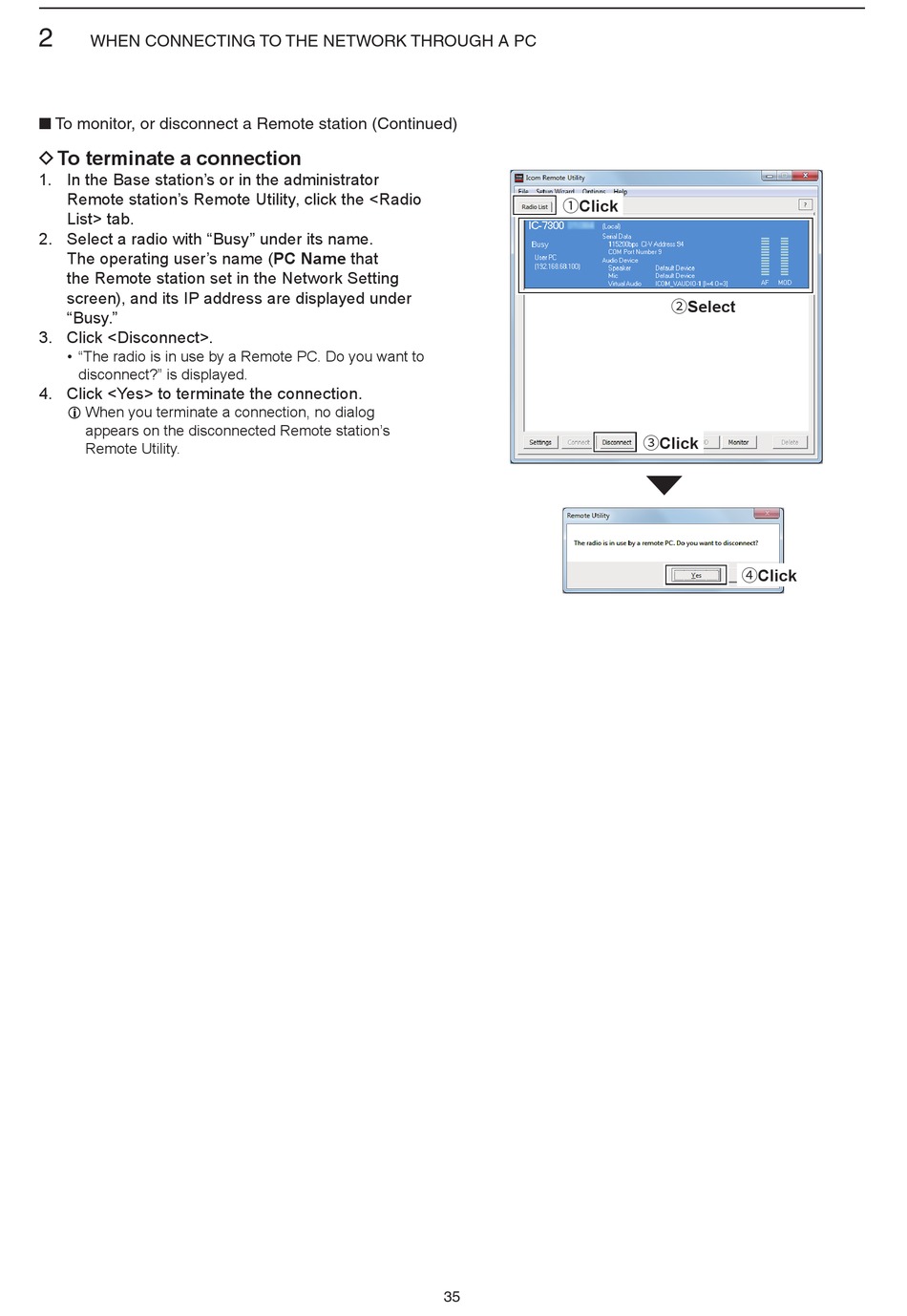

D To terminate a connection
1. In the Base station's or in the administrator
Remote station's Remote Utility, click the <Radio
List> tab.
2. Select a radio with "Busy" under its name.
The operating user's name (PC Name that
the Remote station set in the Network Setting
screen), and its IP address are displayed under
"Busy."
3. Click <Disconnect>.
• "The radio is in use by a Remote PC. Do you want to
disconnect?" is displayed.
4. Click <Yes> to terminate the connection.
L When you terminate a connection, no dialog
appears on the disconnected Remote station's
Remote Utility.
1Click
35
2Select
3Click
4Click
