Icom RS-BA1 Installation Manual page 14

This guide contains instructions on how to configure the remote control system, and how to remotely control a
radio with the Network function*.
Before reading this guide, please finish the installation, using the RS-BA1 Preparations.
See the RS-BA1 Instruction Manual for detailed instructions.
*Radios with the Network function
• IC-7851
• IC-7850
• IC-7800 (Firmware version 3.00 or later)
• IC-7700 (Firmware version 2.00 or later)
• IC-7610
If you use other Icom radio, see the Installation guide A.

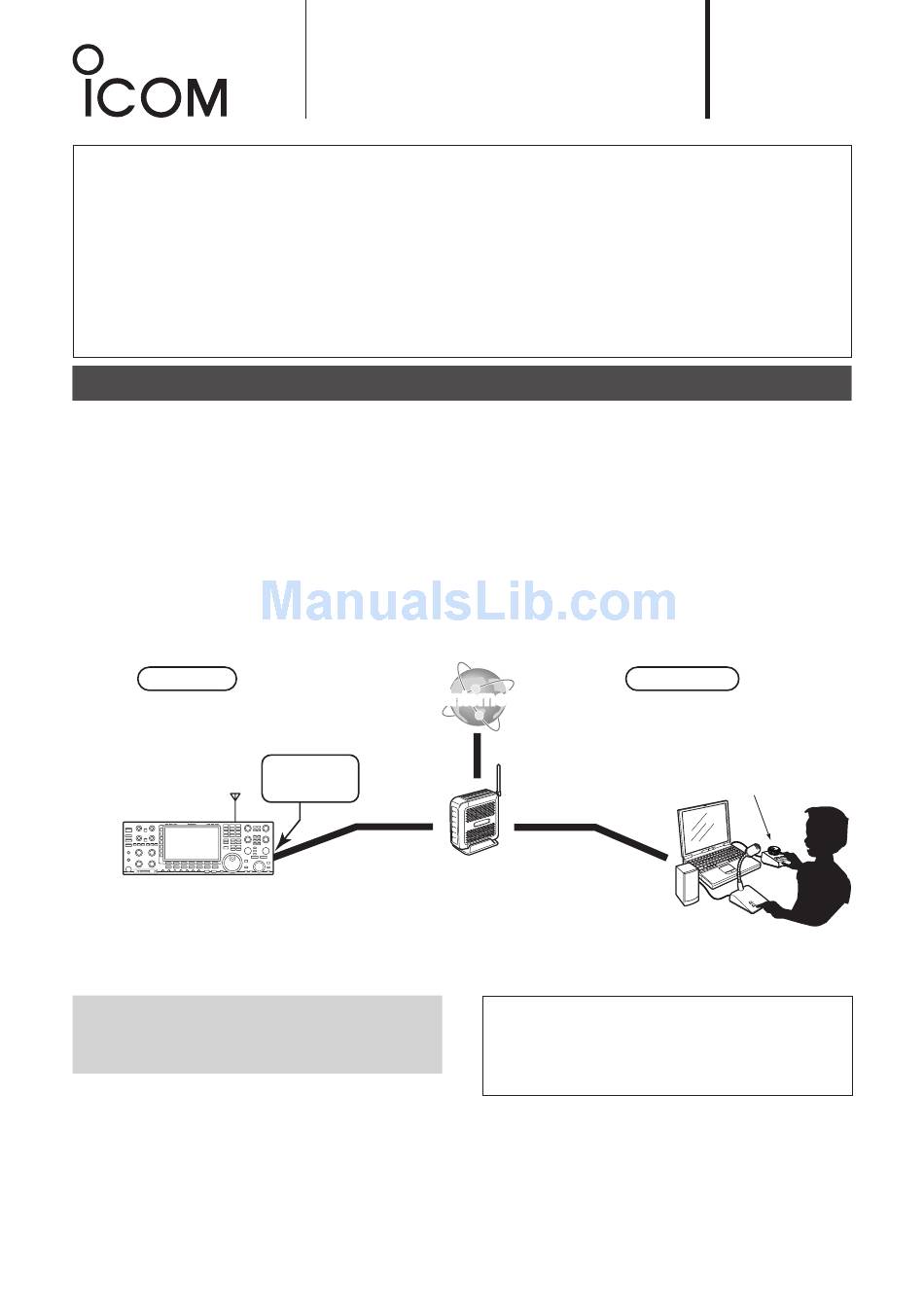

Example of the remote control system
This guide explains the minimum required settings to configure a remote control system, taking the following
illustration as an example. In this example, a Remote station remotely controls a Base station radio through the
network.
• We recommend that you place the Remote station's PC near the Base station to check that the settings are
correct, and that you can correctly control the radio.
• Only users whose ID and password are registered on the Base station can access the Base station radio. BE
CAREFUL in managing IDs and passwords.
• See the Instruction Manual for detailed instructions on the RS-BA1.
You can also refer to each software's help file for assistance with the functions and settings.
While the software is open, push the [F1] key of the PC's keyboard to open the help file.
These instructions are based on using the IC-7851.
Base station
Network Radio Name:
IC-7851abc
CI-V address:
8Eh
Baud rate:
Auto
IC-7851
IP address: 192.168.0.10
A radio with the server function
NOTE:
The user ID, password, and other settings in this
illustration are only an example. Please configure
the system using your own settings.
RS-BA1 For radio with the Network function RS-BA1 For radio with the Network function
Installation guide B Installation guide B
Connect to
the LAN port
IP address: 192.168.0.1
Internet Internet
PC Name:
User ID:
Password:
Router
For your convenience:
If you use an RC-28
Remote station, you can use the RS-BA1 and feel
like you are operating the actual radio's main dial,
[TRANSMIT] key and so on.
B-1
(As of August 2017)
Remote station
User PC
USER1
USER0001
RC-28
(Optional)
at the
remote encoder
