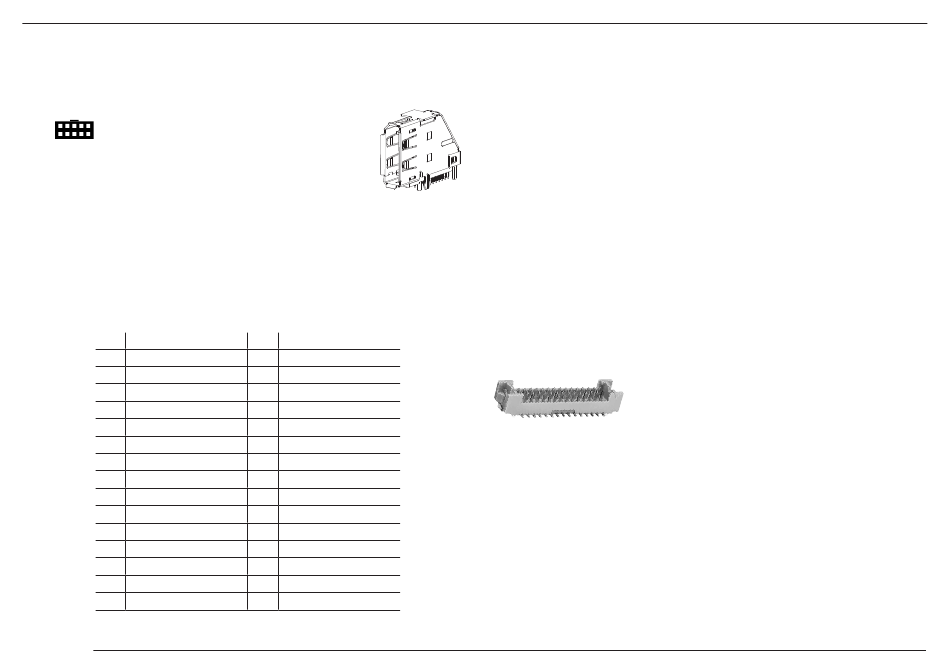

Display Port Interface DP++

The conga-PA5 SBC has one DP++ connector (X5) located at the rear I/O panel. The display port supports DP displays and HDMI / DVI
adapters.
Connector Type
X5: 20 pin DisplayPort connector
5.7.2

LVDS

The conga-PA5 offers LVDS interface on connector X3 - a 40 pin LVDS connector. The LVDS signals are sourced from the SoC's eDP stream
via an eDP to LVDS bridge IC. The eDP to LVDS bridge processes incoming DisplayPort stream and converts the DP protocol to LVDS, before
transmitting the processed stream in LVDS format.
The LVDS interface is found on the top side of the SBC and supports 18 or 24 bit single/dual channel, selectable backlight voltage, VESA color
mappings, automatic panel detection and resolution up to 1920x1200 at 60 Hz in dual LVDS mode.Connector X3 Pinout Description.
Pin Signal
1 GND
3 LVDS_ODD_TX3P
5 LVDS_ODD_TX3N
7 GND
9 LVDS_ODD_TX2P
11 LVDS_ODD_TX2N
13 GND
15 LVDS_ODD_TX1P
17 LVDS_ODD_TX1N
19 GND
21 LVDS_ODD_TX0P
23 LVDS_ODD_TX0N
25 GND
27 LVDS_ODD_CLKP
29 LVDS_ODD_CLKN
Copyright © 2017 congatec AG
DP++ - Connector X5
Pin Signal
2 GND
4 LVDS_EVEN_TX3P
6 LVDS_EVEN_TX3N
8 GND
10 LVDS_EVEN_TX2P
12 LVDS_EVEN_TX2N
14 GND
16 LVDS_EVEN_TX1P
18 LVDS_EVEN_TX1N
20 GND
22 LVDS_EVEN_TX0P
24 LVDS_EVEN_TX0N
26 GND
28 LVDS_EVEN_CLKP
30 LVDS_EVEN_CLKN
LVDS Connector X3
PA50m01 30/46
