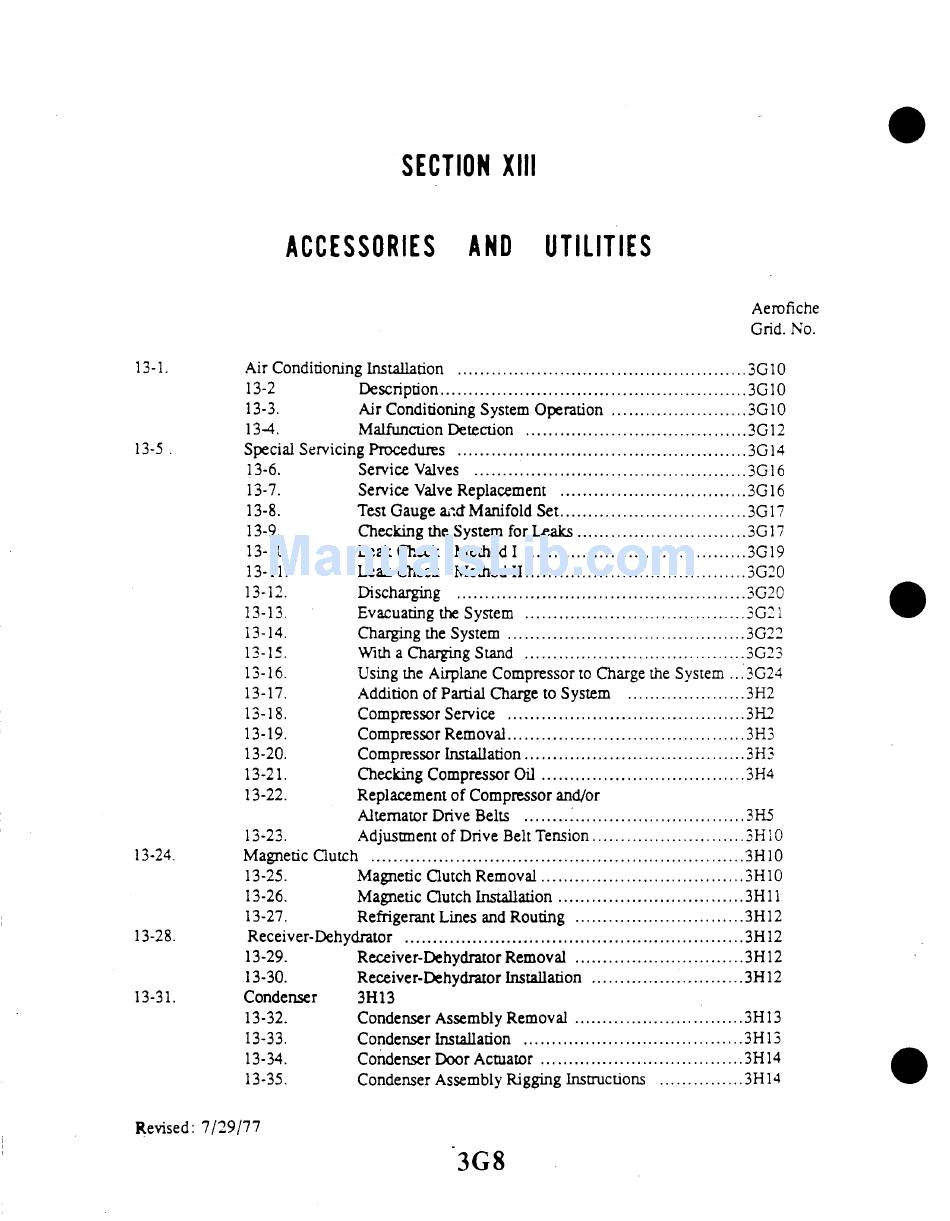

SECTION XIII
ACCESSORIES AND UTILITIES
Aerofiche
Grid. No.
13-1. Air Conditioning Installation ...................................................
3G10
13-2 Description ......... ......................................
3G 10
13-3. Air Conditioning System Operation ........................
3G10
13-4.
Malfunction Detection ....................................... 3G12
13-5 . Special Servicing Procedures ..................................................
3G 14
13-6. Service Valves .................... ... ................. 3G 16
13-7. Service Valve Replacement .................................
3G16
13-8.
Test Gauge and Manifold Set ......... ................... 3G17
13-9. Checking the System for Leaks .............................. 3G17
13-10. Leak Check - Method I ............. ....................... 3G19
13-11. Leak Check - Method II ....................................... 3G20
13-12. Discharging ........................................ 3G2
13-13. Evacuating the System .......................................
3G21
13-14.
Charging the System ....................................... 3G22
13-15. With a Charging Stand ....................................... 3G23
13-16. Using the Airplane Compressor to Charge the System ...3G24
13-17. Addition of Partial Charge to System ..................... 3H2
13-18. Compressor Service ........................................ 3H2
13-19. Compressor Removal .......................................... 3H3
13-20. Compressor Installation.......................................3H3
13-21. Checking Compressor Oil ................................... 3H4
13-22. Replacement of Compressor and/or
Alternator Drive Belts ...................................... 3 5
13-23. Adjustment of Drive Belt Tension ........................... 3H 10
13-24.
Magnetic Clutch .......... ................... ........................ 3H10
13-25. Magnetic Clutch Removal ....................................
3H10
13-26. Magnetic Clutch Installation ................................. 3H11
13-27. Refrigerant Lines and Routing .............................. 3H12
13-28.
Receiver-Dehydrator ............................................................ 3H12
13-29. Receiver-Dehydrator Removal .............................. 3H12
13-30.
Receiver-Dehydrator Installation ........................... 3H12
13-31. Condenser 3H13
13-32. Condenser Assembly Removal .............................. 3H13
13-33. Condenser Installation ....................................... 3H13
13-34. Condenser Door Actuator .................................... 3H14
13-35.
Condenser Assembly Rigging Instructions ............... 3H14
Revised: 7/29/77
3G8
