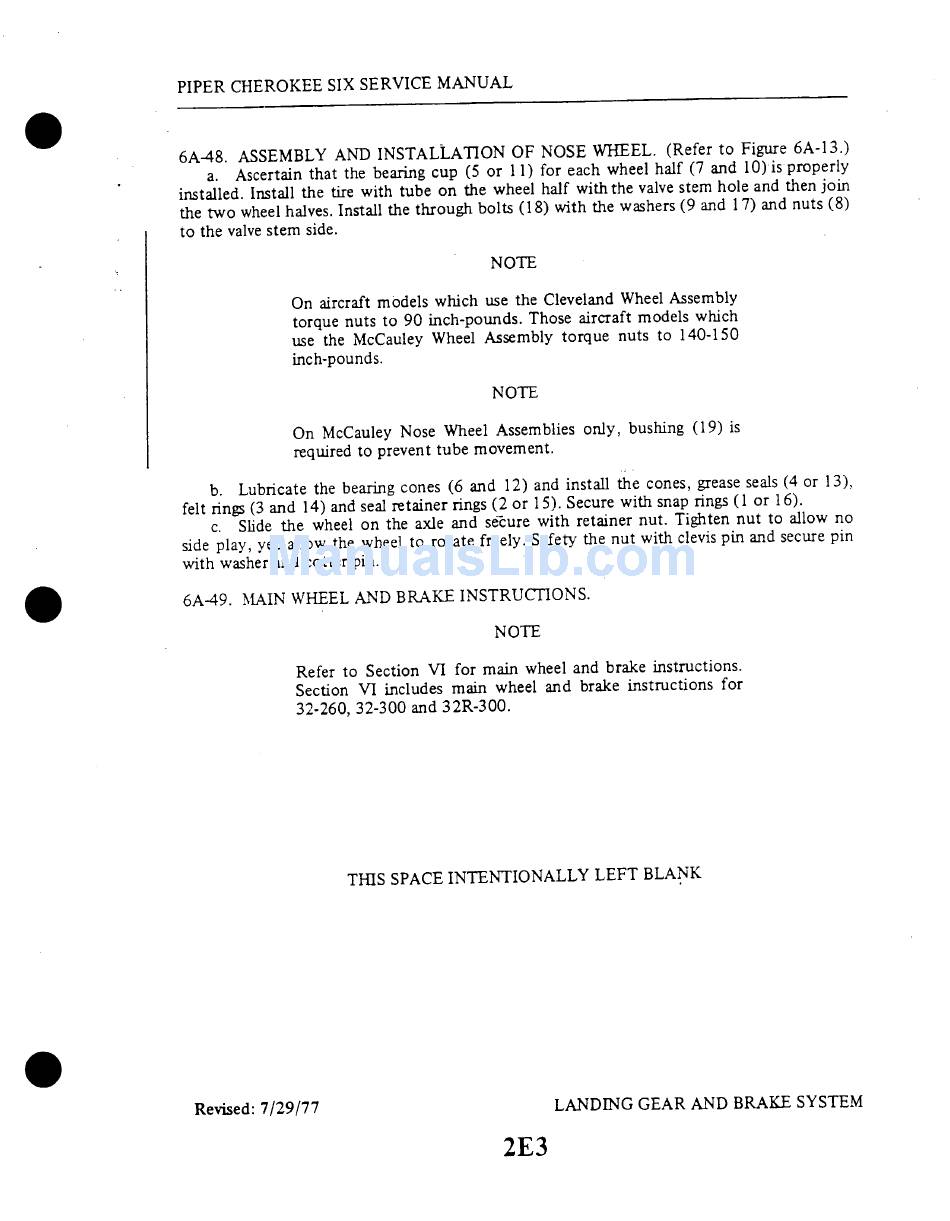

6A48. ASSEMBLY AND INSTALLATION OF NOSE WHEEL. (Refer to Figure
6A-13.)
a. Ascertain that the bearing cup (5 or 11) for each wheel half (7 and 10) is properly
installed. Install the tire with tube on the wheel half with the valve stem hole and then
join
the two wheel halves. Install the through bolts (18) with the washers (9 and 17) and
nuts (8)
to the valve stem side.
NOTE
On aircraft models which use the Cleveland Wheel Assembly
torque nuts to 90 inch-pounds. Those aircraft models which
use the McCauley Wheel Assembly torque nuts to 140-150
inch-pounds.
NOTE
On McCauley Nose Wheel Assemblies only, bushing (19) is
required to prevent tube movement.
b. Lubricate the bearing cones (6 and 12) and install the cones, grease seals (4 or
13),
felt rings (3 and 14) and seal retainer rings (2 or 15). Secure with snap rings (1 or 16).
c. Slide the wheel on the axle and secure with retainer nut. Tighten nut to allow
no
side play, yet allow the wheel to rotate freely. Safety the nut with clevis pin and secure
pin
with washer and cotter pin.
6A-49. MAIN WHEEL AND BRAKE INSTRUCTIONS.
NOTE
Refer to Section VI for main wheel and brake instructions.
Section VI includes main wheel and brake instructions for
32-260, 32-300 and 32R-300.
