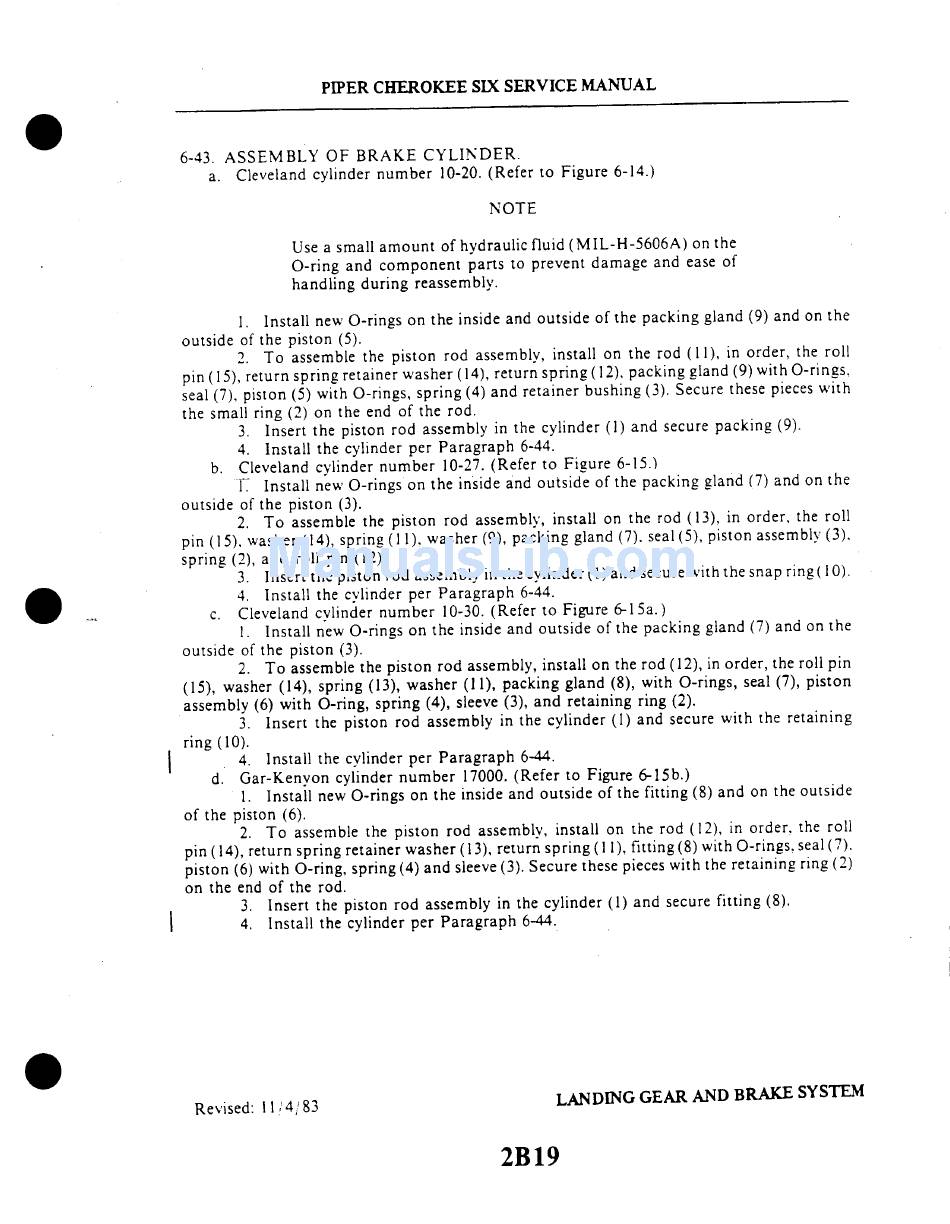

PIPER CHEROKEE SIX SERVICE MANUAL
6-43. ASSEMBLY OF BRAKE CYLINDER.
a. Cleveland cylinder number 10-20. (Refer to Figure 6-14.)
NOTE
Use a small amount of hydraulic fluid (MIL-H-5606A) on the
O-ring and component parts to prevent damage and ease of
handling during reassembly.
1. Install new O-rings on the inside and outside of the packing gland (9) and on the
outside of the piston (5).
2. To assemble the piston rod assembly, install on the rod (II), in order, the roll
pin (15), return spring retainer washer (14), return spring (12), packing gland (9) with O-rings.
seal (7). piston (5) with O-rings, spring (4) and retainer bushing (3). Secure these pieces with
the small ring (2) on the end of the rod.
3. Insert the piston rod assembly in the cylinder (1) and secure packing (9).
4. Install the cylinder per Paragraph 6-44.
b. Cleveland cylinder number 10-27. (Refer to Figure 6-15.)
1. Install new O-rings on the inside and outside of the packing gland (7) and on the
outside of the piston (3).
2. To assemble the piston rod assembly, install on the rod (13), in order, the roll
pin (15), washer (14), spring (11). washer (9), packing gland (7). seal (5), piston assembly (3).
spring (2), and roll pin (12).
3. Insert the piston rod assembly in the cylinder () and secure with the snap ring (10).
4. Install the cylinder per Paragraph 6-44.
c. Cleveland cylinder number 10-30. (Refer to Figure 6-15a.)
1. Install new O-rings on the inside and outside of the packing gland (7) and on the
outside of the piston (3).
2. To assemble the piston rod assembly, install on the rod (12), in order, the roll pin
(15), washer (14), spring (13), washer (11), packing gland (8), with O-rings, seal (7), piston
assembly (6) with O-ring, spring (4), sleeve (3), and retaining ring (2).
3. Insert the piston rod assembly in the cylinder (1) and secure with the retaining
ring (10).
4. Install the cylinder per Paragraph 6-44.
d. Gar-Kenvon cylinder number 17000. (Refer to Figure 6-15b.)
1. Install new O-rings on the inside and outside of the fitting (8) and on the outside
of the piston (6).
2. To assemble the piston rod assembly, install on the rod (12), in order. the roll
pin (14), return spring retainer washer (13), return spring ( 11), fitting (8) with O-rings. seal (7).
piston (6) with O-ring, spring (4) and sleeve (3). Secure these pieces with the retaining ring (2)
on the end of the rod.
3. Insert the piston rod assembly in the cylinder (1) and secure fitting (8).
4. Install the cylinder per Paragraph 6-44.
Revised: 11/4/83
LANDING GEAR AND BRAKE SYSTEM
2B19
