Piper Cherokee Six Service Manual page 642

UPPER
PANEL
LIGHTS
CLUSTER
LIGHTS
PIPER CHEROKEE SIX SERVICE MANUAL
INSTRUMENT LIGHTS
5 AMP
NAVIGATION LIGHTS
7.5 AMP
CONSOLE
LIGHTS
NOTE: USED ON PA-32R-300,
SERIAL NOS. 32R-76S0392
TO 32 R-780063
INSTRUMENT
LIGHTS
DIMMER
0
PA-32R-300, SERIAL
NOS.32R.7680001 TO 32R-7810068

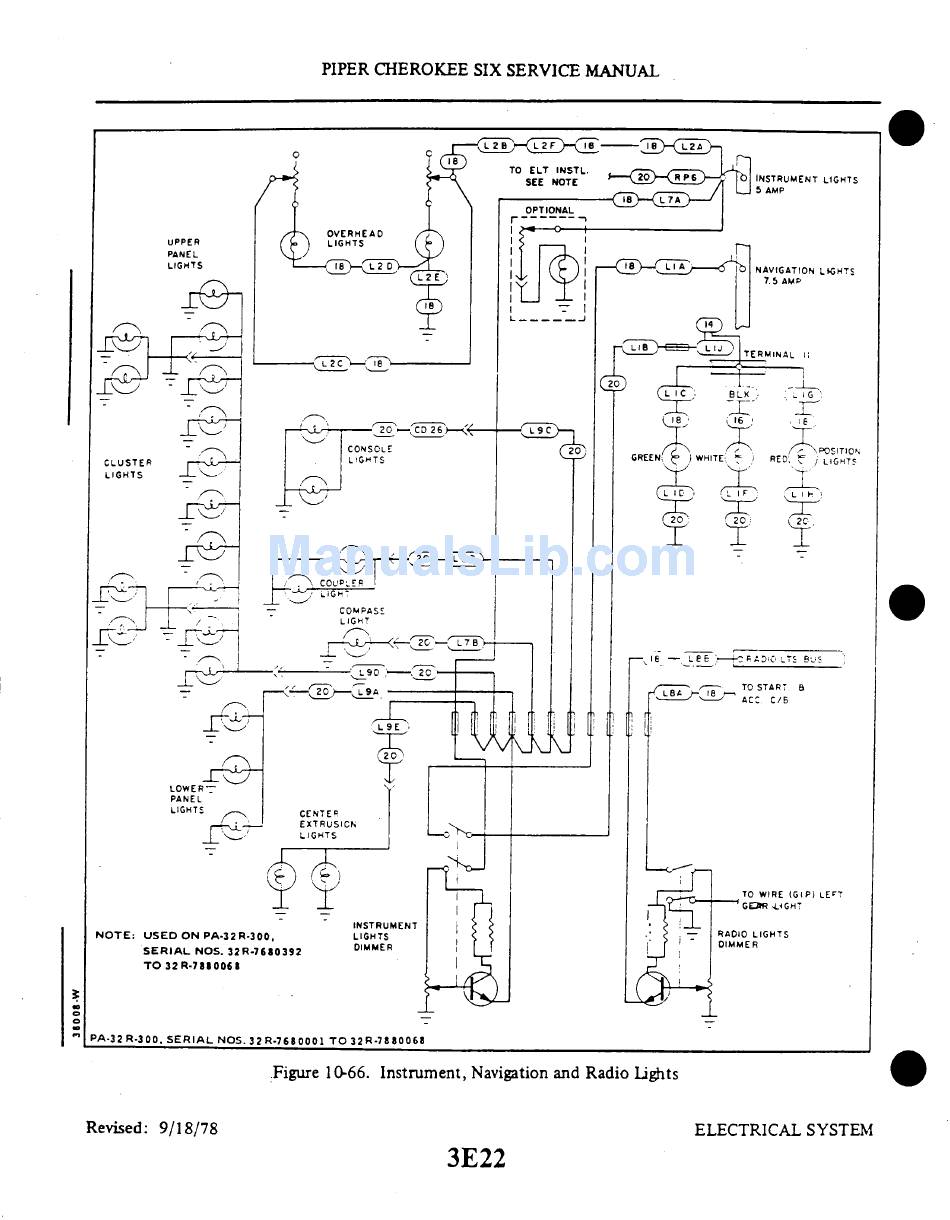

Figure 10-66. Instrument, Navigation and Radio Lights
Revised: 9/18/78
ELECTRICAL SYSTEM
3E22
