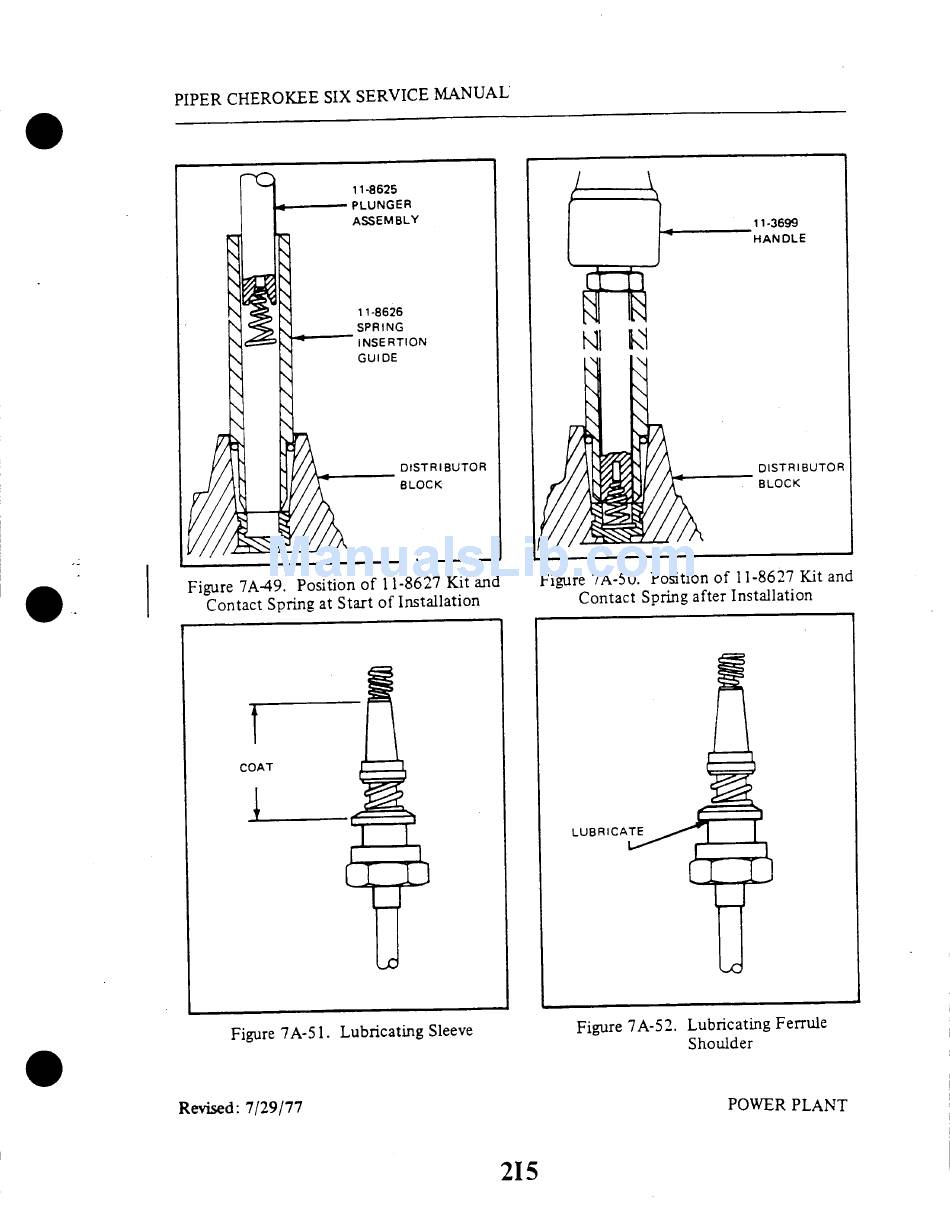

Piper Cherokee Six Service Manual page 449

11-8625
PLUNGER
ASSEMBLY
DISTRIBUTOR
BLOCK
Figure 7A49. Position of 11-8627 Kit and
Contact Spring at Start of Installation
COAT
PIPER CHEROKEE SIX SERVICE MANUAL
11-3699
11-8626
SPRING
INSERTION
GUIDE
DISTRIBUTOR
BLOCK
Figure 7A-50. Position of 11-8627 Kit and
Contact Spring after Installation
LUBRICATE
Figure 7A-51. Lubricating Sleeve
Figure 7A-52. Lubricating Ferrule
Shoulder
Revised: 7/29/77
POWER PLANT
215
