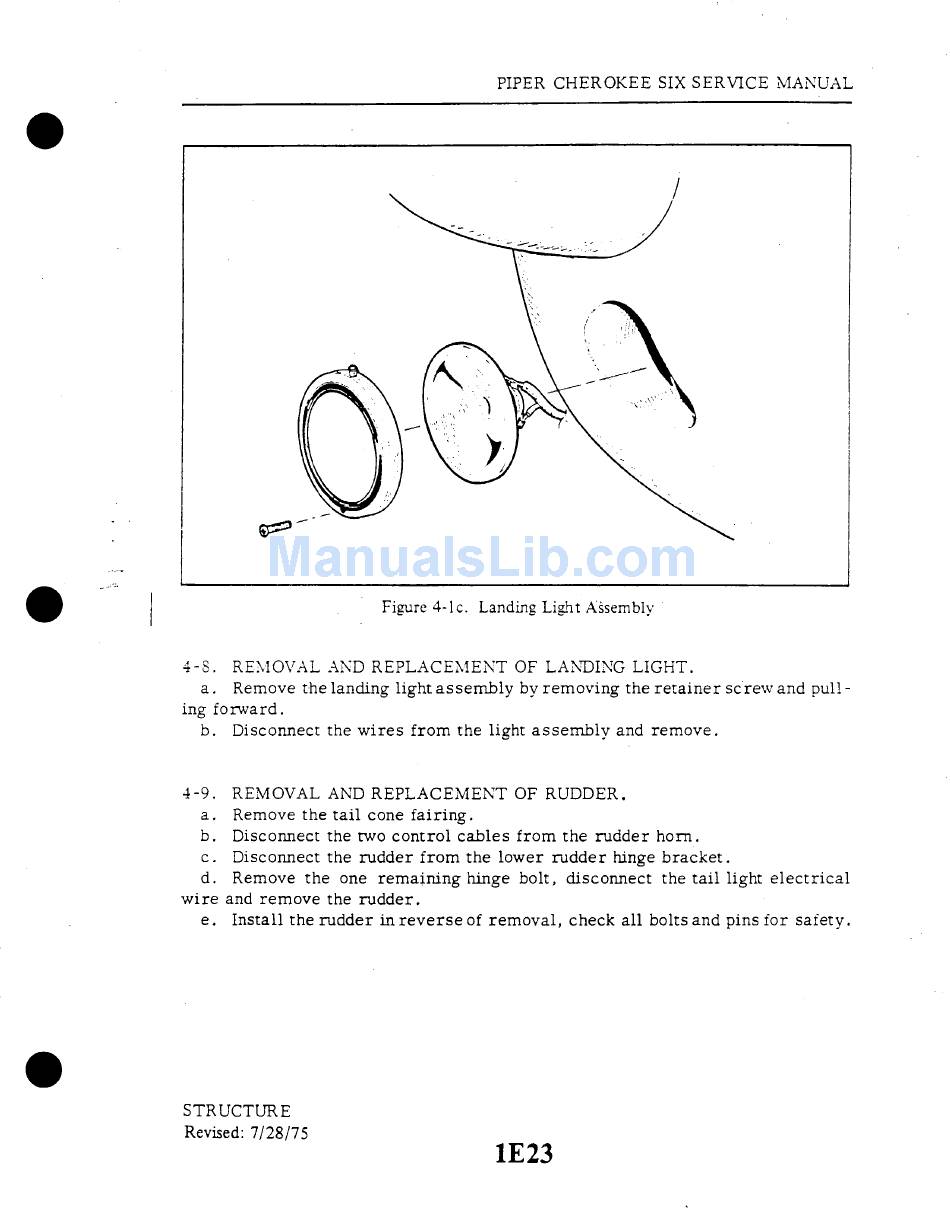

Figure 4-lc. Landing Light Assembly
4-8. REMOVAL AND REPLACEMENT OF LANDING LIGHT.
a. Remove the landing light assembly
by removing the retainer screw and pull-
ing forward.
b. Disconnect the wires from the light assembly
and remove.
4-9. REMOVAL AND REPLACEMENT OF RUDDER.
a. Remove the tail cone fairing.
b. Disconnect the two control cables from the rudder horn.
c. Disconnect the rudder from the lower rudder hinge bracket.
d. Remove the one remaining hinge bolt, disconnect the tail light electrical
wire and remove the rudder.
e. Install the rudder in reverse of removal, check all bolts and pins for safety.
