Electrical System - Piper Cherokee Six Service Manual

EXTERNAL
POWER
RECEPTACLE
ALTERNATR
EXTERNAL
POWER
SOLENOIC
PIPER CHEROKEE SIX SERVICE MANUAL
3102
STARTER
PROTECTOR
15 AMP
STARTER
STARTER
SWITCH
RADIO
INTERFERENCE
FILTER
ALTERNATOP
BATTERY
SWITCH
AMMETER
VOLTAGE
REGULATOR
OVERVOLTAGE RELAY I
SEE NOTE
SEE NOTE
NOTE: GROUND NOT USED IN PA-32R-300

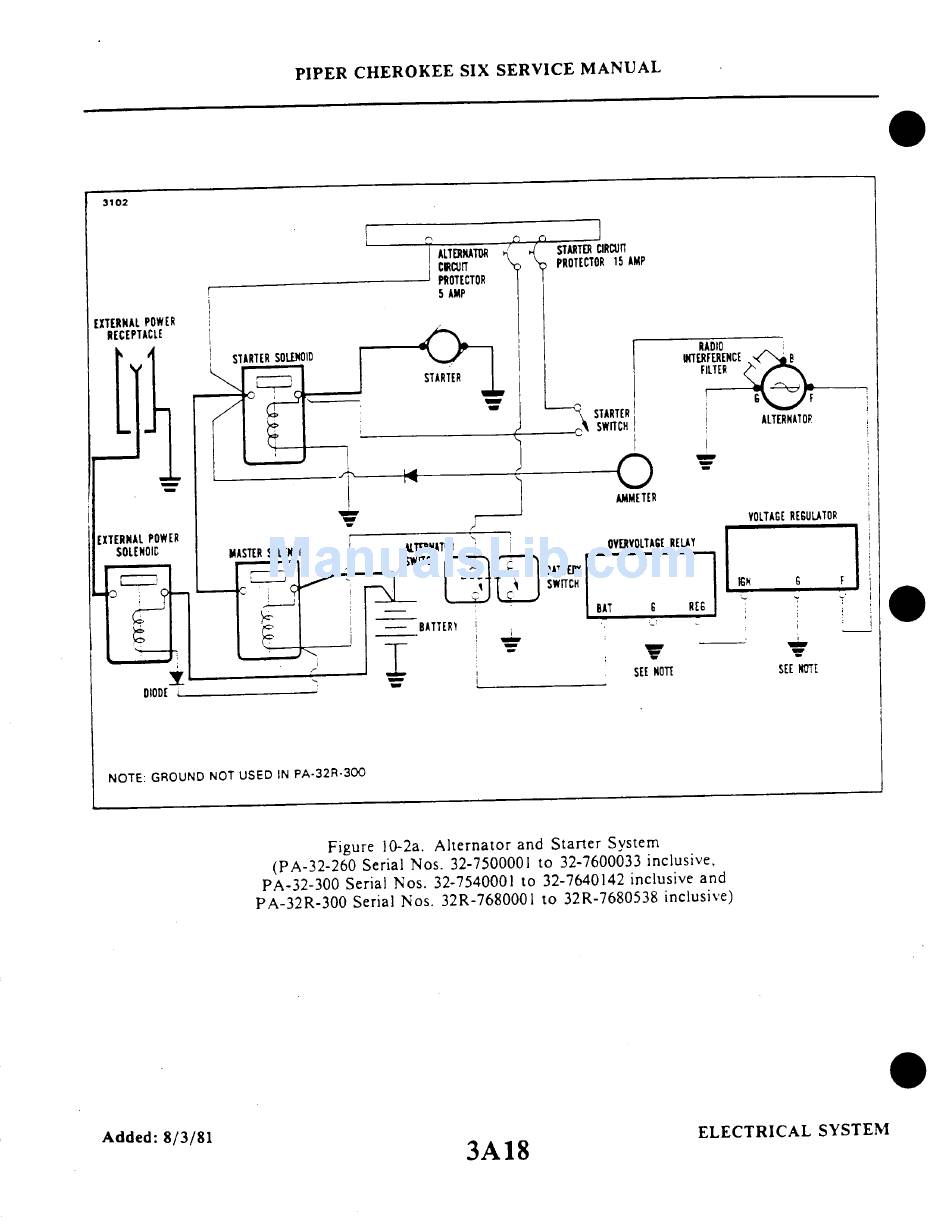

Figure 10-2a. Alternator and Starter System
(PA-32-260 Serial Nos. 32-7500001 to 32-7600033 inclusive,
PA-32-300 Serial Nos. 32-7540001 to 32-7640142 inclusive and
PA-32R-300 Serial Nos. 32R-7680001 to 32R-7680538 inclusive)
ELECTRICAL
SYSTEM
Added: 8/3/81
3A18
