PIPER CHEROKEE SIX SERVICE MANUAL
2603
I. MASTER SWITCH
2. ACCESSORY SWITCHES
3. RADIO COMPASS
4. CLOCK
5. TURN INDICATOR
6. AIRSPEED INDICATOR
7. DIRECTIONAL GYRO
8. ARTIFICIAL HORIZON
9 VERTICAL SPEED INDICATOR
10. ALTIMETER
I . MARKER BEACON
LIGHTS
12. VOR/ILS INDICATOR
15
13. VOR/ILS INDICATOR
14. AUDIO
SELECTOR PANEL
I . MAGNETIC COMPASS
16. NAV/COMM TRANSCEIVERS
17. TRANSPONDER
18.
ADF RADIO
20. CIGAR LIGHTER
29. TACHOMETER
31 CLIMATE CONTROL
CENTER
21. AUTOCONTROL
30. MICROPHONE 38
CIRCUIT BREAKER COVER
22. ENGINE
INST. CLUSTER 31 THROTTLE QUADRANT
23. RADIO COUPLER
32. ALTERNATE AIR
24. TRANSMITTER
SELECTOR 33. NAV/INSTRUMENT
LIGHTS
25. PITCH TRIM SWITCH
34. EGT INDICATOR
26. MAG. AND STARTER SW 35. GYRO
SUCTION GAUGE
27. MANIFOLD
PRESS. GAUGE

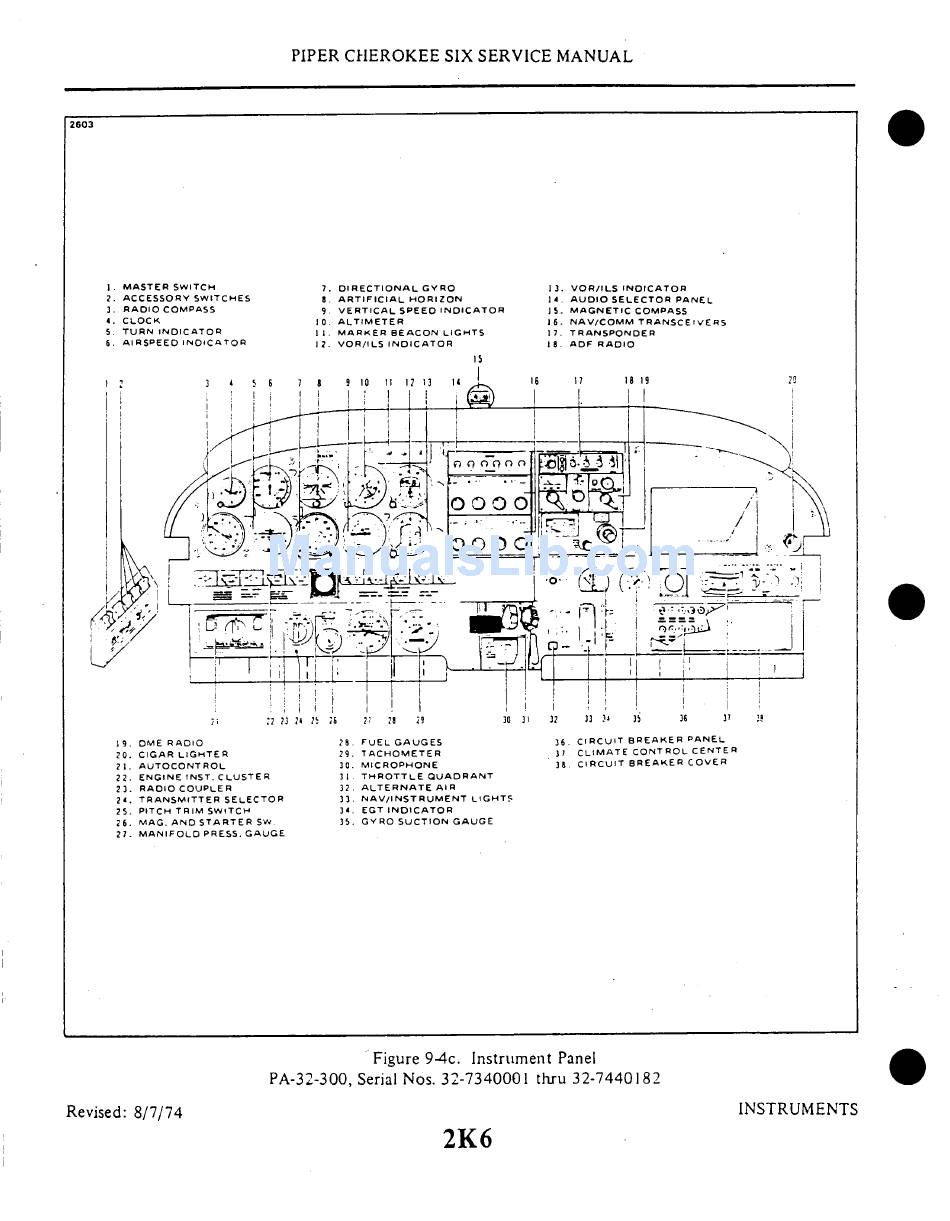

Figure 9-4c. Instrument Panel
PA-32-300, Serial Nos. 32-7340001 thru 32-7440182
Revised: 8/7/74
