Piper Cherokee Six Service Manual page 114

USED ON PA-32S
SEAPLANE MODEL
ONLY
984
.580
PIPER CHEROKEE SIX SERVICE MANUAL
SKETCH A
SECTION A
0
TORQUE TO 50-60 IN. LBS.
SECTION A-A
OLT NAS 1 105-7

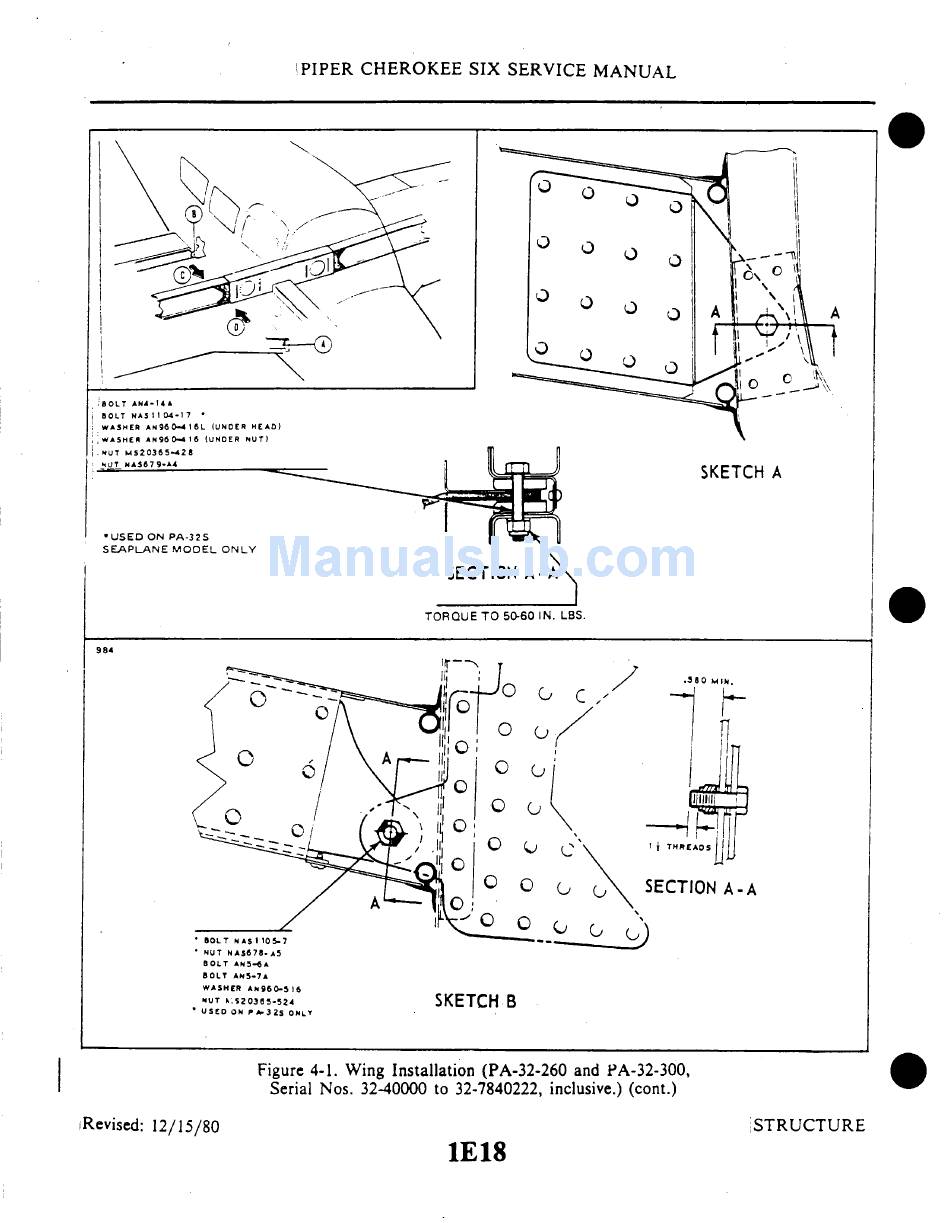

Figure 4-1. Wing Installation (PA-32-260 and PA-32-300,
Serial Nos. 32-40000 to 32-7840222, inclusive.) (cont.)
Revised: 12/15/80
STRUCTURE
1E18
