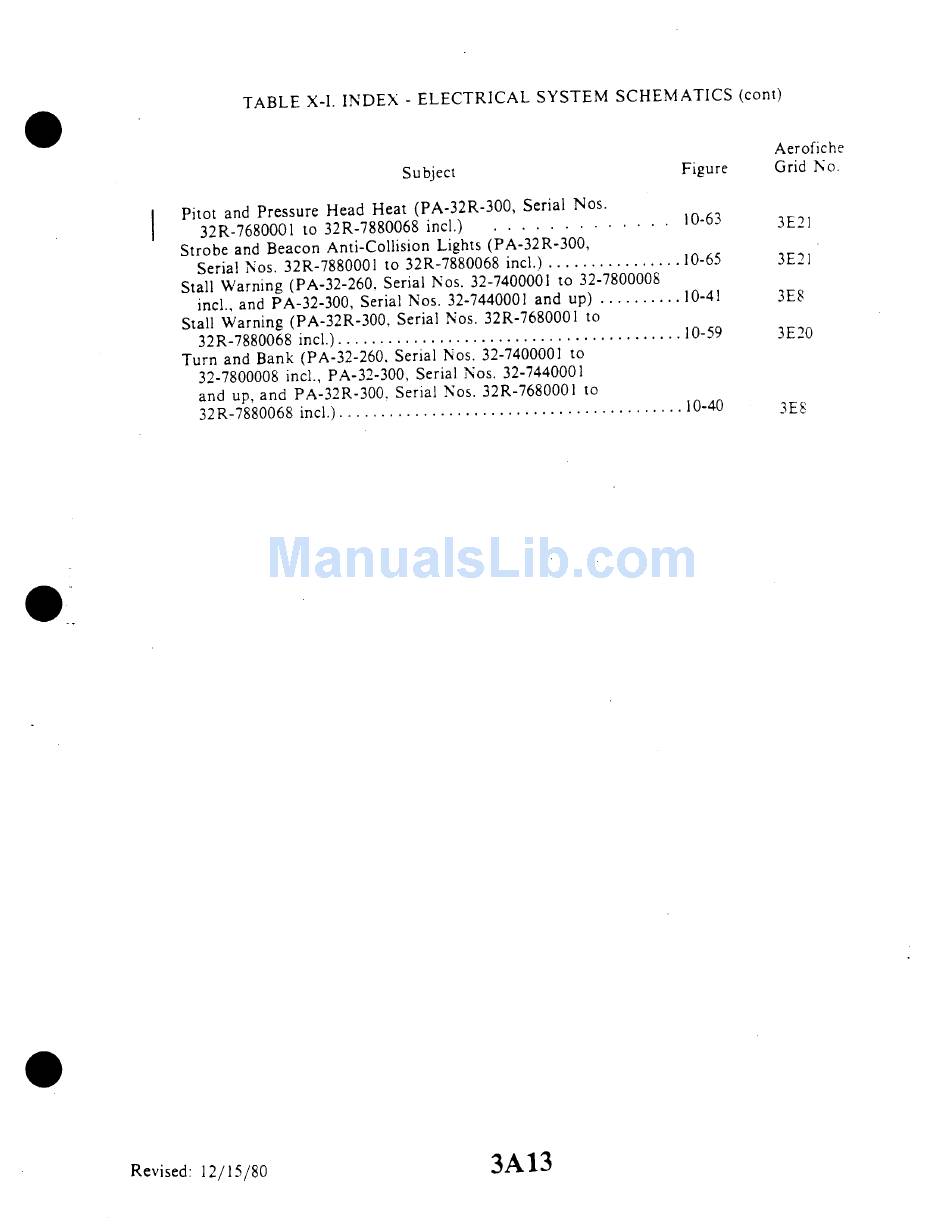

TABLE X-l. INDEX - ELECTRICAL SYSTEM SCHEMATICS (cont)
Aerofiche
Subject
Figure
Grid No.
Pitot and Pressure Head Heat (PA-32R-300, Serial Nos.
32R-7680001 to 32R-7880068 incl.)
. .......
.....
3E21
Strobe and Beacon Anti-Collision Lights (PA-32R-300,
Serial Nos. 32R-7880001 to 32R-7880068 incl.) ...............
10-65
3E21
Stall Warning (PA-32-260. Serial Nos. 32-7400001 to 32-7800008
incl., and PA-32-300, Serial Nos. 32-7440001 and up) .........
10-41
3E8
Stall Warning (PA-32R-300, Serial Nos. 32R-7680001 to
32R-7880068 incl.) .........................................
10-59
3E20
Turn and Bank (PA-32-260, Serial Nos. 32-7400001 to
32-7800008 incl., PA-32-300, Serial Nos. 32-7440001
and up, and PA-32R-300. Serial Nos. 32R-7680001 to
32R-7880068 incl.) .......................................
10-40
3E
Revised: 12/15/80
3A13
